Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDSU101ADIODE GEN PURP 80V 100MA 0603 |
226,719 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Standard | 80 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 50 nA @ 75 V | 3pF @ 0.5V, 1MHz | - | - | Surface Mount | 0603/SOD-523F | 125°C (Max) |
|
1N4007-GDIODE GEN PURP 1KV 1A DO41 |
118,000 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-41 | -55°C ~ 150°C |
|
RB521G-30HFDIODE SCHOTTKY 30V 100MA SOD723 |
22,742 |
|
Datasheet | - | SOD-723 | Tape & Reel (TR) | Active | Schottky | 30 V | 100mA | 350 mV @ 10 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 10 V | - | - | - | Surface Mount | SOD-723 | 125°C (Max) |
|
|
CDSU4148DIODE GEN PURP 75V 150MA 0603 |
161,978 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | 0603/SOD-523F | -40°C ~ 125°C |
|
CDBQR0130RDIODE SCHOTTKY 30V 100MA 0402 |
180,250 |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 30 V | 100mA | 450 mV @ 10 mA | Small Signal =< 200mA (Io), Any Speed | - | 500 nA @ 10 V | - | - | - | Surface Mount | 0402/SOD-923F | 125°C (Max) |
|
CDBQC0130L-HFDIODE SCHOTTKY 30V 100MA 0402C |
81,583 |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 30 V | 100mA | 300 mV @ 10 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 10 V | 20pF @ 1V, 1MHz | - | - | Surface Mount | 0402C/SOD-923F | 125°C (Max) |
|
CDBW140-GDIODE SCHOTTKY 40V 1A SOD123 |
779,137 |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | 120pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123 | 125°C (Max) |
|

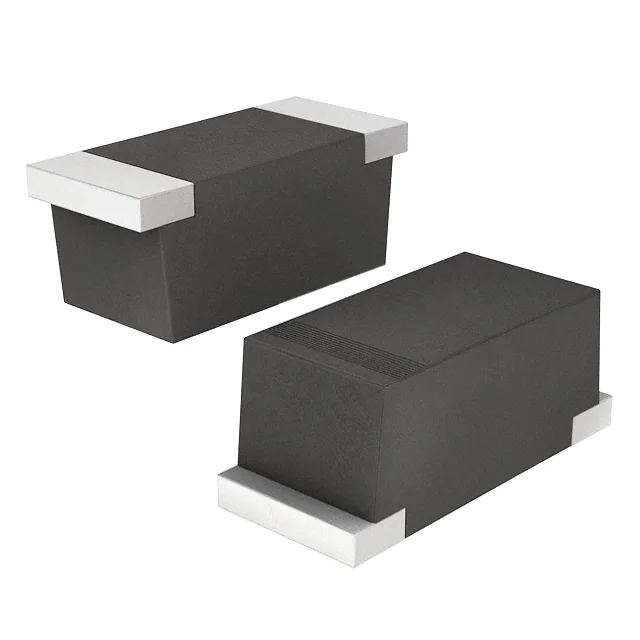

CGRM4004-GDIODE GP 400V 1A MINI SMA/SOD123 |
169,714 |
|
Datasheet | - | SOD-123T | Tape & Reel (TR) | Active | Standard | 400 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 400 V | 15pF @ 4V, 1MHz | - | - | Surface Mount | Mini SMA/SOD-123 | -55°C ~ 150°C |
|
|
CDSP400-GDIODE GEN PURP 80V 100MA SOD723 |
431,758 |
|
Datasheet | - | SOD-723 | Tape & Reel (TR) | Active | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 80 V | 3pF @ 0.5V, 1MHz | - | - | Surface Mount | SOD-723 | 125°C (Max) |
|
CDBM140-GDIODE SCHOT 40V 1A MINISMA |
217,499 |
|
Datasheet | - | SOD-123T | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 120pF @ 4V, 1MHz | - | - | Surface Mount | Mini SMA/SOD-123 | -50°C ~ 125°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
