Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDBU00340DIODE SCHOTTKY 40V 30MA 0603C |
600,220 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 40 V | 30mA | 370 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 40 V | 1.5pF @ 1V, 1MHz | - | - | Surface Mount | 0603C/SOD-523F | 125°C (Max) |
|

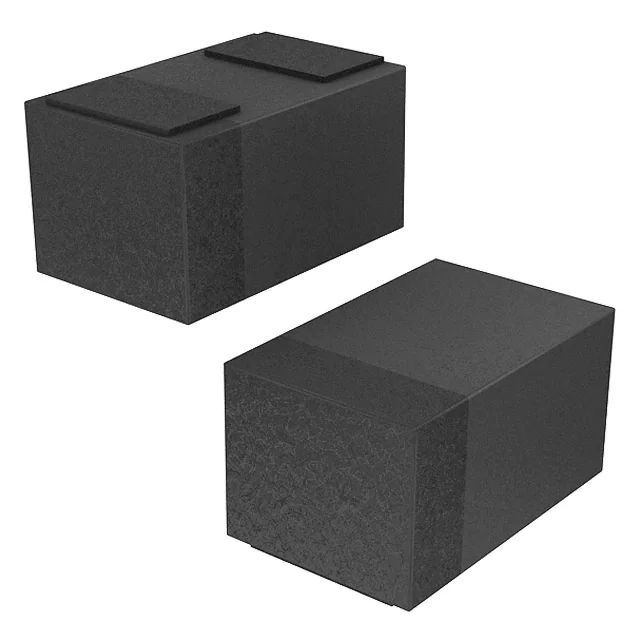

CDSQR4148DIODE GEN PURP 75V 150MA 0402 |
421,102 |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Not For New Designs | Standard | 75 V | 150mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | 0402/SOD-923F | 125°C (Max) |
|
CDBU0520DIODE SCHOTTKY 20V 500MA 0603 |
80,912 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 20 V | 500mA | 470 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 20 V | 100pF @ 0V, 1MHz | - | - | Surface Mount | 0603/SOD-523F | 125°C (Max) |
|
CGRA4001-GDIODE GEN PURP 50V 1A DO214AC |
78,503 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 50 V | - | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
CDBQR40DIODE SCHOTTKY 40V 200MA 0402 |
67,227 |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 30 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | 0402/SOD-923F | 125°C (Max) |
|
|
SS34-HFDIODE SCHOTTKY 40V 3A DO214AC |
60,517 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 550 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 450pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 125°C |
|
|
CDBU0245-HFDIODE SCHOTTKY 45V 200MA 0603C |
48,015 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 45 V | 200mA | 550 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 10 V | 9pF @ 10V, 1MHz | - | - | Surface Mount | 0603C/SOD-523F | -40°C ~ 125°C |
|
|
ACDBA3100-HFDIODE SCHOTTKY 100V 3A DO214AC |
27,143 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 100 V | 100pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
|
CDBU00340-HFDIODE SCHOTTKY 40V 30MA 0603 |
44,177 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 40 V | 30mA | 370 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 40 V | 1.5pF @ 1V, 1MHz | - | - | Surface Mount | 0603/SOD-523F | 125°C (Max) |
|
CGRM4005-GDIODE GP 600V 1A MINI SMA/SOD123 |
34,876 |
|
Datasheet | - | SOD-123T | Tape & Reel (TR) | Not For New Designs | Standard | 600 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 600 V | 15pF @ 4V, 1MHz | - | - | Surface Mount | Mini SMA/SOD-123 | -55°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
