Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACDBCT340-HFDIODE SCHOTTKY 40V 3A 3220 |
8,357 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Last Time Buy | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 180pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | 3220/DO-214AB | -55°C ~ 125°C |
|
CDBD6100-GDIODE SCHOTTKY 100V 6A DPAK |
3,505 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Schottky | 100 V | 6A | 850 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | - | - | - | Surface Mount | DPAK | -40°C ~ 125°C |
|
CDBC580-GDIODE SCHOTTKY 80V 5A DO214AB |
7,644 |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Obsolete | Schottky | 80 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 80 V | - | - | - | Surface Mount | DO-214AB (SMC) | -40°C ~ 125°C |
|
|
CDBD640-GDIODE SCHOTTKY 40V 6A DPAK |
9,511 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 6A | 550 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | - | - | Surface Mount | DPAK | -50°C ~ 125°C |
|
CDBZ31060-HFDIODE SCHOTTKY 60V 10A TO277 |
7,291 |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 60 V | 10A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | - | - | - | Surface Mount | TO-277 (Z3) | -55°C ~ 150°C |
|

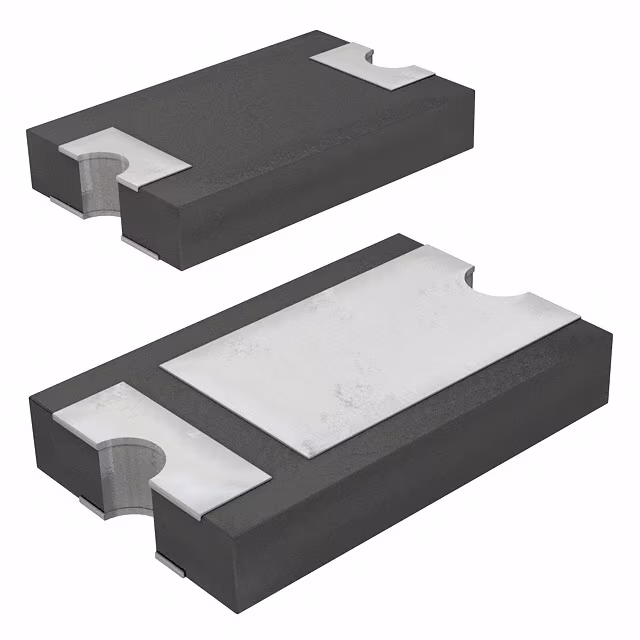

CDBZ5T30100-HFDIODE SCHOTTKY 100V 30A SMC |
4,495 |
|
Datasheet | - | Z5-T | Tape & Reel (TR) | Obsolete | Schottky | 100 V | 30A | 850 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | - | - | - | Surface Mount | SMC (Z5-T) | -55°C ~ 150°C |
|
CDBJSC8650-GDIODE SIL CARB 650V 8A TO220-2 |
4,967 |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 8A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 560pF @ 0V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
CDBJFSC10650-GDIODE SIL CARB 650V 10A TO220F |
7,189 |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 710pF @ 0V, 1MHz | - | - | Through Hole | TO-220F | -55°C ~ 175°C |
|
CDBER0140RDIODE SCHOTTKY 40V 100MA 0503 |
3,822 |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 100mA | 450 mV @ 10 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 10 V | 6pF @ 10V, 1MHz | - | - | Surface Mount | 0503/SOD-723F | 125°C (Max) |
|
CFRM103-GDIODE GP 200V 1A MINI SMA/SOD123 |
7,309 |
|
Datasheet | - | SOD-123T | Tape & Reel (TR) | Obsolete | Standard | 200 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 200 V | - | - | - | Surface Mount | Mini SMA/SOD-123 | -55°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
