Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-T110HF100DIODE GEN PURP 1KV 110A D-55 |
91 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 1000 V | 110A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1000 V | - | - | - | Chassis Mount | D-55 | - |
|
VS-150UR120DDIODE GP REV 1.2KV 150A DO205AA |
56 |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Last Time Buy | Standard, Reverse Polarity | 1200 V | 150A | 1.47 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 180°C |
|

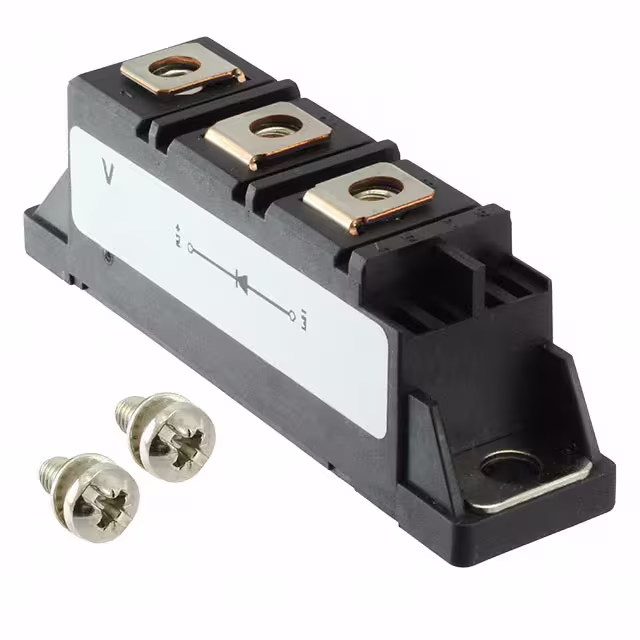

VS-VSKE91/12DIODE GP 1.2KV 100A ADD-A-PAK |
8 |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | Standard | 1200 V | 100A | 1.55 V @ 314 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | - | - | - | Chassis Mount | ADD-A-PAK® | -40°C ~ 150°C |
|
BAT54W-G3-08DIODE SCHOTTKY 30V 200MA SOD123 |
201 |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 10pF @ 1V, 1MHz | - | - | Surface Mount | SOD-123 | 125°C (Max) |
|
VS-10BQ015HM3/5BTDIODE SCHOTTKY 15V 1A DO214AA |
496 |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 15 V | 1A | 330 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 15 V | 390pF @ 5V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -55°C ~ 125°C |
|
EGL41D-E3/97DIODE GEN PURP 200V 1A DO213AB |
488 |
|
Datasheet | SUPERECTIFIER® | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 200 V | 20pF @ 4V, 1MHz | - | - | Surface Mount | DO-213AB | -65°C ~ 175°C |
|
SS34-M3/57TDIODE SCHOTTKY 40V 3A DO214AB |
1,537 |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 125°C |
|
|
ES2C-E3/52TDIODE GEN PURP 150V 2A DO214AA |
1,477 |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 150 V | 2A | 900 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 10 µA @ 150 V | 18pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
~~2.jpg "ESH2PDHM3/84A")
|
ESH2PDHM3/84ADIODE GEN PURP 200V 2A DO220AA |
942 |
|
Datasheet | eSMP® | DO-220AA | Tape & Reel (TR) | Active | Standard | 200 V | 2A | 980 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 200 V | 25pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) | -55°C ~ 175°C |
|
|
SS32-E3/57TDIODE SCHOTTKY 20V 3A DO214AB |
1,156 |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 20 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 20 V | - | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 125°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
