Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V35PW22HM3/IDIODE SCHOTTKY 200V 35A SLIMDPAK |
3,030 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | Schottky | 200 V | 35A | 990 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 200 V | 1320pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SlimDPAK | -40°C ~ 175°C |
|
VS-100BGQ030DIODE SCHOTTKY 30V 100A POWIRTAB |
144 |
|
Datasheet | - | PowerTab™, PowIRtab™ | Bulk | Obsolete | Schottky | 30 V | 100A | 580 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.4 mA @ 30 V | - | - | - | Chassis Mount | PowIRtab™ | -55°C ~ 150°C |
|
|
VS-100BGQ015SCHOTTKY RECT 15V 100A POWLRTAB |
288 |
|
Datasheet | - | PowerTab™, PowIRtab™ | Bulk | Obsolete | Schottky | 15 V | 100A | 460 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 18 mA @ 15 V | - | - | - | Chassis Mount | PowIRtab™ | - |
|
|
VS-80EBU04DIODE GEN PURP 400V 80A POWIRTAB |
234 |
|
Datasheet | FRED Pt® | PowerTab™, PowIRtab™ | Bulk | Obsolete | Standard | 400 V | 80A | 1.3 V @ 80 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 400 V | - | - | - | Chassis Mount | PowIRtab™ | - |
|
VS-175BGQ030HF4DIODE SCHOTTKY 30V 175A POWERTAB |
192 |
|
Datasheet | - | PowerTab® | Tube | Obsolete | Schottky | 30 V | 175A | 590 mV @ 175 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 30 V | 8500pF @ 5V, 1MHz | Automotive | AEC-Q101 | Chassis Mount | PowerTab® | -55°C ~ 150°C |
|

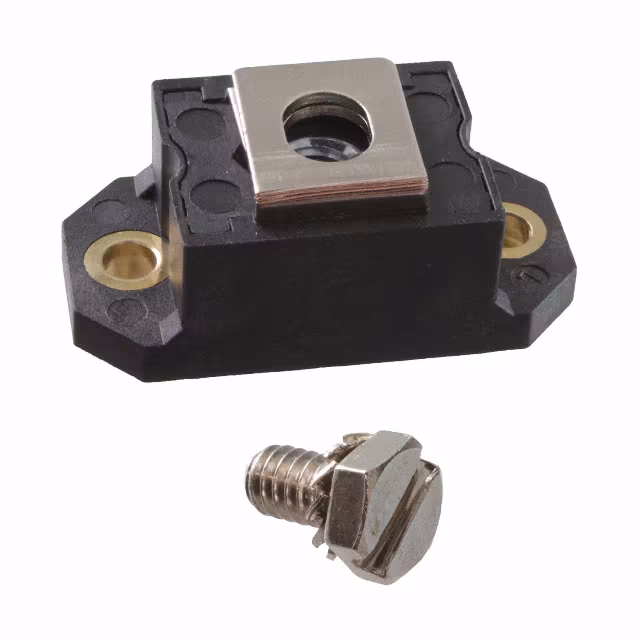

VS-HFA90NH40PBFDIODE GEN PURP 400V 210A D-67 |
187 |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Active | Standard | 400 V | 210A | 1.67 V @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 2 mA @ 400 V | - | - | - | Chassis Mount | D-67 HALF-PAK | -55°C ~ 150°C |
|
VS-T40HF10DIODE GEN PURP 100V 40A D-55 |
58 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 100 V | 40A | - | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 100 V | - | - | - | Chassis Mount | D-55 | - |
|
VS-150U120DDIODE GP 1.2KV 150A DO205AA |
27 |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Last Time Buy | Standard | 1200 V | 150A | 1.47 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 180°C |
|
|
VS-T70HF40DIODE GEN PURP 400V 70A D-55 |
53 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 400 V | 70A | - | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 400 V | - | - | - | Chassis Mount | D-55 | - |
|
|
VS-T70HFL60S02DIODE GEN PURP 600V 70A D-55 |
70 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 600 V | 70A | - | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 100 µA @ 600 V | - | - | - | Chassis Mount | D-55 | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
