Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6843DIODE SCHOTTKY 100V 10A U3 |
6,496 |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | Schottky | 100 V | 10A | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Surface Mount | U3 (SMD-0.5) | -65°C ~ 150°C |
|

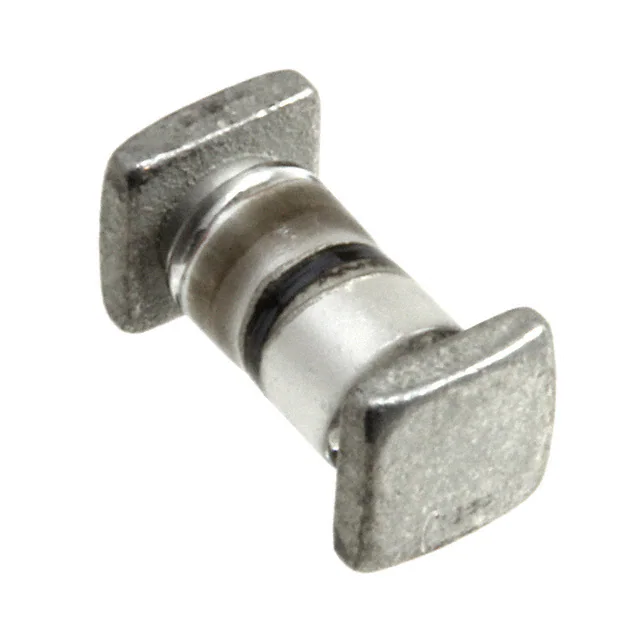

JANS1N6621US/TRDIODE GP 400V 1.2A A SQ-MELF |
2,581 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 400 V | 1.2A | 1.6 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | - | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JANTX1N6844U3DIODE SCHOTTKY 100V 15A U3 |
3,342 |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | Schottky | 100 V | 15A | 900 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 600pF @ 5V, 1MHz | Military | MIL-PRF-19500/679 | Surface Mount | U3 (SMD-0.5) | -65°C ~ 150°C |
|
|
JANTX1N6844U3/TRDIODE SCHOTTKY 100V 15A U3 |
8,460 |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 100 V | 15A | 900 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 600pF @ 5V, 1MHz | Military | MIL-PRF-19500/679 | Surface Mount | U3 (SMD-0.5) | -65°C ~ 150°C |
|
|
MNS1N6844U3DIODE SCHOTTKY 100V 20A U3 |
4,001 |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | Schottky | 100 V | 20A | 1 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 600pF @ 10V, 1MHz | - | - | Surface Mount | U3 (SMD-0.5) | -55°C ~ 175°C |
|
|
1N412BDIODE GEN PURP 100V 100A DO205AA |
7,177 |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 100 V | 100A | 1.2 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 100 V | - | - | - | Stud Mount | DO-205AA (DO-8) | -65°C ~ 200°C |
|
|
SBR6025DIODE SCHOTTKY 25V 60A DO5 |
5,883 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 25 V | 60A | 600 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 25 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -55°C ~ 150°C |
|
|
SBR6050DIODE SCHOTTKY 50V 60A DO5 |
5,883 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 50 V | 60A | 700 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 50 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -55°C ~ 150°C |
|
|
SBR60100PPOWER SCHOTTKY |
9,766 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SBR6040RDIODE SCHOTTKY 40V 60A DO203AB |
5,182 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky, Reverse Polarity | 40 V | 60A | 600 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 40 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
