Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANS1N5802URS/TRDIODE GP 60V 1A A SQ-MELF |
9,765 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 60 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
|
JANS1N5804URS/TRUFR,FRR |
9,090 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|

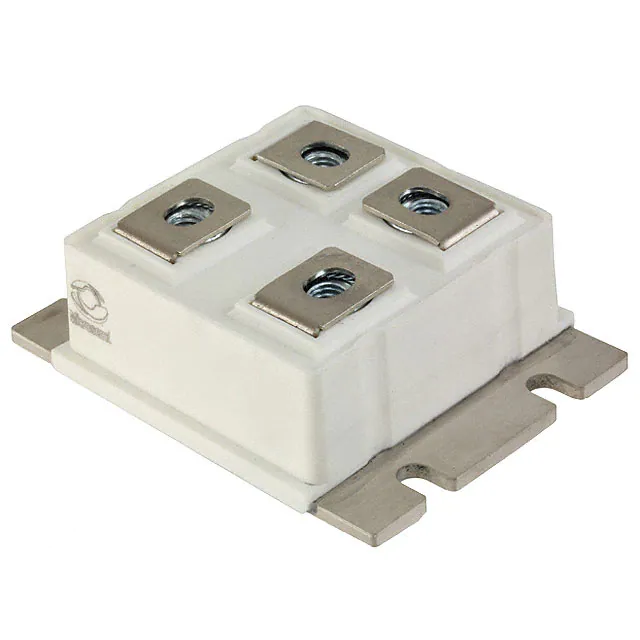

APTDF430U100GDIODE GEN PURP 1KV 500A LP4 |
9,502 |
|
Datasheet | - | LP4 | Bulk | Active | Standard | 1000 V | 500A | 2.3 V @ 500 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 2.5 mA @ 1000 V | - | - | - | Chassis Mount | LP4 | - |
|
|
1N6844SCHOTTKY RECTIFIER |
3,048 |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | Schottky | 100 V | 20A | 1 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | 600pF @ 10V, 1MHz | - | - | Surface Mount | U3 (SMD-0.5) | -55°C ~ 175°C |
|
|
JANTX1N486B/TRDIODE GP REV 225V 200MA DO7 |
4,693 |
|
Datasheet | - | DO-204AA, DO-7, Axial | Tape & Reel (TR) | Active | Standard, Reverse Polarity | 225 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 225 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-7 | -65°C ~ 200°C |
|
SBR8050DIODE SCHOTTKY 80A 50V DO5 |
9,521 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 50 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 50 V | - | - | - | Chassis, Stud Mount | - | - |
|
|
SBR8040DIODE SCHOTTKY 40V 80A DO5 |
8,025 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 40 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 175°C |
|
|
SBR8045DIODE SCHOTTKY 45V 80A DO5 |
9,560 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 45 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 175°C |
|
|
SBR8060DIODE SCHOTTKY 60V 80A DO5 |
5,727 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 60 V | 80A | 770 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | 2000pF @ 5V, 1MHz | - | - | Stud Mount | DO-5 (DO-203AB) | -55°C ~ 175°C |
|
|
JAN1N5816RDIODE GEN PURP 150V 20A DO203AA |
9,107 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 150 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 150 V | 300pF @ 10V, 1MHz | Military | MIL-PRF-19500/478 | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
