Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N5616USDIODE GEN PURP 400V 1A D-5A |
7,107 |
|
Datasheet | - | SQ-MELF, A | Bulk | Discontinued at Digi-Key | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 400 V | - | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 200°C |
|
JANTXV1N4944DIODE GEN PURP 400V 1A AXIAL |
9,898 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 400 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | 35pF @ 12V, 1MHz | Military | MIL-PRF-19500/359 | Through Hole | A, Axial | -65°C ~ 175°C |
|
JAN1N5554USDIODE GEN PURP 1KV 5A D-5B |
2,169 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 1000 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/420 | Surface Mount | D-5B | -65°C ~ 175°C |
|
|
JAN1N5553USDIODE GEN PURP 800V 3A D-5B |
3,151 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 800 V | 3A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | Military | MIL-PRF-19500/420 | Surface Mount | D-5B | -65°C ~ 175°C |
|

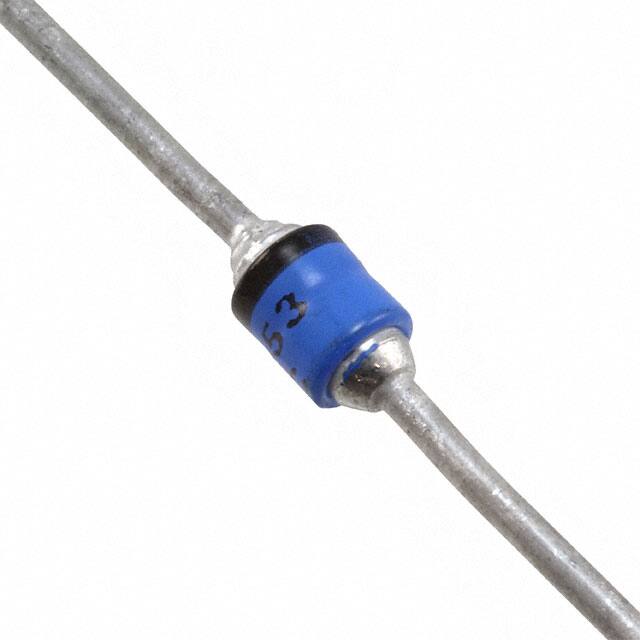

1N5419E3DIODE GEN PURP 500V 3A AXIAL |
7,250 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 µA @ 500 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTXV1N5418/TRDIODE GEN PURP 400V 3A |
5,101 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
1N5554US/TRDIODE GEN PURP 1KV 3A D-5B |
5,235 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 1000 V | 3A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 1000 V | - | - | - | Surface Mount | D-5B | -65°C ~ 175°C |
|
JANTX1N5623US/TRDIODE GEN PURP 1KV 1A D-5A |
8,874 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 500 nA @ 1 V | 15pF @ 12V, 1MHz | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
JAN1N5622USDIODE GEN PURP 1KV 1A D-5A |
8,689 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1000 V | - | Military | MIL-PRF-19500/427 | Surface Mount | D-5A | -65°C ~ 200°C |
|
|
1N5804USE3DIODE GEN PURP 100V 1A A SQ-MELF |
9,459 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
