Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5805USDIODE GEN PURP 135V 1A D-5A |
2,755 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 135 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 125 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|

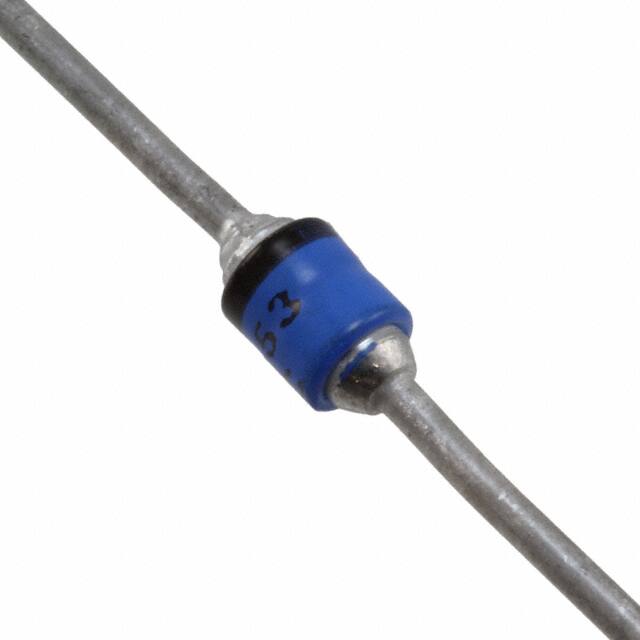

JANTXV1N5550DIODE GEN PURP 200V 5A AXIAL |
9,635 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 200 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 200 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JAN1N5189/TRDIODE GEN PURP 500V 3A B AXIAL |
5,911 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 µA @ 500 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JAN1N5188/TRDIODE GEN PURP 400V 3A AXIAL |
6,652 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 2 µA @ 400 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JAN1N3595AUSDIODE GEN PURP 125V 150MA DO35 |
5,525 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 125 V | 150mA | 920 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 2 nA @ 125 V | - | Military | MIL-PRF-19500/241 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
JAN1N3595USDIODE GEN PURP 125V 4A B SQ-MELF |
5,671 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 125 V | 4A | 1 V @ 200 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | - | - | Military | MIL-PRF-19500/241 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
|
JANTXV1N5186DIODE GEN PURP 100V 3A AXIAL |
9,779 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 100 V | 3A | 1.5 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | - | 2 µA @ 100 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTXV1N5619USDIODE GEN PURP 600V 1A D-5A |
5,665 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 600 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 500 nA @ 600 V | - | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
1N6641USDIODE GEN PURP 50V 300MA D-5D |
5,544 |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 50 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 100 nA @ 50 V | - | - | - | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
JANTX1N5802DIODE GEN PURP 50V 1A AXIAL |
8,722 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | A, Axial | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
