Diode Arrays

Explore Diode Arrays parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
VS-UFH280FA30 DIODE MODULE GP 300V 160A SOT227 Vishay General Semiconductor - Diodes Division	126	RFQ	Datasheet	FRED Pt®	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Standard	300 V	160A (DC)	1.27 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	58 ns	100 µA @ 300 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
STTH61R04TV2 DIODE MODULE GP 400V 30A ISOTOP STMicroelectronics	378	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Standard	400 V	30A	1.45 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	65 ns	15 µA @ 400 V	150°C (Max)	-	-	Chassis Mount	ISOTOP®
VS-UFL80FA60 DIODE MODULE GP 600V 65A SOT-227 Vishay General Semiconductor - Diodes Division	136	RFQ	Datasheet	FRED Pt®	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	600 V	65A (DC)	1.49 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	115 ns	50 µA @ 600 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
VS-UFB250FA60 DIODE MODULE GP 600V 168A SOT227 Vishay General Semiconductor - Diodes Division	229	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Standard	600 V	168A	1.19 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	166 ns	50 µA @ 600 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
VS-UFB130FA40 DIODE MODULE GP 400V 65A SOT-227 Vishay General Semiconductor - Diodes Division	131	RFQ	Datasheet	FRED Pt®	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	400 V	65A (DC)	1.37 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	86 ns	50 µA @ 400 V	-	-	-	Chassis Mount	SOT-227
STTH10002TV1 DIODE MODULE GP 200V 50A ISOTOP STMicroelectronics	258	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Standard	200 V	50A	1 V @ 50 A	Fast Recovery =< 500ns, > 200mA (Io)	65 ns	50 µA @ 200 V	150°C (Max)	-	-	Chassis Mount	ISOTOP®
MDD26-16N1B DIODE MOD GP 1600V 36A TO-240AA IXYS	260	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Series Connection	Standard	1600 V	36A	1.38 V @ 80 A	Standard Recovery >500ns, > 200mA (Io)	-	10 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
VS-U5FH300FA60 DIODE MODULE GP 600V 150A SOT227 Vishay General Semiconductor - Diodes Division	243	RFQ	Datasheet	FRED Pt®	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	600 V	150A (DC)	1.7 V @ 150 A	Fast Recovery =< 500ns, > 200mA (Io)	76 ns	100 µA @ 600 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
VS-U5FX240FA120 DIODE MOD GP 1200V 120A SOT-227 Vishay General Semiconductor - Diodes Division	136	RFQ	Datasheet	FRED Pt®	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	120A (DC)	3.33 V @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	60 ns	160 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227

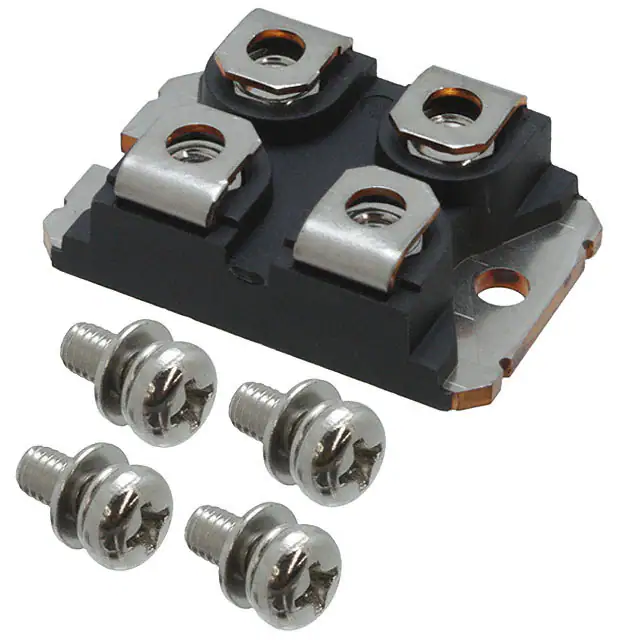

VS-UFB280FA40 DIODE MODULE GP 400V 170A SOT227 Vishay General Semiconductor - Diodes Division	153	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	400 V	170A (DC)	1.24 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	93 ns	50 µA @ 400 V	-	-	-	Chassis Mount	SOT-227
STTH20002TV1 DIODE MODULE GP 200V 120A ISOTOP STMicroelectronics	133	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Standard	200 V	120A	1.05 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	100 µA @ 200 V	150°C (Max)	-	-	Chassis Mount	ISOTOP®
APT2X61D100J DIODE MODULE GP 1000V 55A ISOTOP Microchip Technology	775	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1000 V	55A	2.5 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	280 ns	250 µA @ 1000 V	-	-	-	Chassis Mount	ISOTOP®
APT2X101D40J DIODE MODULE GP 400V 100A ISOTOP Microchip Technology	237	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	400 V	100A	1.5 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	500 µA @ 400 V	-55°C ~ 175°C	-	-	Chassis Mount	ISOTOP®
C4D40120D DIODE ARR SIC 1200V 56.5A TO2473 Wolfspeed, Inc.	550	RFQ	Datasheet	Z-Rec®	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	56.5A (DC)	1.8 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
GD2X30MPS12N DIODE MOD SIC 1200V 52A SOT-227 GeneSiC Semiconductor	220	RFQ	Datasheet	SiC Schottky MPS™	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	1200 V	52A (DC)	-	No Recovery Time > 500mA (Io)	-	-	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
GD2X60MPS06N DIODE MOD SIC 650V 70A SOT-227 GeneSiC Semiconductor	369	RFQ	Datasheet	SiC Schottky MPS™	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	650 V	70A (DC)	1.8 V @ 60 A	No Recovery Time > 500mA (Io)	0 ns	10 µA @ 650 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
MD16110A-DKM2MM DIODE MODULE GP 1600V 110A A3 Littelfuse Inc.	140	RFQ	Datasheet	-	A-3 Module	Bulk	Active	1 Pair Common Cathode	Standard	1600 V	110A	1.6 V @ 350 A	Standard Recovery >500ns, > 200mA (Io)	-	500 µA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	A3
GSXD160A010S1-D3 DIODE MOD SCHOT 100V 160A SOT227 SemiQ	166	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Schottky	100 V	160A	840 mV @ 160 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 100 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227
APT2X101D120J DIODE MODULE GP 1200V 93A ISOTOP Microchip Technology	395	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	93A	2.5 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	420 ns	250 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	ISOTOP®
163CMQ100 DIODE MODULE SCHOT 100V TO-249AA SMC Diode Solutions	168	RFQ	Datasheet	-	TO-249AA	Bulk	Active	1 Pair Common Cathode	Schottky	100 V	-	980 mV @ 80 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.5 mA @ 100 V	-55°C ~ 175°C	-	-	Chassis Mount	TO-249AA

FAQ

Frequently Asked Questions

What are Diode Arrays components used for?

Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Diode Arrays part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
