Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
DSP25-12A DIODE ARRAY GP 1200V 28A TO247AD IXYS	1,410	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Series Connection	Standard	1200 V	28A	1.6 V @ 55 A	Standard Recovery >500ns, > 200mA (Io)	-	2 mA @ 1200 V	-40°C ~ 180°C	-	-	Through Hole	TO-247AD
STPS80H100CWLY DIODE ARRAY SCHOT 100V 40A TO247 STMicroelectronics	301	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	Schottky	100 V	40A	820 mV @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 µA @ 100 V	-40°C ~ 175°C	Automotive	AEC-Q101	Through Hole	TO-247 Long Leads
VS-63CPQ100-N3 DIODE ARR SCHOT 100V 30A TO247AC Vishay General Semiconductor - Diodes Division	362	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	Schottky	100 V	30A	920 mV @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	-	300 µA @ 100 V	175°C (Max)	-	-	Through Hole	TO-247AC
VS-60CPQ150-N3 DIODE ARR SCHOT 150V 30A TO247AC Vishay General Semiconductor - Diodes Division	490	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	Schottky	150 V	30A	830 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 150 V	-55°C ~ 175°C	-	-	Through Hole	TO-247AC
STPSC10TH13TI DIODE ARRAY SIC 650V 10A TO220AB STMicroelectronics	859	RFQ	Datasheet	-	TO-220-3	Tube	Active	1 Pair Series Connection	SiC (Silicon Carbide) Schottky	650 V	10A	1.75 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	100 µA @ 650 V	150°C (Max)	-	-	Through Hole	TO-220AB Insulated
STTH6002CPI DIODE ARRAY GP 200V 30A TOP-3I STMicroelectronics	594	RFQ	Datasheet	-	TOP-3 Insulated	Tube	Active	1 Pair Common Cathode	Standard	200 V	30A	1.05 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	27 ns	30 µA @ 200 V	175°C (Max)	-	-	Through Hole	TOP-3I
DSEC60-06A DIODE ARRAY GP 600V 30A TO-247AD IXYS	1,244	RFQ	Datasheet	HiPerFRED™	TO-247-3	Tube	Active	1 Pair Common Cathode	Standard	600 V	30A	1.6 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	250 µA @ 600 V	-55°C ~ 175°C	-	-	Through Hole	TO-247AD
DSP45-16AR DIODE ARRAY GP 1600V ISOPLUS247 IXYS	817	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Series Connection	Standard	1600 V	43A	1.23 V @ 40 A	Standard Recovery >500ns, > 200mA (Io)	-	3 mA @ 1600 V	-40°C ~ 175°C	-	-	Through Hole	ISOPLUS247™
C3D20060D DIODE ARR SIC 600V 27.5A TO247-3 Wolfspeed, Inc.	213	RFQ	Datasheet	Z-Rec®	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	600 V	27.5A (DC)	1.8 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	50 µA @ 600 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
DSEC60-12A DIODE ARRAY GP 1200V 30A TO247AD IXYS	341	RFQ	Datasheet	HiPerFRED™	TO-247-3	Tube	Active	1 Pair Common Cathode	Standard	1200 V	30A	2.74 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	40 ns	250 µA @ 1200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247AD
VS-HFA50PA60C-N3 DIODE ARRAY GP 600V 25A TO-247AC Vishay General Semiconductor - Diodes Division	511	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	Standard	600 V	25A	1.7 V @ 25 A	Fast Recovery =< 500ns, > 200mA (Io)	23 ns	20 µA @ 600 V	-55°C ~ 150°C	Automotive	AEC-Q101	Through Hole	TO-247AC
E3D30065D DIODE ARRAY SIC 650V 42A TO247-3 Wolfspeed, Inc.	425	RFQ	Datasheet	E-Series	TO-247-3	Tube	Last Time Buy	1 Pair Common Anode	SiC (Silicon Carbide) Schottky	650 V	42A	1.8 V @ 16 A	No Recovery Time > 500mA (Io)	0 ns	95 µA @ 650 V	-55°C ~ 175°C	Automotive	-	Through Hole	TO-247-3
STPSC40H12CWL DIODE ARR SIC 1200V 38A TO247-3 STMicroelectronics	408	RFQ	Datasheet	ECOPACK®	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	38A	1.5 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	120 µA @ 1200 V	-40°C ~ 175°C	-	-	Through Hole	TO-247-3
C4D20120D DIODE ARR SIC 1200V 34A TO247-3 Wolfspeed, Inc.	530	RFQ	Datasheet	Z-Rec®	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	34A (DC)	1.8 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
82CNQ030SL DIODE ARR SCHOTT 30V 40A PRM2-SL SMC Diode Solutions	2,215	RFQ	Datasheet	-	PRM2-SL	Bulk	Active	1 Pair Common Cathode	Schottky	30 V	40A	550 mV @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	5 mA @ 30 V	-55°C ~ 150°C	-	-	Surface Mount	PRM2-SL
GD2X30MPS12D DIODE ARR SIC 1200V 55A TO247-3 GeneSiC Semiconductor	569	RFQ	Datasheet	SiC Schottky MPS™	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	55A (DC)	1.8 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 µA @ 1200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
VS-U5FH120FA120 DIODE MODULE GP 1200V 60A SOT227 Vishay General Semiconductor - Diodes Division	476	RFQ	Datasheet	FRED Pt®	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	60A (DC)	2.5 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	71 ns	80 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227

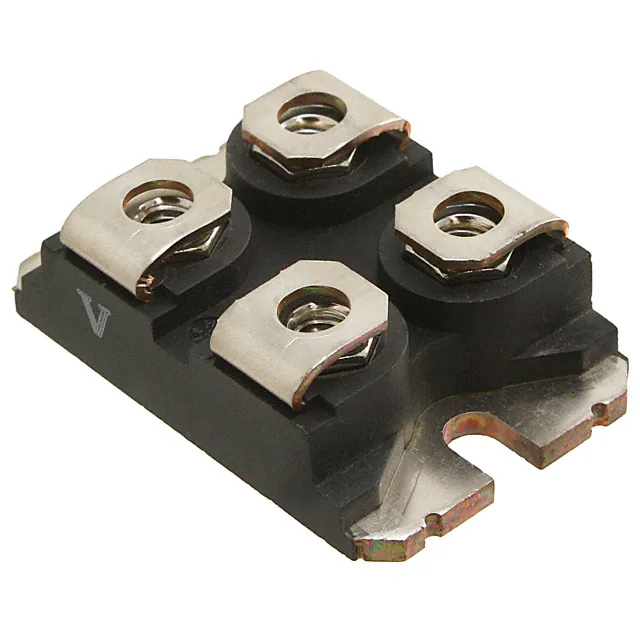

VS-UFB80FA20 DIODE MODULE GP 200V 40A SOT-227 Vishay General Semiconductor - Diodes Division	168	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Standard	200 V	40A (DC)	1.08 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	34 ns	50 µA @ 200 V	-	-	-	Chassis Mount	SOT-227
83CNQ100 DIODE MODULE SCHOT 100V 40A PRM2 SMC Diode Solutions	1,254	RFQ	Datasheet	-	PRM2	Bulk	Active	1 Pair Common Cathode	Schottky	100 V	40A	1 V @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.5 mA @ 100 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM2
85CNQ015 DIODE MODULE SCHOTT 15V 40A PRM2 SMC Diode Solutions	532	RFQ	Datasheet	-	PRM2	Bulk	Active	1 Pair Common Cathode	Schottky	15 V	40A	450 mV @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 15 V	-55°C ~ 125°C	-	-	Chassis Mount	PRM2
