Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRKD166/12DIODE MOD GP 1200V 165A MOD |
6,954 |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1200 V | 165A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | - | - | - | Chassis Mount | Module |
|
|
VS-409CNQ135PBFDIODE MOD SCHOTTKY 135V TO-244AB |
8,151 |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 135 V | 400A | 1.46 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 135 V | - | - | - | Chassis Mount | TO-244AB |
|
|
VS-401CNQ040PBFDIODE MOD SCHOTT 40V 40A TO244AB |
5,600 |
|
Datasheet | - | TO-244AB | Tray | Active | 1 Pair Common Cathode | Schottky | 40 V | 40A | 590 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 40 V | 150°C (Max) | - | - | Chassis Mount | TO-244AB |
|
VS-HFA70EA120DIODE MODULE GP 1200V 35A SOT227 |
3,696 |
|
Datasheet | HEXFRED® | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 1200 V | 35A (DC) | 3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 145 ns | 75 µA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
|
IRKD166/16DIODE MOD GP 1600V 165A MOD |
5,558 |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 165A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | - | - | Chassis Mount | Module |
|
|
IRKJ166/16DIODE MOD GP 1600V 165A MOD |
5,827 |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Common Anode | Standard | 1600 V | 165A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | - | - | Chassis Mount | Module |
|
|
IRKC236/04DIODE MODULE GP 400V 230A MODULE |
2,813 |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 230A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | - | - | - | Chassis Mount | Module |
|

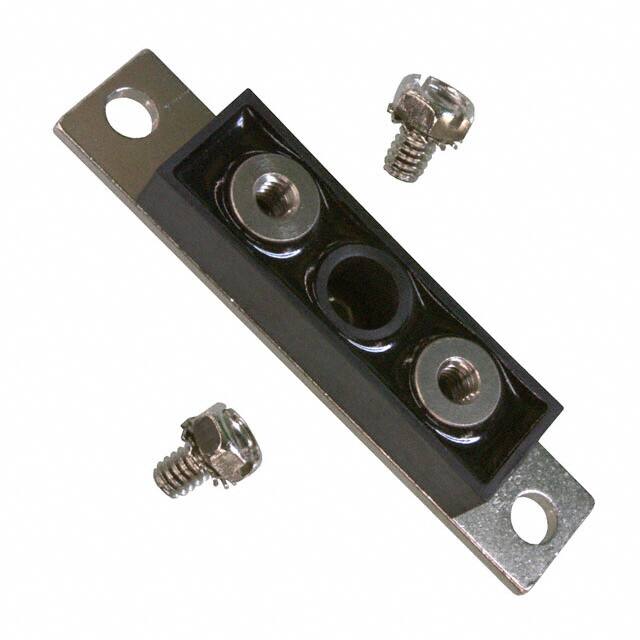

HFA240NJ40DDIODE MOD GP 400V 244A TO244AB |
9,544 |
|
Datasheet | HEXFRED® | TO-244AB Isolated Tab | Bulk | Obsolete | 1 Pair Series Connection | Standard | 400 V | 244A (DC) | 1.5 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 9 µA @ 400 V | - | - | - | Chassis Mount | TO-244AB (Isolated) |
|
|
HFA240NJ40CDIODE MOD GP 400V 244A TO-244AB |
5,279 |
|
Datasheet | HEXFRED® | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 244A (DC) | 1.5 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 9 µA @ 400 V | - | - | - | Chassis Mount | TO-244AB |
|
|
IRKD236/04DIODE MODULE GP 400V 230A MODULE |
7,550 |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Series Connection | Standard | 400 V | 230A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | - | - | - | Chassis Mount | Module |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
