Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HFA160MD40CDIODE MOD GP 400V 142A TO-244AB |
2,282 |
|
Datasheet | HEXFRED® | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 142A (DC) | 1.2 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 110 ns | 9 µA @ 400 V | - | - | - | Chassis Mount | TO-244AB |
|
HFA200MD40DDIODE MOD GP 400V 172A TO-244AB |
6,295 |
|
Datasheet | HEXFRED® | TO-244AB | Bulk | Obsolete | 1 Pair Series Connection | Standard | 400 V | 172A (DC) | 1.2 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 12 µA @ 400 V | - | - | - | Chassis Mount | TO-244AB |
|

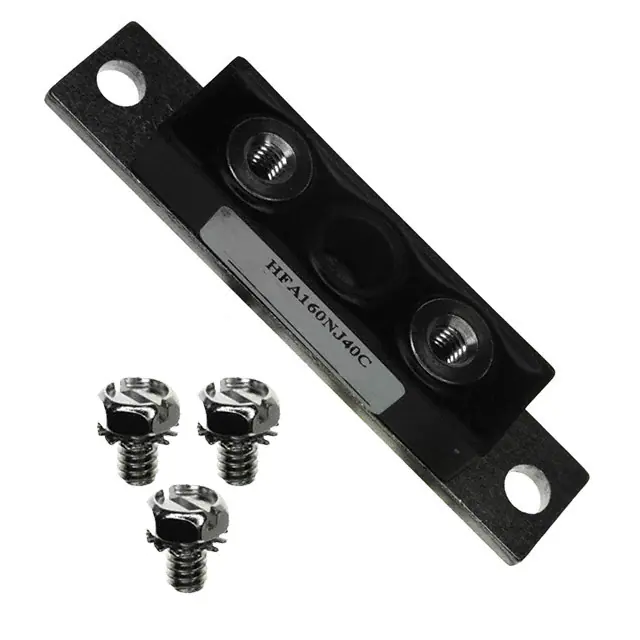

HFA160NJ40CDIODE MOD GP 400V 170A TO244AB |
3,944 |
|
Datasheet | HEXFRED® | TO-244AB Isolated Tab | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 170A (DC) | 1.3 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 6 µA @ 400 V | - | - | - | Chassis Mount | TO-244AB (Isolated) |
;;.jpg "303CNQ100")
|
303CNQ100DIODE MOD SCHOTTKY 100V TO-244AB |
6,943 |
|
Datasheet | - | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 300A | 1.09 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 100 V | -55°C ~ 175°C | - | - | Chassis Mount | TO-244AB |
|
|
VS-200CNQ045PBFDIODE MOD SCHOT 45V 200A TO244AB |
7,271 |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 200A | 550 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | - | - | - | Chassis Mount | TO-244AB |
|
|
VS-VSUD400CW60DIODE MOD GP 600V 330A TO-244AB |
5,604 |
|
Datasheet | FRED Pt® | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Standard | 600 V | 330A | 2 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 1.38 mA @ 200 V | -40°C ~ 150°C | - | - | Chassis Mount | TO-244AB |
|
|
VS-VSUD410CW60DIODE MOD GP 600V 572A TO-244AB |
4,206 |
|
Datasheet | FRED Pt® | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Standard | 600 V | 572A | 1.37 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 215 ns | 3 mA @ 600 V | -40°C ~ 175°C | - | - | Chassis Mount | TO-244AB |
|
|
400CNQ035DIODE MOD SCHOT 35V 200A TO244AB |
2,221 |
|
Datasheet | - | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 200A | 730 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 35 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-244AB |
|
|
400DMQ045DIODE MOD SCHOT 45V 400A TO244AB |
4,485 |
|
Datasheet | - | TO-244AB | Bulk | Obsolete | 1 Pair Series Connection | Schottky | 45 V | 400A | 730 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-244AB |
|
|
VS-209CNQ150PBFDIODE MOD SCHOTTKY 150V TO-244AB |
5,766 |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 100A | 1.06 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -55°C ~ 175°C | - | - | Chassis Mount | TO-244AB |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
