Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

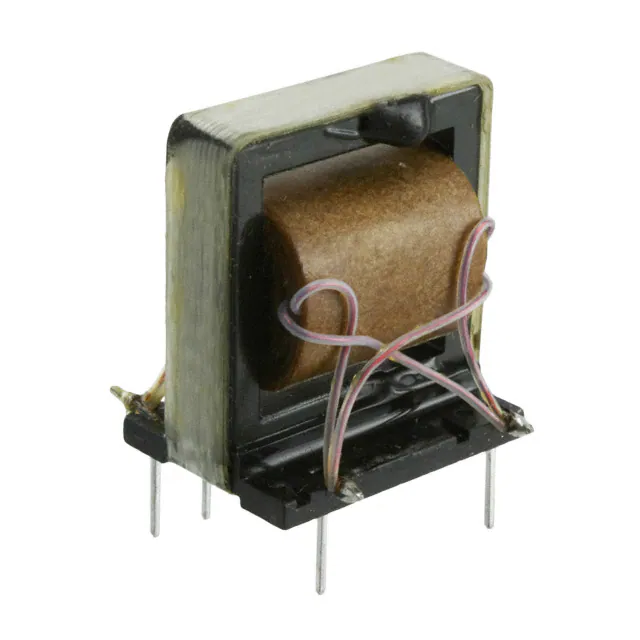

PE-63387NLPULSE XFMR 1:1:1 1.5MH |
662 |
|
Datasheet | - | Tray | Active | - | 1.5mH | 320VµS | 1:1:1 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|
H5120NLTMODULE MAGNETIC 1PORT 1000BASE-T |
1,513 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.650" L x 0.365" W (16.51mm x 9.27mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
|
H5120NLMODULE XFORMR SNGL GIGABIT SMD |
962 |
|
Datasheet | - | Tube | Active | - | - | - | 1CT:1CT | Surface Mount | 0.650" L x 0.365" W (16.51mm x 9.27mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
H5077NLTMODULE MINI-MAG 1PORT 1000BASE-T |
332 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.550" L x 0.495" W (13.97mm x 12.57mm) | 0.190" (4.82mm) | 0°C ~ 70°C | - | - |
|
HX5004NLTTRANSFORMER MODULE GIGABIT 1PORT |
2,321 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
HX5019FNLTPULSE XFMR 1CT:1 TX 1CT:1 RX |
1,394 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.100" (2.54mm) | -40°C ~ 85°C | - | - |
|

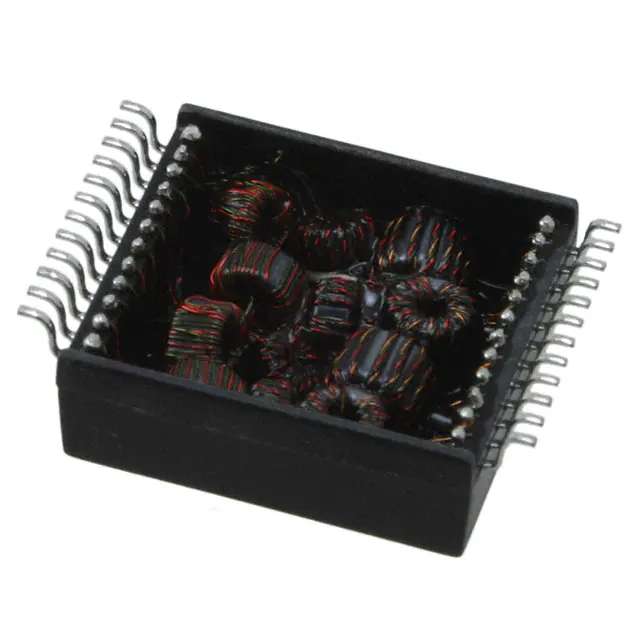

H5008NLTMODULE GIGABIT LAN 24SOIC 1PORT |
598 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743" L x 0.538" W (18.87mm x 13.67mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|
|
HX5004NLMODULE SINGLE GIGABIT LAN 24SOIC |
3,227 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
|
H5008NLMODULE GIGABIT LAN 24SOIC 1PORT |
753 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743" L x 0.538" W (18.87mm x 13.67mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|
|
HX4110NLTMDL SIN 2.5GD 1:1 SMT TR |
768 |
|
Datasheet | - | Tape & Reel (TR) | Active | General Purpose | 120µH | - | 1:1 | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
