Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

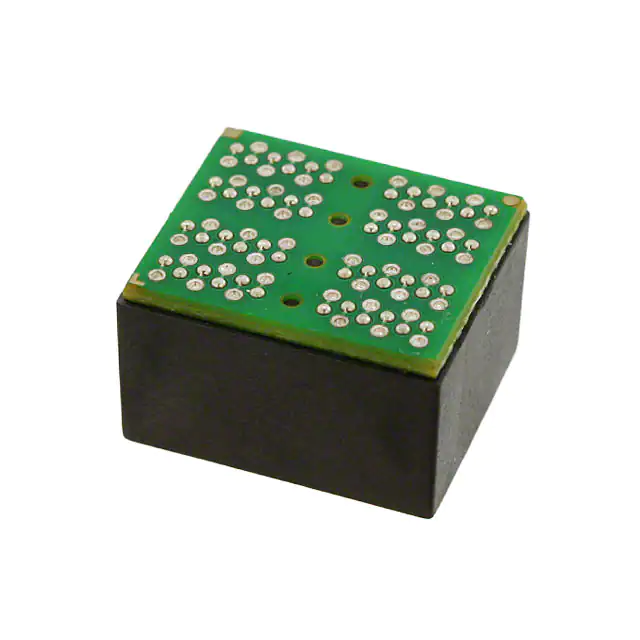

HX5201NLXFRMR MODL 2PORT POE GIGABIT |
2,586 |
|
Datasheet | - | Tray | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | -40°C ~ 85°C | - | - |
|
HX1234NLTXFRMR MODUL AUTO MDI/MDIX 10/100 |
1,218 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.290" (7.36mm) | -40°C ~ 85°C | - | - |
|
|
HX1234NLMODULE XFRMR ETHERNET LAN 40SOIC |
763 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.290" (7.36mm) | -40°C ~ 85°C | - | - |
|
HX5224CNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
428 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.728" L x 0.604" W (18.50mm x 15.34mm) | 0.385" (9.77mm) | -40°C ~ 85°C | - | - |
|
HM7142NLXFMR MDL 10GBASE-T SMT AEC-Q200 |
3,703 |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 150µH | - | - | Surface Mount | 0.540" L x 0.480" W (13.72mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
HM7142NLTXFRMR LAN MODULE |
1,037 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | - | - | - | - |
|
HX5120NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
2,061 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|
HX6101NLTPULSE XFMR 1CT:1CT TX/RX |
437 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
|
HX6101NLPULSE XFMR 1CT:1CT TX/RX |
205 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
HX6101FNLPULSE XFMR 1CT:1CT TX/RX |
566 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
Frequently Asked Questions
What are Pulse Transformers components used for?
Pulse Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pulse Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pulse Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
