| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM1238NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV, |
3,132 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 300µH | - | 1:1 | Surface Mount | 0.330" L x 0.303" W (8.38mm x 7.69mm) | 0.167" (4.25mm) | -40°C ~ 150°C | - | - |
|
E4001NLXFRMR LAN ISOL 10BASE-T 1:2 SMD |
720 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 112µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
23Z467SMNLTTRANSFORMER 10BASE-T LAN 16SOIC |
1,708 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

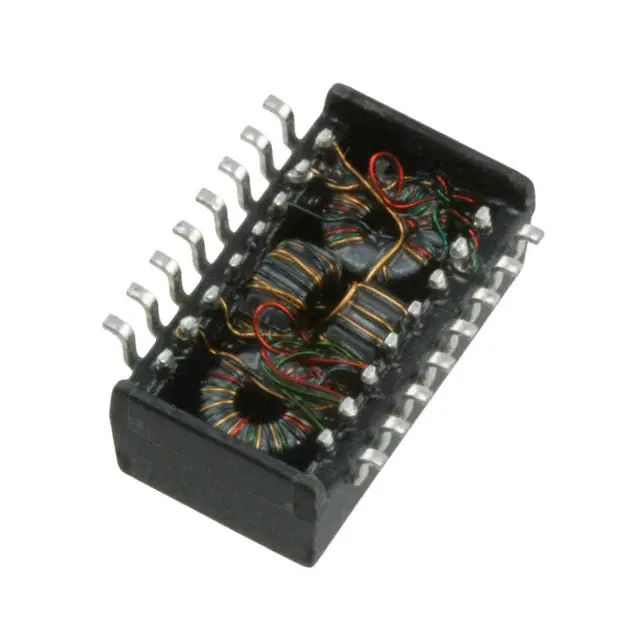

E2023NLTXFRMR LAN ISOL 10BASET 1:2.5 SMD |
675 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
PE-65778NLXFRMR 1CT:1CT 1.20MH T/H |
194 |
|

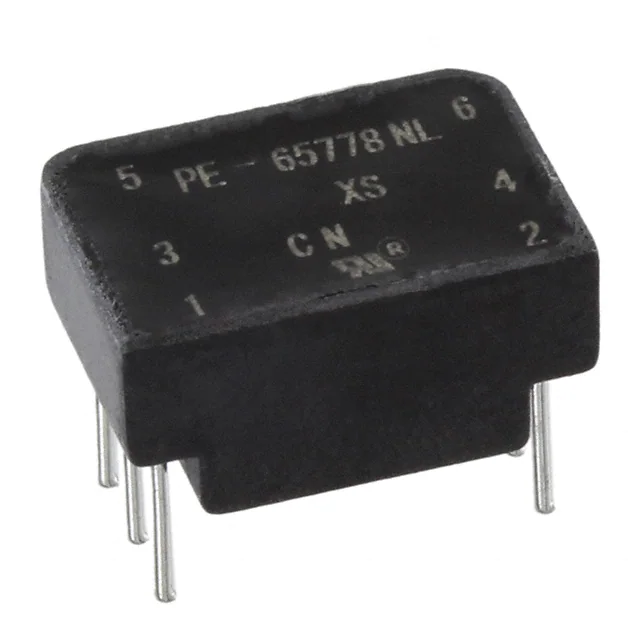

Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
PE-64931NLXFRMR T1/CEPT/ISDN-PRI 1:1:1 |
446 |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1:1, 1:2CS | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
TX1089NLXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH |
133 |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
H1302NLXFRMR MAGNETIC 1PORT 1:1 10/100 |
560 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
PA1736NLPULSE XFMR 20.5UH |
426 |
|
Datasheet | - | Tray | Active | - | 20.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
T1144NLTRANSFORMER TELECOM DUAL T1/E1 |
603 |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1CT, 1CT:2.4CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | - | - | - |
