| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9572.322ANLTGDT, FUNCTIONAL, EP7, SMT |
10,026 |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | - | - | - | Surface Mount | - | - | - | - | - |
|
PM2155.011NLTXFMR PUSH-PULL SIDE CAR S NPB |
681 |
|
Datasheet | PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.2mH | 109VµS | 1CT:1CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
PA2417NLPULSE XFMR 530UH |
2,230 |
|
Datasheet | - | Tray | Active | - | 530µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PA1138NLTXFRMR 12V 13.5W 127UH POE EP13 |
1,410 |
|
Datasheet | EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 127µH | - | 1:0.292:0.208 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 125°C | - | - |
|
PM2190.034NLTXFMR PWR .750 UH EP7 SM NPB |
1,137 |
|
Datasheet | PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 3CT:4CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
HM2147NLTXFMR SGL 1CT:1CT 500UH 4.3KV |
2,590 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 500µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
|
PA1131NLTXFRMR 5.0V 3W 500UH POE EP7 SMD |
260 |
|
Datasheet | EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 500µH | - | 1:0.125:0.208 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|

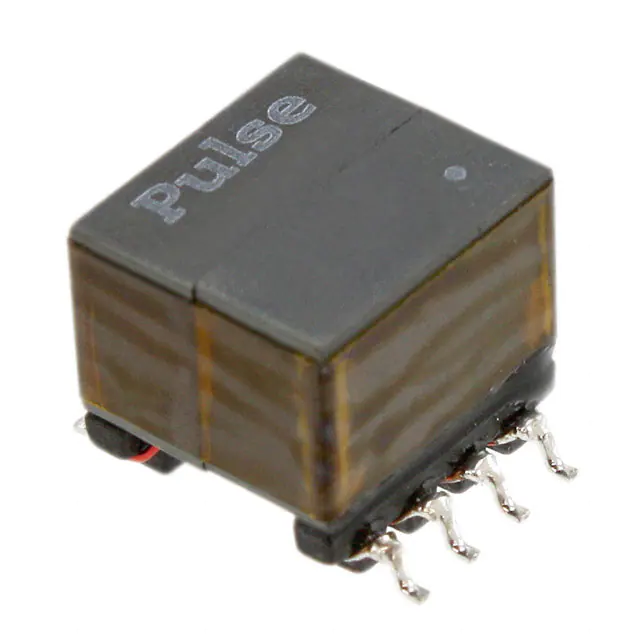

PA1134NLTXFRMR 5V 7W 253UH POE EP10 SMD |
1,431 |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 253µH | - | 1:0.125:0.208 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

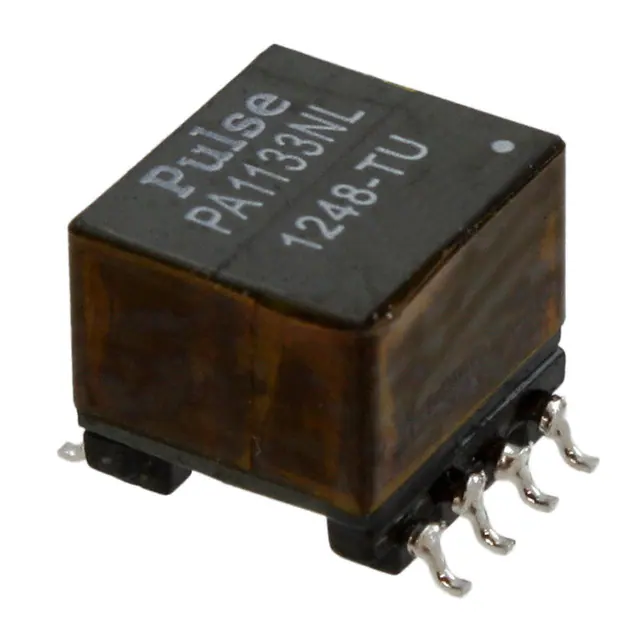

PA1133NLTXFRMR 3.3V 7W 253UH POE EP10 SMD |
562 |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 253.4µH | - | 1:0.083:0.208 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
PA1260NLTXFRMR 5V 13.5W 77.4UH POE EP13 |
259 |
|
Datasheet | EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.273:0.682 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
