Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E2023FNLTXFRMR LAN ISOL 10BASET 1:2.5 SMD |
3,827 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
E2454FNLXFRMR ISOL 10BASE-T 1:2 SMD |
4,686 |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 50µH, 200µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
E2458FNLXFRMR ISOL 10BASE-T 1:1.41 SMD |
2,949 |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 160µH, 160µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
|
E2458FNLTXFRMR ISOL 10BASE-T 1:1.41 SMD |
3,689 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 160µH, 160µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
H0013FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,596 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.488" L x 0.365" W (12.40mm x 9.27mm) | 0.073" (1.85mm) | 0°C ~ 70°C | - | - |
|

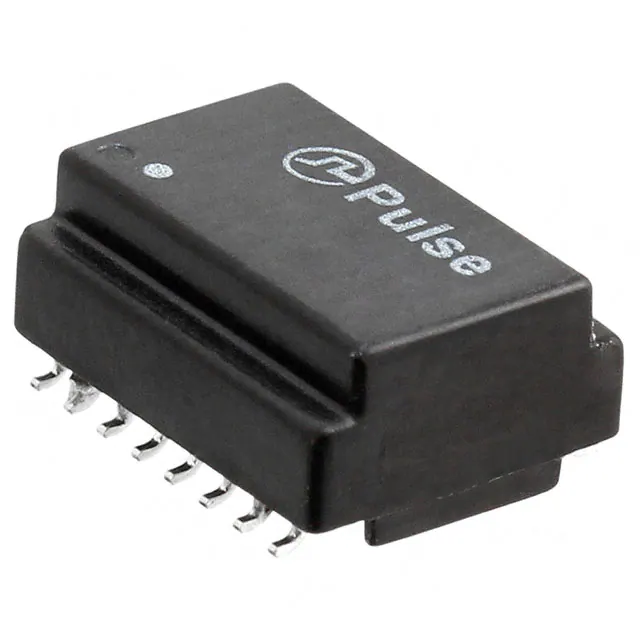

H2260FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,915 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
HX1259FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,787 |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
HX1305FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,190 |
|
Datasheet | - | Tube | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|
HX6096FNLPULSE XFMR 1CT:1CT TX/RX |
1,591 |
|
Datasheet | - | Tube | Obsolete | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
ST7011FNLPULSE XFMR 1CT:1.414CT 1CT:1CT |
3,386 |
|
Datasheet | - | Tube | Obsolete | LAN 10G Base-T | 175µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
