Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7037NL10GBASE-T DISCRETE TERANETIC/PLX |
1,838 |
|
Datasheet | - | Bulk | Active | LAN 10G Base-T | - | - | 1:1 | - | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
H7137NL10GBASE-T DISCRETE 5CH |
1,344 |
|
Datasheet | - | Bulk | Obsolete | LAN 10G Base-T | - | - | 1:1 | - | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
HX1323NLPULSE XFMR 1:1 350UH |
4,204 |
|
Datasheet | - | Bulk | Obsolete | - | 350µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|
|
PE-68056NLPULSE XFMR 1:1 |
3,989 |
|
Datasheet | - | Bulk | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

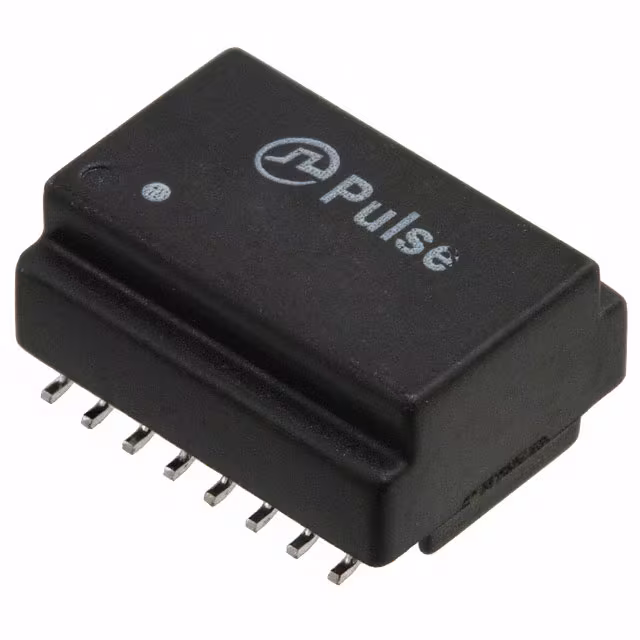

23Z91SMFNLXFRMR AUI ETHERNET LAN 16SOIC |
2,703 |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 100µH | 2.4VµS | 1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
H2260FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,514 |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
H5012FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,460 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
|
H5019FNLPULSE XFMR 1CT:1 TX 1CT:1 RX |
2,760 |
|
Datasheet | - | Tube | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
|
23Z356SMFNLPULSE XFMR 1CT:1.414CT 1CT:1CT |
1,419 |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 68µH, 160µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
23Z91SMFNLTXFRMR AUI ETHERNET LAN 16SOIC |
1,817 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 100µH | 2.4VµS | 1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
