Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9572.233ANLTGDT, FUNCTIONAL, EP7, SMT |
624 |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1.8mH | 56.5VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|

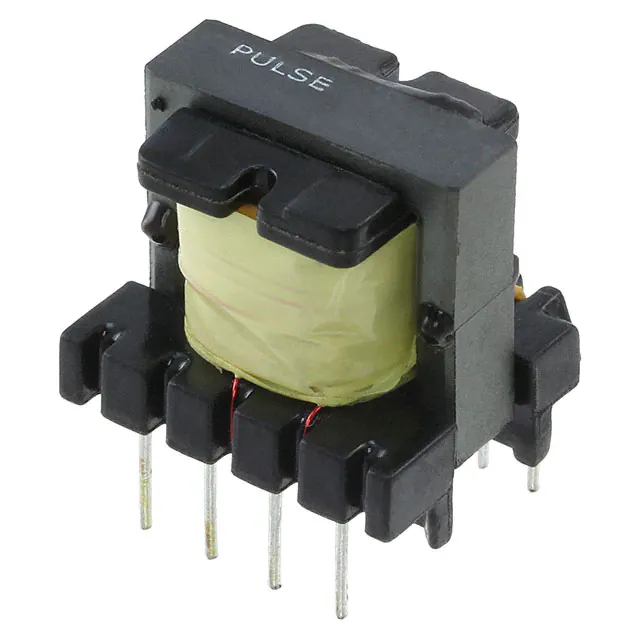

P5009NLPULSE XFMR 1:0.1:0.1 |
2,400 |
|
Datasheet | - | Tray | Active | - | - | - | 1:0.1:0.1 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9385.027NLTXFMR PUSH-PULL SIDE CAR 2:7 SMT |
139 |
|
Datasheet | PH9385 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | 0.295" (7.50mm) | - | - | - |
|
P0926NLPULSE XFMR 1:1:1 300UH |
1,380 |
|
Datasheet | - | Tray | Active | - | 300µH | 23.8VµS | 1:1:1 | Surface Mount | 0.260" L x 0.315" W (6.60mm x 8.00mm) | 0.210" (5.33mm) | -40°C ~ 130°C | - | - |
|
PM2190.011NLTXFMR PWR .750 UH EP7 SM NPB |
739 |
|
Datasheet | PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 1CT:1CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
PM2190.012NLTXFMR PWR .450 UH EP7 SM NPB |
848 |
|
Datasheet | PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 450µH | 52VµS | 1CT:2CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
HX1260FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,515 |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
PA1135NLTXFRMR 12V 7W 264UH POE EP10 SMD |
200 |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 264.1µH | - | 1:0.286:0.204 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
PA1276NLTXFRMR 12V 13.5W 77.4UH POE EP13 |
108 |
|
Datasheet | EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.682:0.682 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 130°C | - | - |
|
BX4550NLXFMR SGL G.FAST TOR 1CT:1CT |
2,255 |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - |
