PTC Resettable Fuses
Explore PTC Resettable Fuses parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-LSMF500/16X-22920 RESETTABLE SMD PPTC 5.0A/16 |
2,713 |
|
Datasheet | 2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | - | - | - | - | - | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | - | - |
|
PTCTL8NR100HBEPTC RESET FUSE 250V 100MA RADIAL |
600 |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 250V | 100 mA | 450 mA | 10 A | 40 s | - | - | 10 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.535" Dia x 0.236" T (13.60mm x 6.00mm) | 0.732" (18.60mm) | - | 0.197" (5.00mm) |
|
1206L150SLYRPTC RESET FUSE 6V 1.5A 1206 |
10,983 |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3.9 A | 50 A | 300 ms | 10 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
0805L200SLTHYRPTC RESET FUSE 6V 2A 0805 |
10,219 |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 1 s | 5 mOhms | 45 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
0603L200SL-VYRPTC RESET FUSE 2.0A 6V 0603 |
7,435 |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 1 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
1206L380SLTHYRPTC RESET FUSE 6V 2.82A 1206 |
6,840 |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2.82 A | 8 A | 50 A | 5 s | 2 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
|
1206L200SLYRPTC RESET FUSE 6V 2A 1206 |
5,032 |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 500 ms | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.024" (0.60mm) | - |
|

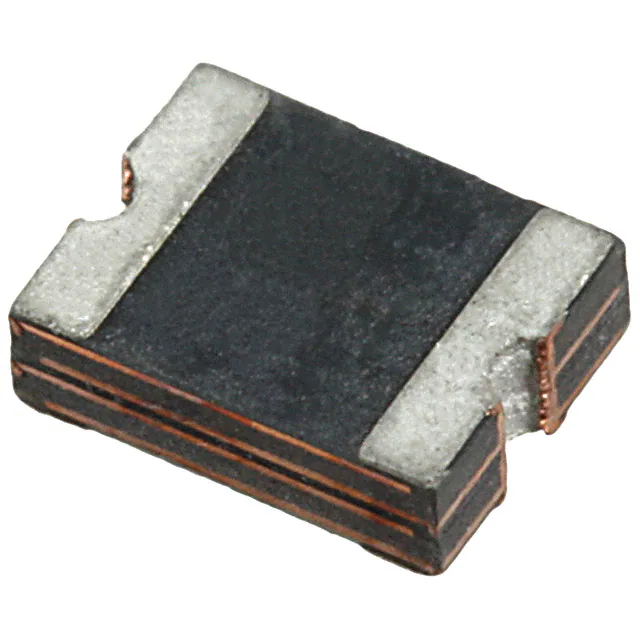

1210L300SLWRPTC RESET FUSE 6V 3A 1210 |
983 |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 2 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
B59115P1080A062PTC RESET FUSE 80V 40MA 3225 |
20,959 |
|
Datasheet | 3225 (8063 Metric) | B59115 | Tape & Reel (TR) | Active | Ceramic | 80V | 40 mA | 85 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
|
B59215P1080A062PTC RESET FUSE 80V 65MA 3225 |
20,079 |
|
Datasheet | 3225 (8063 Metric) | B59215 | Tape & Reel (TR) | Active | Ceramic | 80V | 65 mA | 135 mA | 1 A | - | - | - | 25 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
B59101P1120A062PTC RESET FUSE 24V 355MA 2SMD |
6,743 |
|
Datasheet | 2-SMD | B59101 | Tape & Reel (TR) | Active | Ceramic | 24V | 355 mA | - | 170 mA | - | 7.8 Ohms | 13 Ohms | - | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.398" L x 0.138" W (10.10mm x 3.50mm) | - | 0.150" (3.80mm) | - |
|
|
B59201P1080A062PTC RESET FUSE 30V 165MA 3225 |
1,952 |
|
Datasheet | 3225 (8063 Metric) | B59201 | Tape & Reel (TR) | Active | Ceramic | 30V | 165 mA | 340 mA | 1 A | - | - | - | 4.6 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
1812L300MRPTC RESET FUSE 6V 3A 1812 |
3,520 |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 5 A | 100 A | 4 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.059" (1.50mm) | - |
|
|
1812L010/60DRPTC RESET FUSE 60V 100MA 1812 |
2,081 |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 300 mA | 10 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
CL20 250120PTC RESET FUSE 480V 300MA RADIAL |
3,601 |
|
Datasheet | Radial, Disc | - | Bulk | Active | - | 480V | 300 mA | 600 mA | - | - | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.866" Dia x 0.236" T (22.00mm x 6.00mm) | - | - | 0.307" (7.80mm) |
|
B59940C0120A070PTC RESET FUSE 80V 450MA RADIAL |
580 |
|
Datasheet | Radial, Disc | B59940 | Bulk | Active | Ceramic | 80V | 450 mA | 900 mA | 8 A | - | - | - | 2.3 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.866" Dia x 0.138" T (22.00mm x 3.50mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
|
0805L150/12SLYRLOW RHO SMD |
2,719 |
|
Datasheet | 0805 (2012 Metric), Concave | PolySwitch® Low Rho | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 50 A | 500 ms | 7 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
0603L003/36YR-APTC 36V POLYFUSE SMD 0603 .030A |
2,299 |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 36V | 30 mA | 90 mA | 40 A | 1 s | 6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
2920L330/24MR-APTC RESET FUSE 24V 3.3A 2920 |
2,007 |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 24V | 3.3 A | 5.5 A | 40 A | 5 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
AHEF1000PTC RESET FUSE 32V 10A RADIAL |
579 |
|
Datasheet | Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 10 A | 20 A | 100 A | 15 s | 6 mOhms | 16 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.157" W (23.50mm x 4.00mm) | 1.098" (27.90mm) | - | 0.400" (10.15mm) |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
