PTC Resettable Fuses
Explore PTC Resettable Fuses parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR016V1500-TRPTC RESET FUSE 16V 15A RADIAL |
700 |
|
Datasheet | Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 15 A | 25.5 A | 100 A | 10 s | 2 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.989" L x 0.122" W (25.10mm x 3.10mm) | 1.142" (29.00mm) | - | 0.394" (10.00mm) |
|
RKEF500-2PTC RESET FUSE 60V 5A RADIAL |
116 |
|
Datasheet | Radial, Disc | PolySwitch®, RKEF | Tape & Reel (TR) | Active | Polymeric | 60V | 5 A | 10 A | 40 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.140" L x 0.120" W (29.00mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|
1210L005/90WR1210L |
3,573 |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch® 1210L | Tape & Reel (TR) | Active | Polymeric | 90V | 50 mA | 150 mA | 10 A | 200 ms | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
30R500UMRPTC RESET FUSE 30V 5A RADIAL |
3,097 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.008" (25.60mm) | - | 0.402" (10.20mm) |
|
PTCTL7MR100SBEPTC RESET FUSE 600V 175MA RADIAL |
2,684 |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 600V | 175 mA | 400 mA | 1 A | 7 s | - | - | 10 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.512" Dia x 0.217" T (13.00mm x 5.50mm) | 0.709" (18.00mm) | - | 0.197" (5.00mm) |
|
MF-RHT750-0PTC RESET FUSE 16V 7.5A RADIAL |
2,800 |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.114" (2.90mm) |
|
|
RKEF500K-2PTC RESET FUSE 60V 5A RADIAL |
6,522 |
|
Datasheet | Radial, Disc | PolySwitch®, RKEF | Tape & Reel (TR) | Active | Polymeric | 60V | 5 A | 10 A | 40 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.140" L x 0.120" W (29.00mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|
MF-LR730/20-0PTC RESET FUSE 20V 7.3A STRAP |
3,449 |
|
Datasheet | Strap | Multifuse®, MF-LR | Bulk | Active | Polymeric | 20V | 7.3 A | 14.1 A | 100 A | 5 s | 6 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.106" L x 0.559" W (28.10mm x 14.20mm) | - | 0.039" (1.00mm) | - |
|
B59870C0160A070PTC RESET FUSE 160V 125MA RADIAL |
1,141 |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 160V | 125 mA | 250 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
MF-ASML020/6-2PTC RESET FUSE 6V 200MA 0402 |
10,279 |
|
Datasheet | 0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 200 mA | 500 mA | 50 A | 1 s | 100 mOhms | 1.6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
.jpg "MF-PSML300/12-2")
|
MF-PSML300/12-2PTC RESET FUSE 12V 3A 0805 |
19,725 |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
.jpg "B59215P1120A062")
|
B59215P1120A062THERMISTOR PTC 25 OHM 25% 2SMD |
8,732 |
|
Datasheet | 2-SMD | B59215 | Tape & Reel (TR) | Active | Ceramic | 80V | 100 mA | 210 mA | 1 A | - | 15 Ohms | 25 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
B59965C0120A070PTC RESET FUSE 30V 600MA RADIAL |
1,914 |
|
Datasheet | Radial, Disc | B59965 | Bulk | Active | Ceramic | 30V | 600 mA | 1.2 A | 4.3 A | - | - | - | 1.2 Ohms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
MF-PSML200/12-2PTC RESET FUSE 12V 2A 0805 |
1,431 |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 2 A | 4 A | 50 A | 2 s | 5 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
B59975C0120A070PTC RESET FUSE 30V 450MA RADIAL |
9,587 |
|
Datasheet | Radial, Disc | B59975 | Bulk | Active | Ceramic | 30V | 450 mA | 900 mA | 3 A | - | - | - | 1.8 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
B59885C0120A070PTC RESET FUSE 550V 15MA RADIAL |
3,237 |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 550V | 15 mA | 30 mA | 100 mA | - | - | - | 1.2 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
MF-ASML050/6-2PTC RESET FUSE 6V 500MA 0402 |
22,663 |
|
Datasheet | 0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 50 A | 100 ms | 500 mOhms | 500 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
|
MF-ASML035/6-2PTC RESET FUSE 6V 350MA 0402 |
8,645 |
|
Datasheet | 0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 700 mA | 50 A | 100 ms | 50 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|

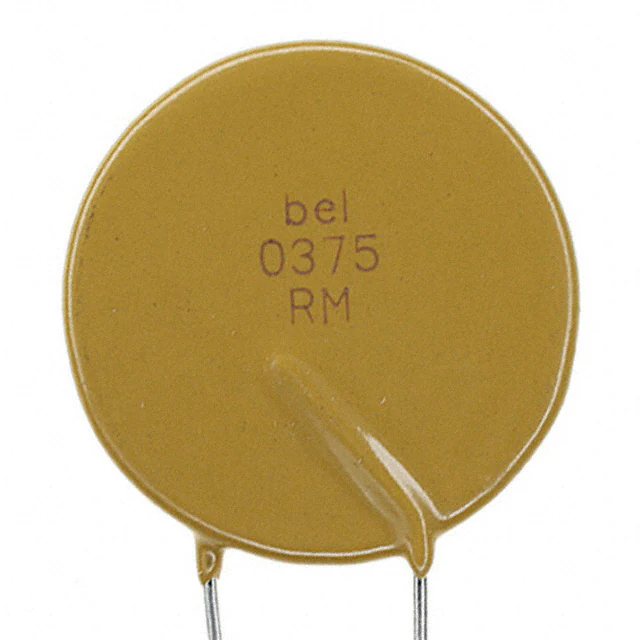

0ZRM0375FF1APTC RESET FUSE 120V 3.75A RADIAL |
4,550 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 3.75 A | 7.5 A | 20 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.161" Dia x 0.161" T (29.50mm x 4.10mm) | 1.339" (34.00mm) | - | 0.402" (10.20mm) |
|
0805L400SLWRPTC RESET FUSE 4.0A 6V 0805 |
40,340 |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 9 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.055" (1.40mm) | - |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
