PTC Resettable Fuses
Review PTC Resettable Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

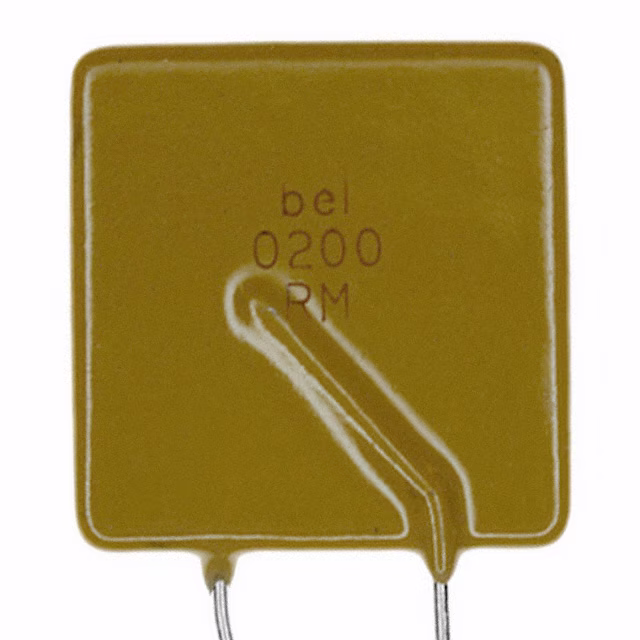

0ZRM0200FF1APTC RESET FUSE 120V 2A RADIAL |
9,250 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 2 A | 4.2 A | 20 A | 36 s | 80 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.161" W (23.50mm x 4.10mm) | 1.098" (27.90mm) | - | 0.402" (10.20mm) |
|

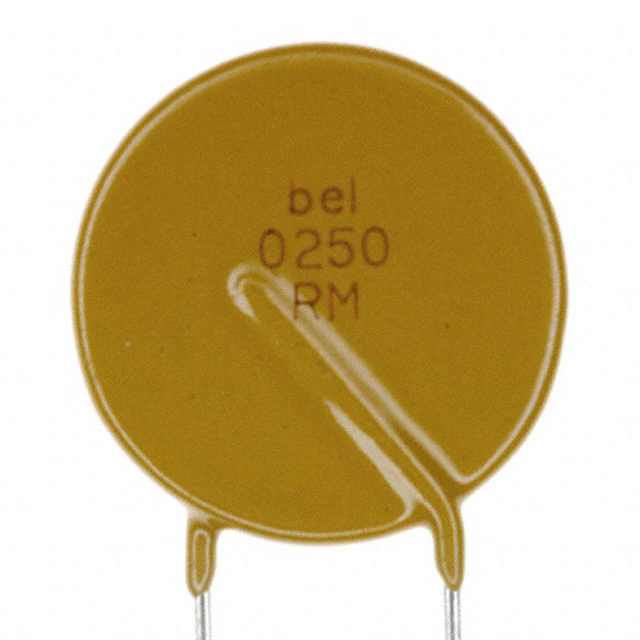

0ZRM0250FF1APTC RESET FUSE 120V 2.5A RADIAL |
3,746 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 2.5 A | 5 A | 15 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.886" Dia x 0.161" T (22.50mm x 4.10mm) | 1.083" (27.50mm) | - | 0.402" (10.20mm) |
|

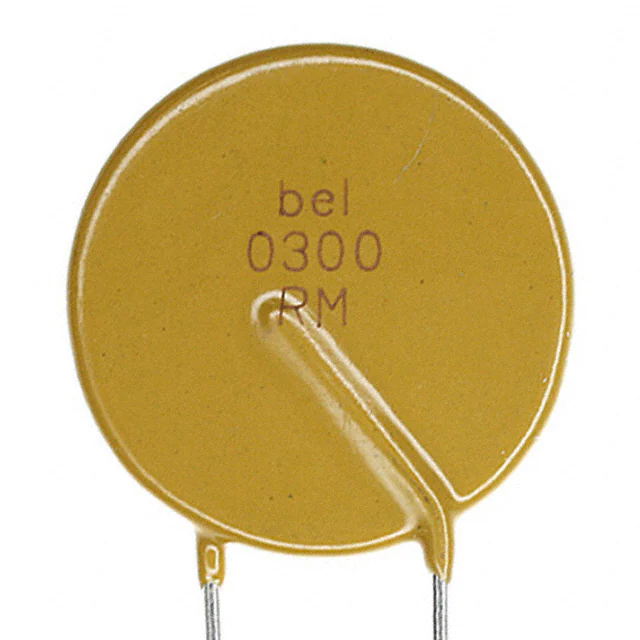

0ZRM0300FF1APTC RESET FUSE 120V 3A RADIAL |
6,083 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 3 A | 6 A | 17 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.004" Dia x 0.161" T (25.50mm x 4.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
,-Concave.jpg "0ZCN0200FF2C")
|
0ZCN0200FF2CPTC RESET FUSE 6V 2A 2016 |
2,729 |
|
Datasheet | 2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4.2 A | 100 A | 3 s | 48 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.022" (0.55mm) | - |
|
0ZRN0750FF1APTC RESET FUSE 16V 7.5A RADIAL |
6,809 |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.201" (5.10mm) |
|
|
0ZRN0800FF1APTC RESET FUSE 16V 8A RADIAL |
7,860 |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 8 s | 8 mOhms | 20 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
|
0ZRN0900FF1APTC RESET FUSE 16V 9A RADIAL |
8,875 |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.201" (5.10mm) |
|
0ZTG0110FF2CPTC RESET FUSE 6V 1.1A 1812 |
3,922 |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZTG | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 1 s | 50 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.030" (0.75mm) | - |
|
0ZRN1100FF1APTC RESET FUSE 16V 11A RADIAL |
6,826 |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 11 A | 20 A | 100 A | 11 s | 5.5 mOhms | 13 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 1.028" (26.10mm) | - | 0.402" (10.20mm) |
|
0ZRN1300FF1APTC RESET FUSE 16V 13A RADIAL |
9,695 |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
