PTC Resettable Fuses
Review PTC Resettable Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRS0300FF2BPTC RESET FUSE 32V 3A RADIAL |
6,877 |
|
Datasheet | Radial, Disc | 0ZRS | Tape & Reel (TR) | Active | Ceramic | 32V | 3 A | 6 A | 100 A | 5 s | 35 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.150" W (10.20mm x 3.80mm) | 0.610" (15.50mm) | - | 0.201" (5.10mm) |
|
0ZRN0550FF2BPTC RESET FUSE 16V 5.5A RADIAL |
8,063 |
|
Datasheet | Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 15 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|

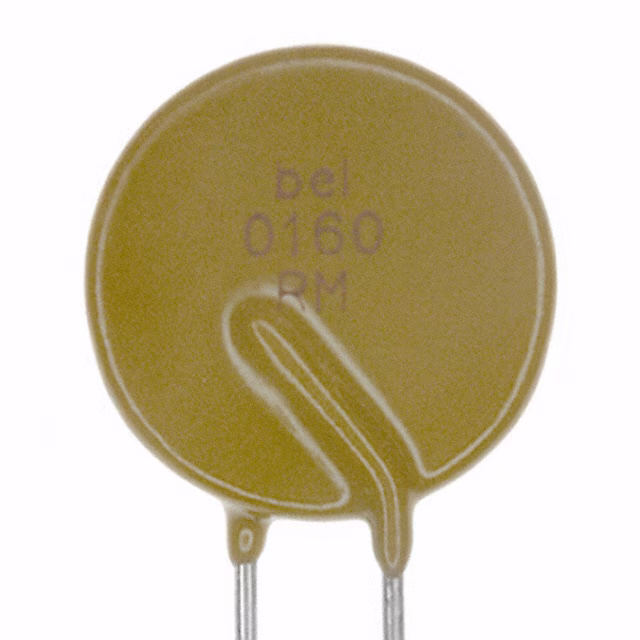

0ZRM0160FF1APTC RESET FUSE 120V 1.6A RADIAL |
3,845 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.6 A | 3.2 A | 12 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.161" T (17.50mm x 4.10mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
0ZRN0650FF1APTC RESET FUSE 16V 6.5A RADIAL |
2,463 |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.201" (5.10mm) |
|
0ZCD0030FF2CPTC RESET FUSE 60V 300MA 2920 |
8,233 |
|
Datasheet | 2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 10 A | 3 s | 1 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCD0200FF2CPTC RESET FUSE 16V 2A 2920 |
9,942 |
|
Datasheet | 2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2 A | 4 A | 40 A | 4.5 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|

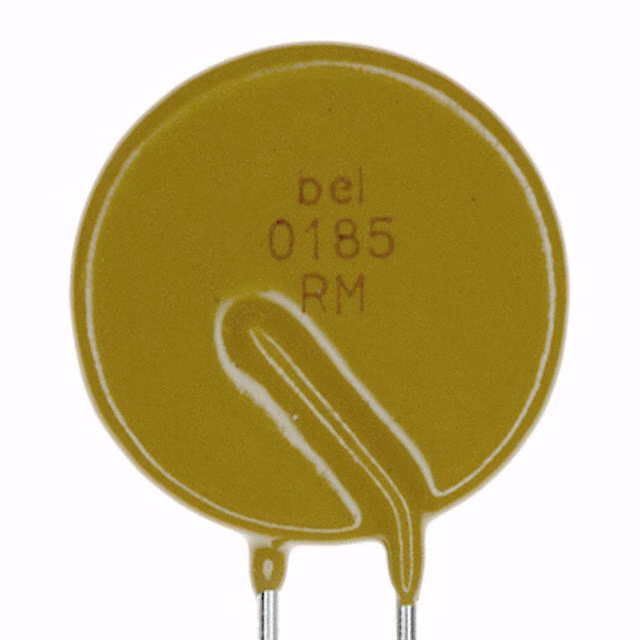

0ZRM0185FF1APTC RESET FUSE 120V 1.85A RADIAL |
7,818 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.85 A | 3.7 A | 12 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.783" Dia x 0.161" T (19.90mm x 4.10mm) | 0.980" (24.90mm) | - | 0.201" (5.10mm) |
|
0ZCB0200FF2EPTC RESET FUSE 6V 2A 1210 |
5,420 |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2 A | 4 A | 100 A | 1 s | 15 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
|
0ZRN0600FF2BPTC RESET FUSE 16V 6A RADIAL |
9,450 |
|
Datasheet | Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.201" (5.10mm) |
|
0ZRP0110FF2BPTC RESET FUSE 60V 1.1A RADIAL |
9,822 |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 3 s | 170 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" L x 0.161" W (7.60mm x 4.10mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
