PTC Resettable Fuses
Review PTC Resettable Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

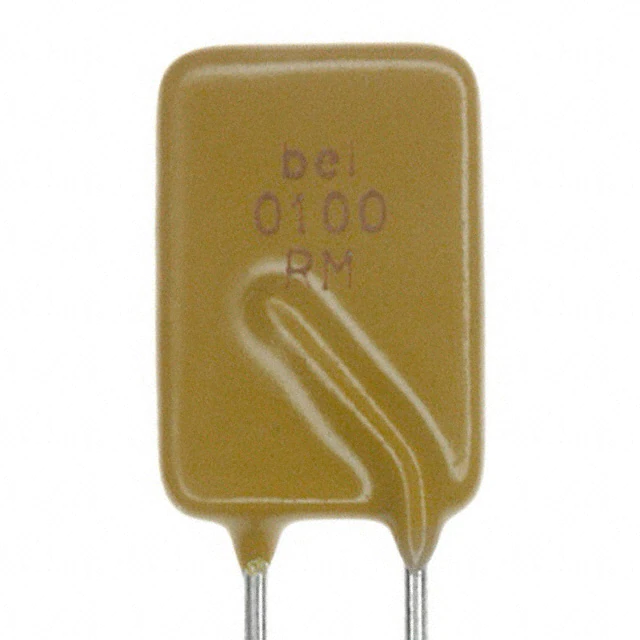

0ZRM0100FF2BPTC RESET FUSE 120V 1A RADIAL |
322 |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 1 A | 2 A | 10 A | 15 s | 180 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.453" L x 0.161" W (11.50mm x 4.10mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|
0ZRM0110FF2BPTC RESET FUSE 120V 1.1A RADIAL |
318 |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 1.1 A | 2.2 A | 8 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.524" Dia x 0.161" T (13.30mm x 4.10mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
0ZAF0005FF28LINE VOLTAGE RATED SURFACE MOUNT |
550 |
|
Datasheet | 2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 50 mA | 120 mA | 1 A | 15 s | 10 Ohms | 70 Ohms | 55 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|
|
0ZAF0008FF28LINE VOLTAGE RATED SURFACE MOUNT |
159 |
|
Datasheet | 2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 80 mA | 190 mA | 1.2 A | 15 s | 6 Ohms | 25 Ohms | 16 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|
|
0ZAF0013FF28LINE VOLTAGE RATED SURFACE MOUNT |
608 |
|
Datasheet | 2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 130 mA | 320 mA | 1.2 A | 15 s | 2 Ohms | 12 Ohms | 6 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|
|
0ZAF0016FF28LINE VOLTAGE RATED SURFACE MOUNT |
1,418 |
|
Datasheet | 2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 160 mA | 370 mA | 2 A | 15 s | 2 Ohms | 11 Ohms | 6 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|
0ZSC0260FF1EPTC RESET FUSE 20V 2.6A STRAP |
710 |
|
Datasheet | Strap | 0ZSC | Bulk | Active | Polymeric | 20V | 2.6 A | 5.8 A | 100 A | 5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.205" W (22.00mm x 5.20mm) | - | 0.039" (1.00mm) | - |
|
0ZCM0001FF2GPTC RESET FUSE 60V 10MA 0603 |
2,357 |
|
Datasheet | 0603 (1608 Metric), Concave | 0ZCM | Tape & Reel (TR) | Active | Polymeric | 60V | 10 mA | 30 mA | 40 A | 1 s | 15 Ohms | 100 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.033" (0.85mm) | - |
|
|
0ZCK0010AF2GPTC RESET FUSE |
6,316 |
|
Datasheet | 0805 (2012 Metric), Concave | 0ZCK | Tape & Reel (TR) | Active | Polymeric | 24V | 100 mA | 300 mA | 100 A | 1.5 s | 700 mOhms | 6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
0ZCH0150FF2EPTC RESET FUSE 6V 1.5A 1210 |
3,441 |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.035" (0.90mm) | - |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
