PTC Resettable Fuses
Review PTC Resettable Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRP0300FF1APTC RESET FUSE 60V 3A RADIAL |
829 |
|
Datasheet | Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.142" W (16.50mm x 3.60mm) | 0.835" (21.20mm) | - | 0.201" (5.10mm) |
|
0ZAF0012FF28LINE VOLTAGE RATED SURFACE MOUNT |
347 |
|
Datasheet | 2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 120 mA | 300 mA | 1.2 A | 15 s | 6 Ohms | 20 Ohms | 14 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|
0ZRM0100FF1EPTC RESET FUSE 120V 1A RADIAL |
852 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1 A | 2 A | 10 A | 15 s | 180 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.453" Dia x 0.161" T (11.50mm x 4.10mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|
0ZRR0075FF1EPTC RESET FUSE 60V 750MA RADIAL |
206 |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
0ZRR0135FF1APTC RESET FUSE 60V 1.35A RADIAL |
187 |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.571" Dia x 0.122" T (14.50mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|
0ZRR0025FF1EPTC RESET FUSE 60V 250MA RADIAL |
371 |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

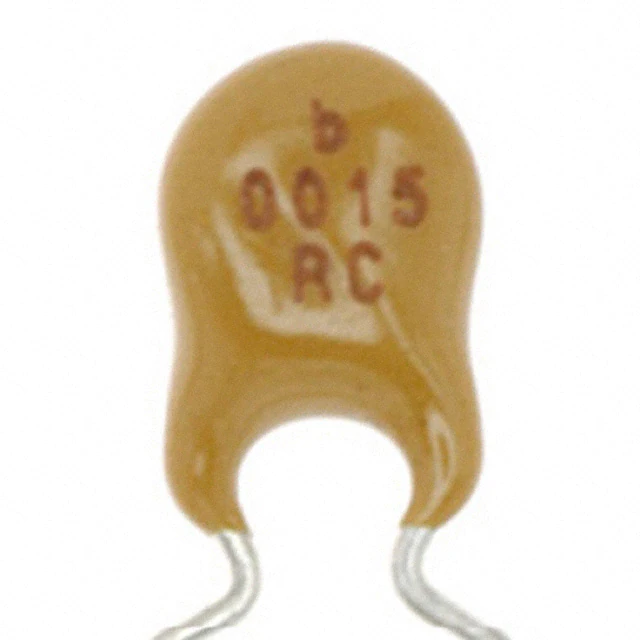

0ZRC0015FF1EPTC RESET FUSE 90V 150MA RADIAL |
903 |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 150 mA | 350 mA | 40 A | 10 s | 2.4 Ohms | 7 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

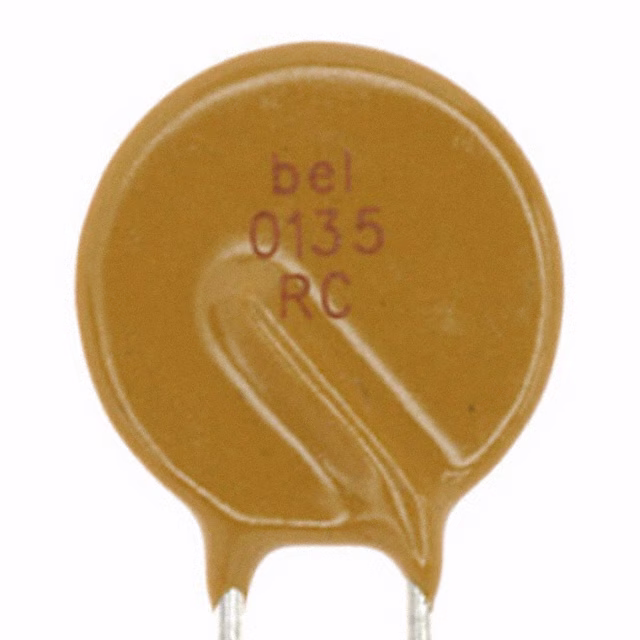

0ZRC0135FF1APTC RESET FUSE 90V 1.35A RADIAL |
596 |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.571" L x 0.122" W (14.50mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|
0ZRR0090FF1EPTC RESET FUSE 60V 900MA RADIAL |
370 |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|
0ZRG0135FF1EPTC RESET FUSE 30V 1.35A RADIAL |
976 |
|
Datasheet | Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
