Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

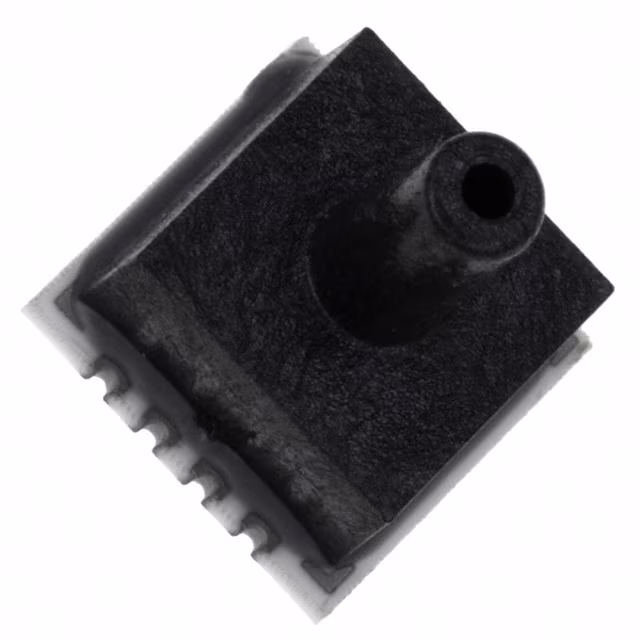

SXP15ASMTPSENSOR 15PSIA 0.08" .1125V |
4,301 |
|
Datasheet | SX SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 112.5 mV (5V) | ±0.5% | 12V | Male - 0.08" (2.05mm) Tube | Barbless | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

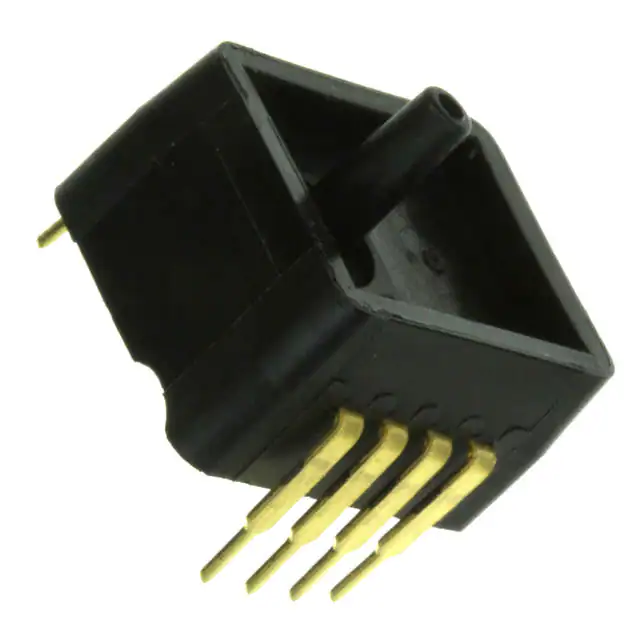

ASDXAVX001PGAA5SENSOR 1PSIG 0.09" 4.5V |
4,128 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube | Barbless | Temperature Compensated | PC Pin | 2PSI (13.79kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|

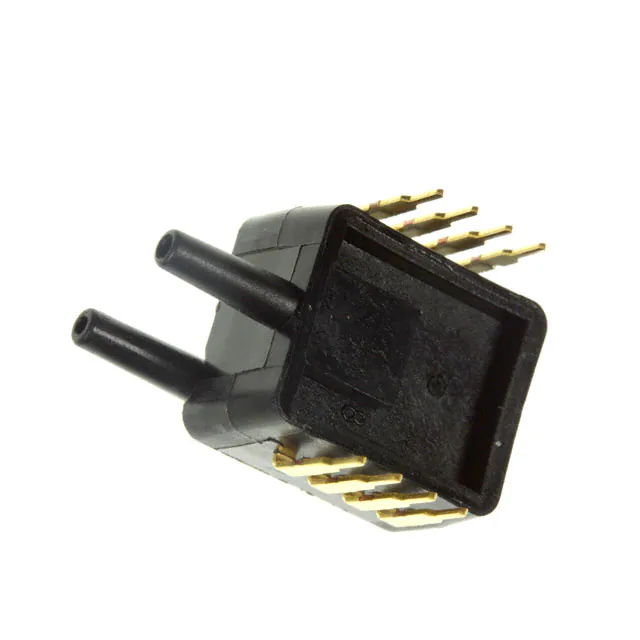

ASDXRRX001PDAA5SENSOR 1PSID 0.09" 4.5V |
4,042 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±2PSI (±13.79kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|

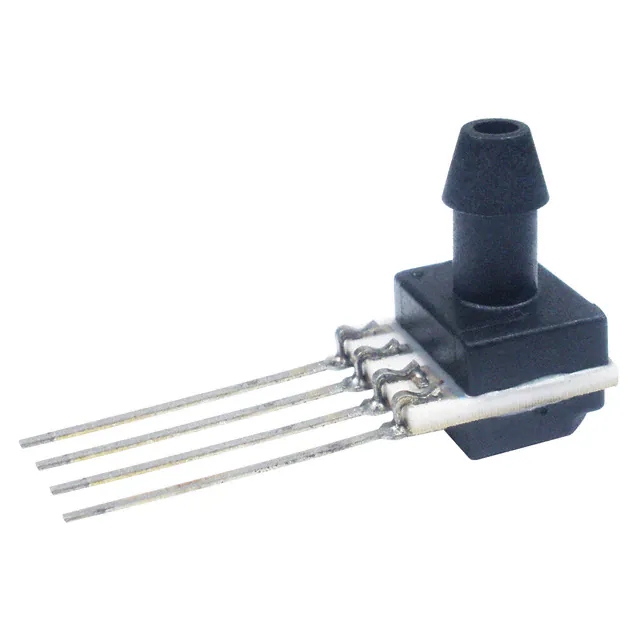

SSCSANN001BGAA5SENSOR 14.5PSIG 0.19" 4.5V 4SIP |
3,520 |
|
Datasheet | TruStability® SSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

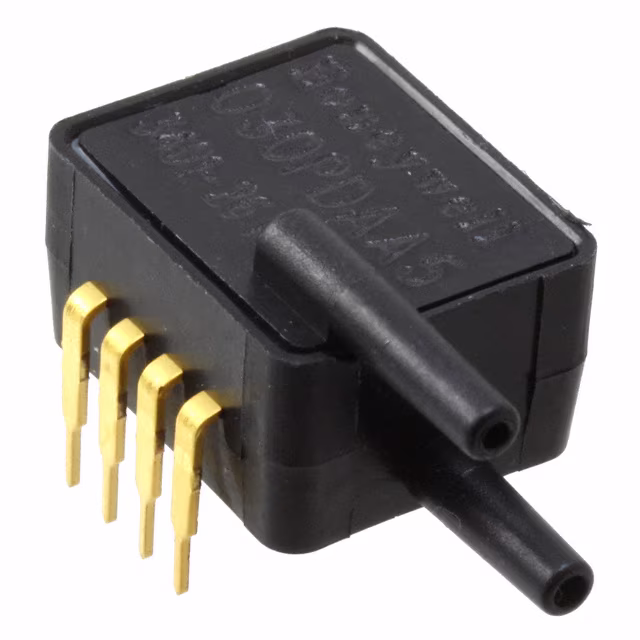

ASDXRRX030PDAA5SENSOR 30PSID 0.09" 4.5V |
1,605 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
SSCDRRN030PDAA5SENSOR 30PSID 0.08" 4.5V 8DIP |
2,777 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±120PSI (±827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDANN001BG2A5SENSOR 14.5PSIG 0.19" 12BIT 8DIP |
3,333 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCDANN150PAAB5SENSOR 150PSIA 0.19" 4.75V 8DIP |
3,332 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCSAAN600MDAA5SENSOR 8.7PSID 0.19" 4.5V 4SIP |
1,662 |
|
Datasheet | TruStability® SSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±8.7PSI (±60kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±29.01PSI (±200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSHHN001PDAA5SENSOR 1PSID 0.16" 4.5V 4SIP |
1,317 |
|
Datasheet | TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
