Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

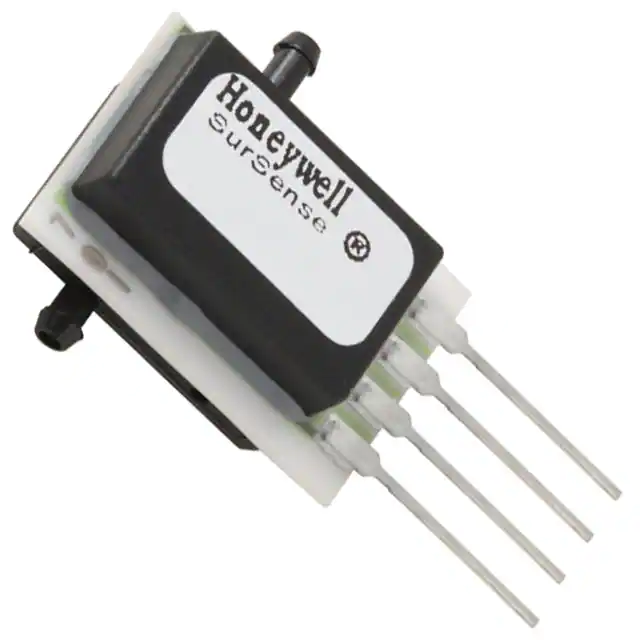

DUXL10DSENSOR 0.36PSID 0.08" .03V |
2,208 |
|
Datasheet | DUXL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | - | PC Pin | 5.42PSI (37.38kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DUXL20DSENSOR 0.72PSID 0.08" .03V |
2,636 |
|
Datasheet | DUXL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | - | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

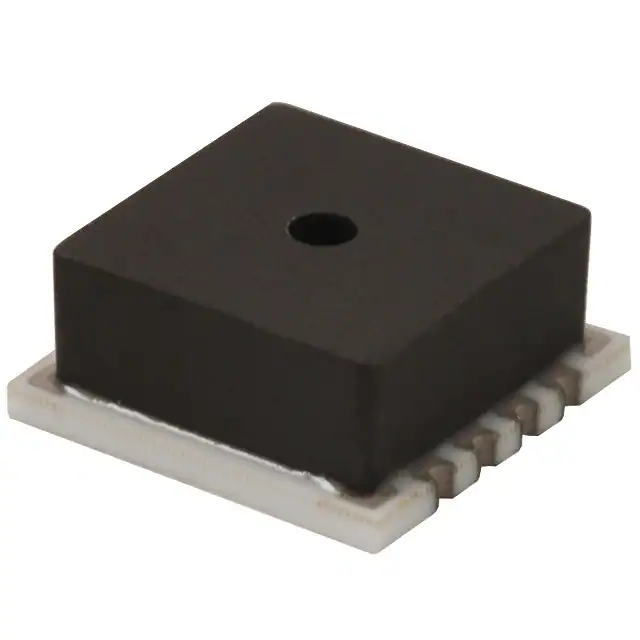

SCC15ASMTSENSOR 15PSIA .095V |
1,555 |
|
Datasheet | SCC SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±0.005% | - | - | No Port | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
SCC30ASMTSENSOR 30PSIA .15V |
2,869 |
|
Datasheet | SCC SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | ±0.005% | - | - | No Port | Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

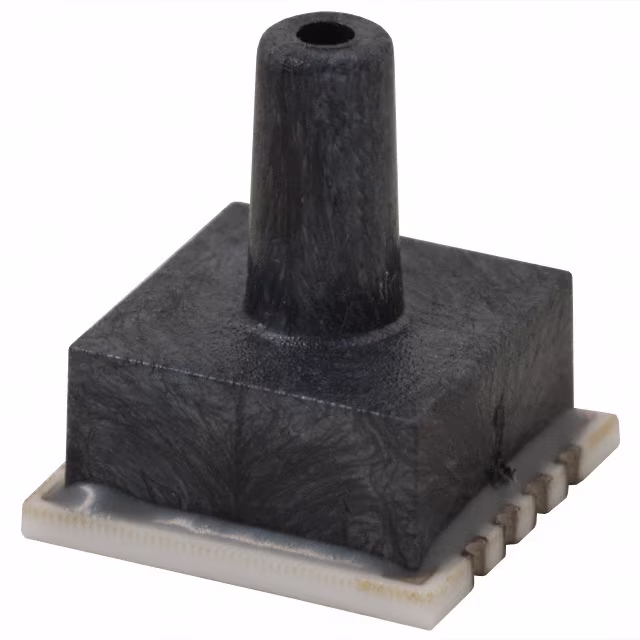

SCCP100GSMTPSENSOR 100PSIG 0.08" .225V |
4,679 |
|
Datasheet | SCC SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 85 mV ~ 225 mV | ±1% | - | Male - 0.08" (2.05mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
SCCP15ASMTLPSENSOR 15PSIA 0.09" .095V |
1,788 |
|
Datasheet | SCC SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±1% | - | Male - 0.09" (2.29mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

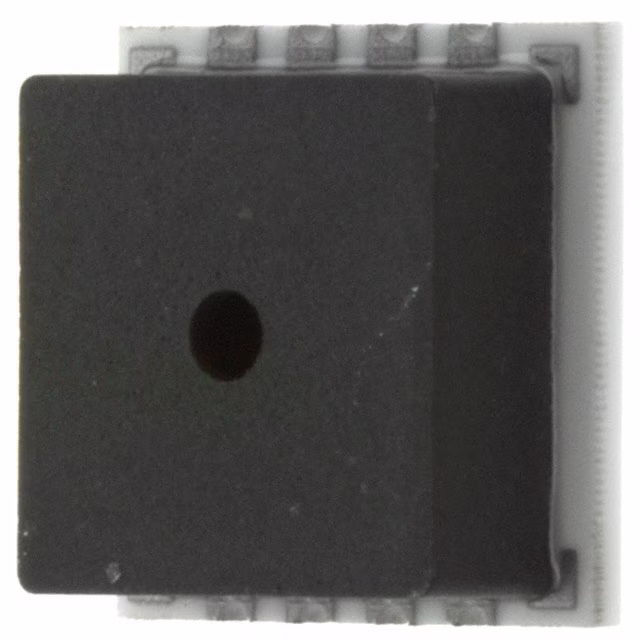

SX150ASMTSENSOR 150PSIA .105V |
1,904 |
|
Datasheet | SX SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.5% | 12V | - | No Port | - | SMD (SMT) Tab | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

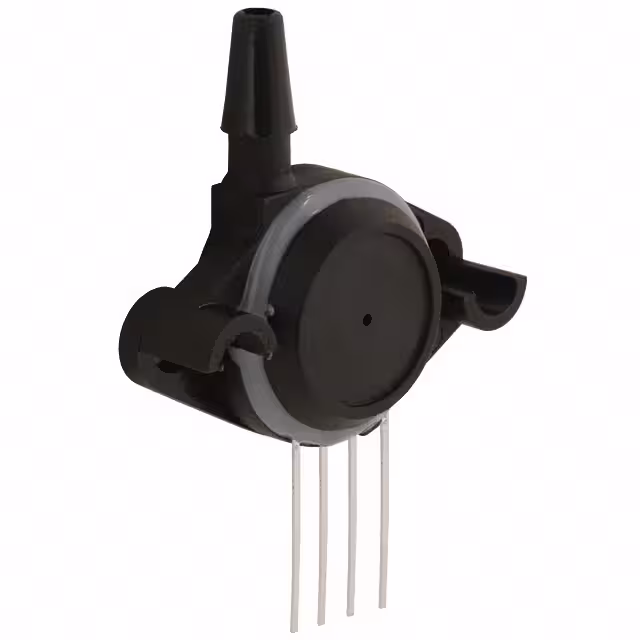

XPC01GTCSENSOR 1PSIG 0.19" .018V |
3,156 |
|
Datasheet | XPC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC150GTCSENSOR 150PSIG 0.19" .09V |
1,070 |
|
Datasheet | XPC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

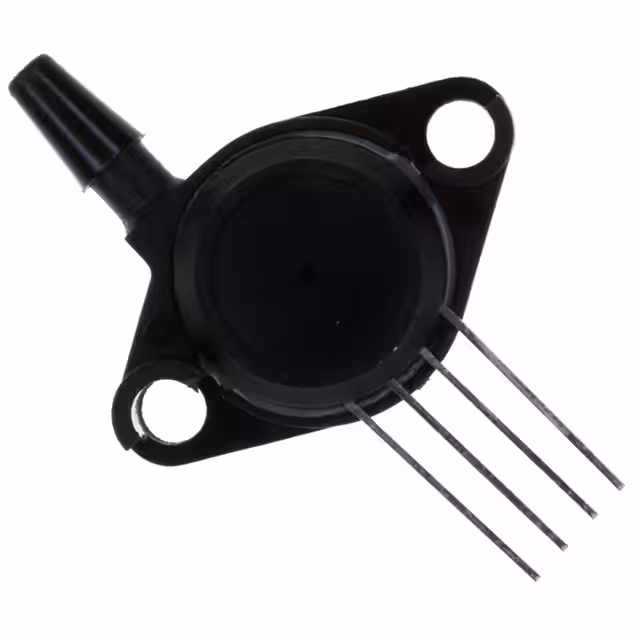

XPC15ATCSENSOR 15PSIA 0.19" .09V |
2,880 |
|
Datasheet | XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
