Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
40PC006G1ASENSOR 5.8PSIG 0.18" 4.5V |
2,862 |
|
Datasheet | 40PC | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±4% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 12.57PSI (86.67kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|
HSCMRRN2.5MD2A5SENSOR 0.04PSID 0.08" 12BIT 8SMD |
1,816 |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
TBFLPNS060PGUCVTBASIC FORCES SENSOR |
3,638 |
|
Datasheet | TBF | 6-SMD, No Lead | Bulk | Active | Medical Ventilation | Gauge | 60PSI (413.69kPa) | Analog Voltage | - | ±0.5% | 1.5V ~ 12V | - | No Port | Temperature Compensated | - | 145PSI (999.74kPa) | 0°C ~ 50°C | - | - | Surface Mount | 6-SMD |
|
HSCDRRD002ND2A3SENSOR 0.07PSID 0.08" 12BIT 8DIP |
3,438 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRD010MDSA3SENSOR 0.15PSID 0.08" 12BIT 8DIP |
2,892 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.15PSI (±1kPa) | SPI | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
24PCAFJ6GSENSOR 1PSIC 0.07" .045V |
3,833 |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±1% | 10V ~ 12V | Male - 0.07" (1.78mm) Tube | Needle | - | - | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

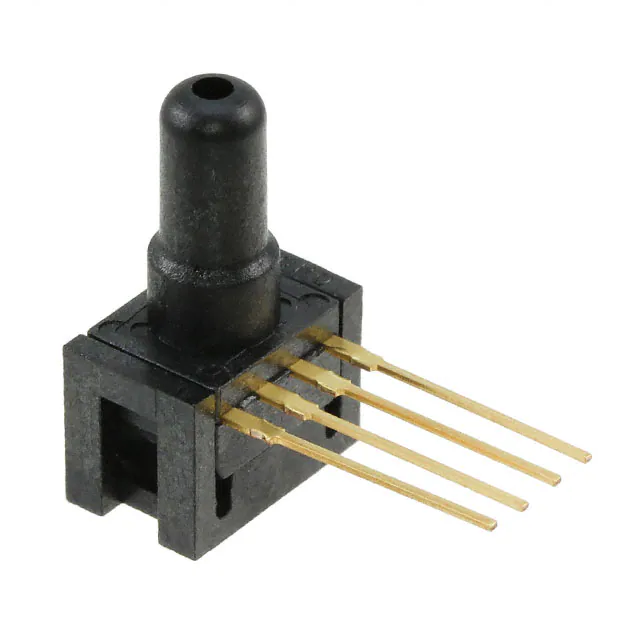

24PCCFA6ASENSOR 15PSIA 0.2" |
4,219 |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Active | Board Mount | Absolute | 2PSI ~ 15PSI (13.79kPa ~ 103.42kPa) | Wheatstone Bridge | -200 mV ~ 0 mV (10V) | ±2% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | - | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCDRRN010NGAA5SENSOR 0.36PSIG 0.08" 4.5V 8DIP |
1,680 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10.84PSI (74.75kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCDANN025MDSA3SENS 362.59PSID 0.19" 12BIT DIP |
2,348 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | 362.59PSI (2500kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.33PSI (±85kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
19C200PA5KSENSOR 200PSIA 1/4"NPT 0.1V |
1,702 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
