Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPC60AHSENSOR 60PSIA .09V |
3,286 |
|
Datasheet | CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | - | No Port | Temperature Compensated | - | 180PSI (1241.06kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
HSCSAAD020ND2A3SENSOR 0.72PSID 0.19" 12BIT 4SIP |
2,637 |
|
Datasheet | TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±0.72PSI (±4.96kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCDRRN010ND7A3SENSOR 0.36PSID 0.08" 12BIT 8DIP |
2,327 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.36PSI (±2.49kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCDRNN025MGAA5SENSOR 0.36PSIG 0.08" 4.5V 8DIP |
2,726 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10.88PSI (75kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
24PC01SMTTSENSOR 1PSID 0.07" .045V |
1,118 |
|
Datasheet | 24PC SMT | 4-SMD Module | Bulk | Active | - | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±0.4% | 2.5V ~ 12V | Male - 0.07" (1.88mm) Tube, Dual | Barbless | - | Gull Wing | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
HSCDDRV015PDAA5SENSOR 15PSID 0.08" 4.5V 8DIP |
3,977 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±15PSI (±103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

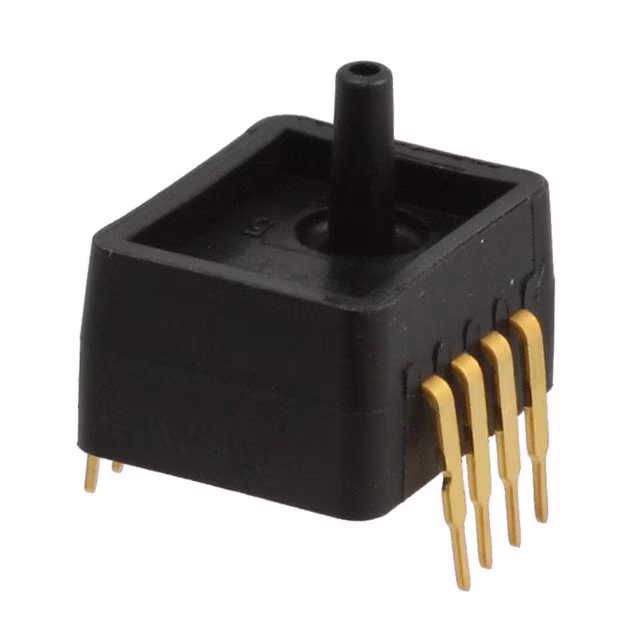

ASDXAVX010NG7A5SENSOR 0.36PSIG 0.09" 12BIT |
3,534 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube | Barbless | Temperature Compensated | PC Pin | 0.72PSI (4.96kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|

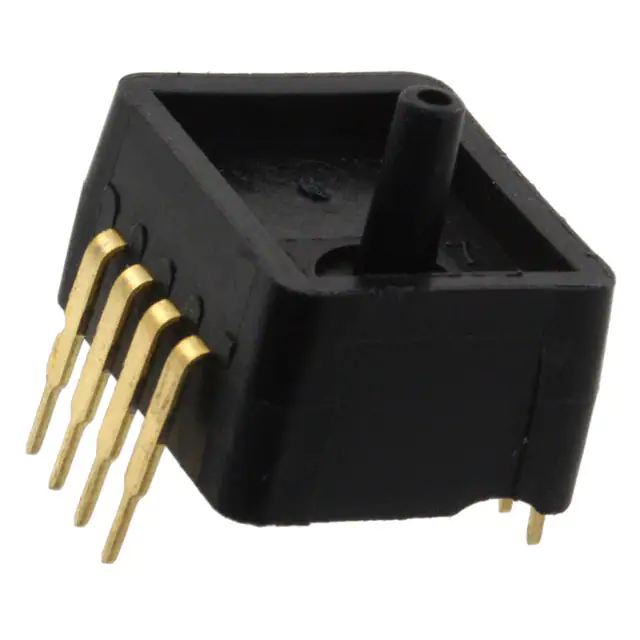

ASDXAVX010NGAA5SENSOR 0.36PSIG 0.09" 4.5V |
4,740 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube | Barbless | Temperature Compensated | PC Pin | 0.72PSI (4.96kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|

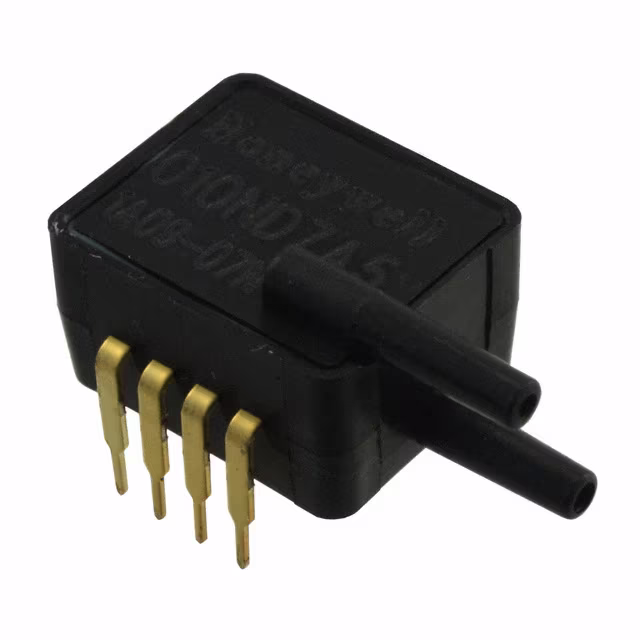

ASDXRRX010ND7A5SENSOR 0.36PSID 0.09" 12BIT |
4,098 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | ±0.36PSI (±2.49kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±0.72PSI (±4.96kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
SSCSSNT100PGAA5SENSOR 100PSIG 4.5V 4SIP |
3,140 |
|
Datasheet | TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
