Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS20-1000-C2PWR XFMR LAMINATED 20VA TH |
1,353 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms | 0.8 lb (362.87 g) |
|
F-325XPWR XFMR LAMINATED 18.9VA CHAS |
3,797 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 12.6V | 1.5A | Dual | Single | Yes | 18.9VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
F48-750PWR XFMR LAMINATED 36VA TH |
4,673 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 1.5A, Series 750mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
FS48-400-C2PWR XFMR LAMINATED 20VA TH |
4,551 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 800mA, Series 400mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms | 0.8 lb (362.87 g) |
|
FS10-1200PWR XFMR LAMINATED 12VA TH |
3,844 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
FP56-200PWR XFMR LAMINATED 12VA TH |
4,371 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 400mA, Series 200mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms | 0.688 lb (312.07 g) |
|

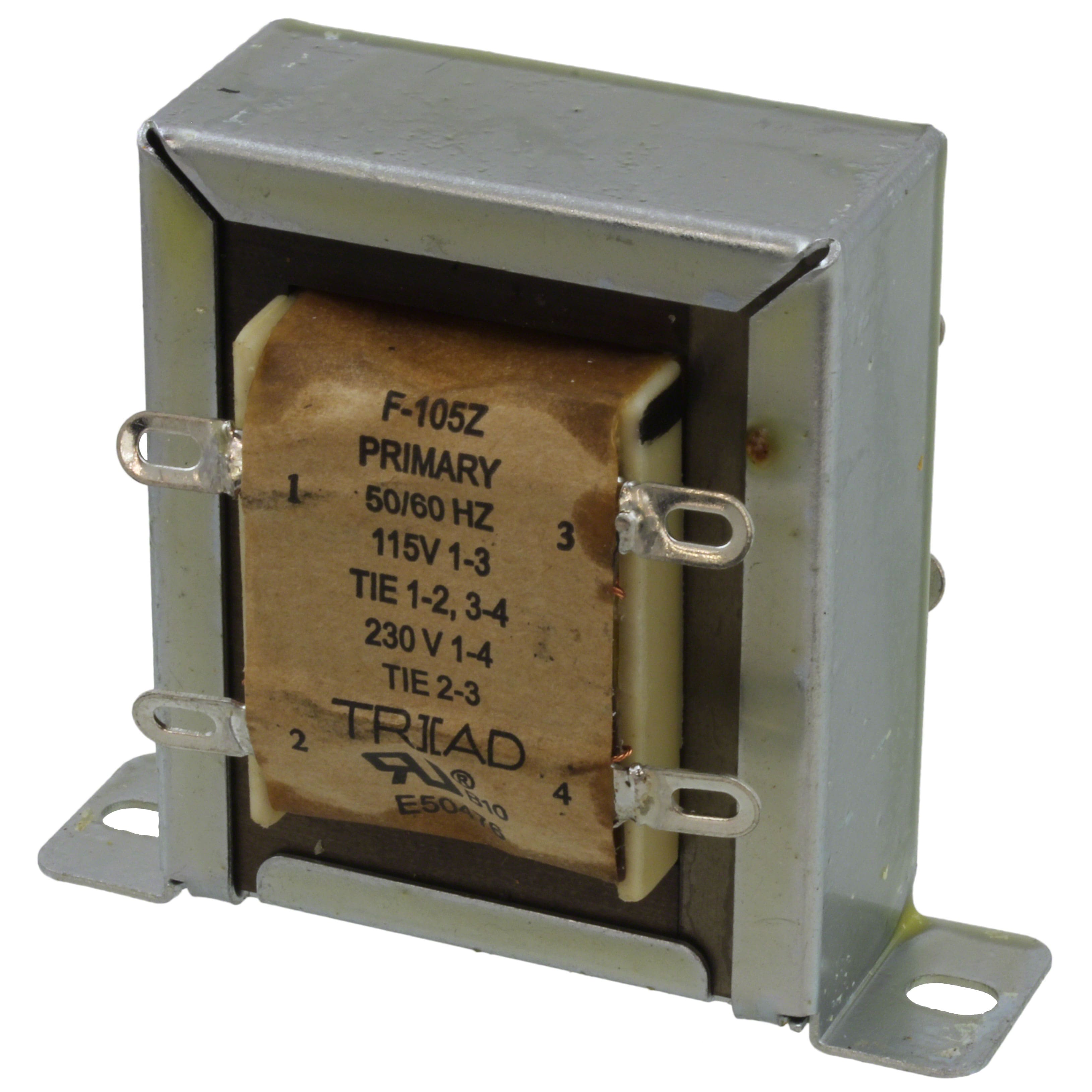

F-105ZPWR XFMR LAMINATED 12VA CHAS MT |
1,693 |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 6V, Series 12V | Parallel 2A, Series 1A | Dual | Dual | No | 12VA | Chassis Mount | Solder Lug | 73.02mm L x 44.45mm W | 60.32mm | 1500Vrms | 1 lb (453.59 g) |
|

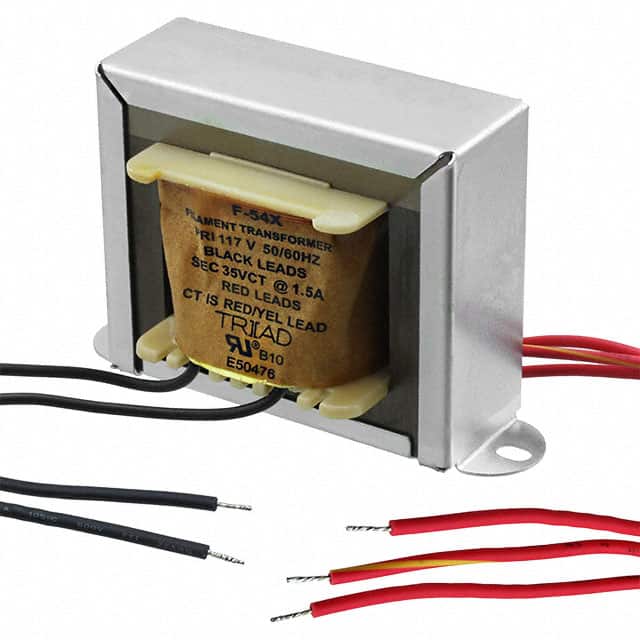

F-54XPWR XFMR LAMINATED 52.5VA CHAS |
2,556 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 35V | 800mA | Single | Single | Yes | 52.5VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms | 2.2 lbs (997.9 g) |
|
VPM240-100PWR XFMR TOROIDAL 25VA CHAS MT |
1,881 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 120V, Series 240V | Parallel 208mA, Series 104mA | Dual, Multiple Taps | Dual | No | 25VA | Chassis Mount | Wire Leads | 84.00mm Dia | 37.00mm | 4000Vrms | 1.1 lbs (499 g) |
|
VPS16-8100PWR XFMR LAMINATED 130VA CHAS MT |
1,554 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 16.2A, Series 8.1A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms | 4.1 lbs (1.9 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
