Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

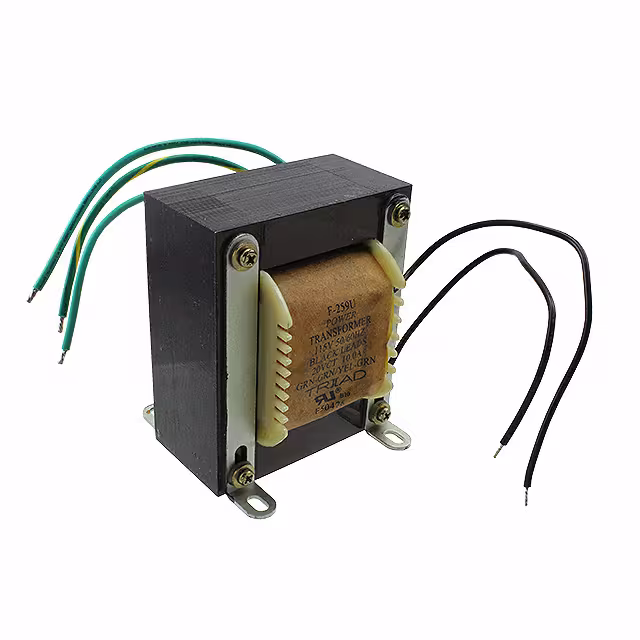

F-259UPWR XFMR LAMINATED 200VA CHAS MT |
1,450 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 20V | 10A | Single | Single | Yes | 200VA | Chassis Mount | Wire Leads | 87.30mm L x 88.90mm W | 104.77mm | 1500Vrms | 7.4 lbs (3.4 kg) |
|
VPT18-8800PWR XFMR TOROIDAL 160VA CHAS MT |
2,182 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
VPM240-31200PWR XFMR TOROIDAL 7500VA CHAS MT |
4,659 |
|
Datasheet | Toroidal Medical, VPM | Bulk | Active | Toroidal | 208V, 240V | Parallel 120V, Series 240V | Parallel 62.4A, Series 31.2A | Dual, Multiple Taps | Dual | No | 7500VA | Chassis Mount | Wire Leads | 330.00mm Dia | 140.00mm | 4000Vrms | 137 lbs (62.1 kg) |
|
F28-040-C2PWR XFMR LAMINATED 1.1VA TH |
2,365 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
F-133PPWR XFMR LAMINATED 1.5VA TH |
4,682 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 30V | Parallel 100mA, Series 50mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms | 0.219 lb (99.34 g) |
|
|
F20-055-C2PWR XFMR LAMINATED 1.1VA TH |
2,838 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
FS48-050-C2PWR XFMR LAMINATED 2.4VA TH |
2,670 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 100mA, Series 50mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms | 0.25 lb (113.4 g) |
|
F48-023PWR XFMR LAMINATED 1.1VA TH |
3,313 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 46mA, Series 23mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
F28-420-C2-BPWR XFMR LAMINATED 12VA TH |
3,007 |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 840mA, Series 420mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|

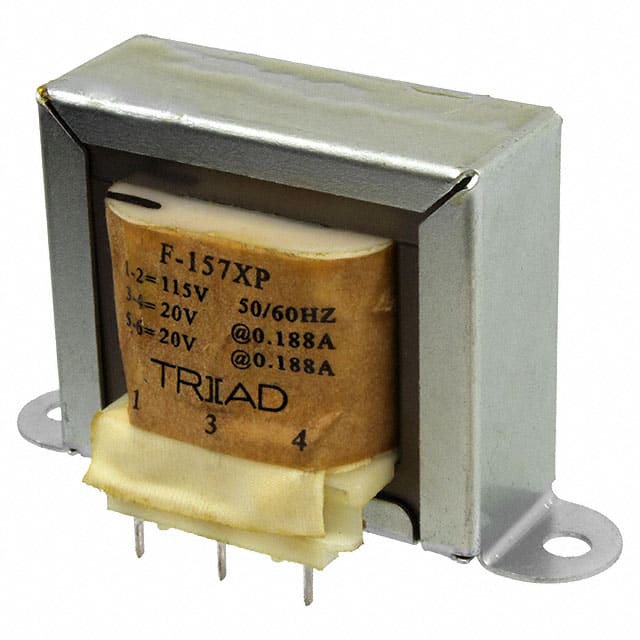

F-157XPPWR XFMR LAMINATED 7.5VA CHAS MT |
3,565 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 376mA, Series 188mA | Single | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
