Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-344XPWR XFMR LAMINATED 25.2VA CHAS |
2,636 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 12.6V | 2A | Dual | Single | Yes | 25.2VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
TCT40-06E07KPWR XFMR LAMINATED 40VA CHAS MT |
2,547 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 240V | 24V | 1.67A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
|

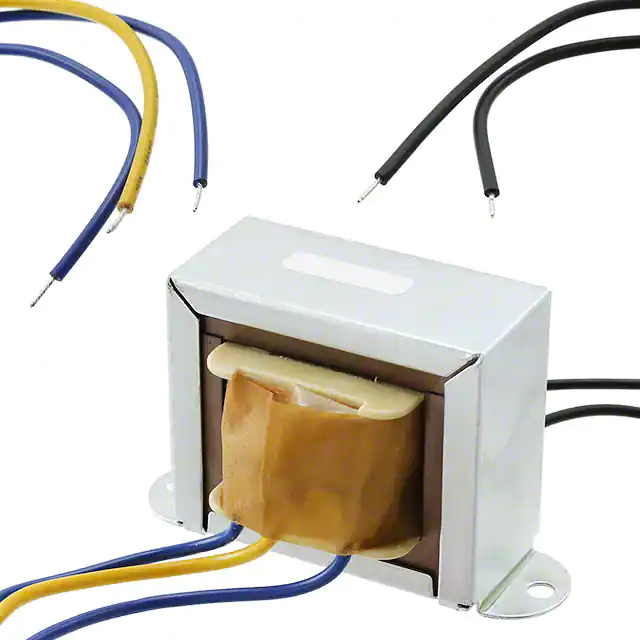

F-25XPWR XFMR LAMINATED 18.9VA CHAS |
1,362 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12.6V | 1.5A | Single | Single | Yes | 18.9VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
F-46XPWR XFMR LAMINATED 24VA CHAS MT |
4,984 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 1A | Single | Single | No | 24VA | Chassis Mount | Wire Leads | 82.55mm L x 53.97mm W | 49.20mm | 1500Vrms | 1.4 lbs (635 g) |
|
FP34-340PWR XFMR LAMINATED 12VA TH |
3,103 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 680mA, Series 340mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms | 0.688 lb (312.07 g) |
|
F-70XPWR XFMR LAMINATED 12.6VA CHAS |
4,736 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12.6V | 1A | Single | Single | Yes | 12.6VA | Chassis Mount | Wire Leads | 84.12mm L x 44.45mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
F-57XPWR XFMR LAMINATED 25.2VA CHAS |
3,561 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 117V | 25.2V | 1A | Single | Single | Yes | 25.2VA | Chassis Mount | Wire Leads | 80.56mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.5 lbs (680.4 g) |
|
F-59XPWR XFMR LAMINATED 24VA CHAS MT |
4,316 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 60V | 400mA | Single | Single | Yes | 24VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
F-16XPWR XFMR LAMINATED 18.9VA CHAS |
2,883 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 6.3V | 3A | Single | Single | Yes | 18.9VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 2500Vrms | 1.3 lbs (589.7 g) |
|
F-43XPWR XFMR LAMINATED 25.2VA CHAS |
3,008 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 6.3V | 4A | Single | Single | No | 25.2VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
