Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

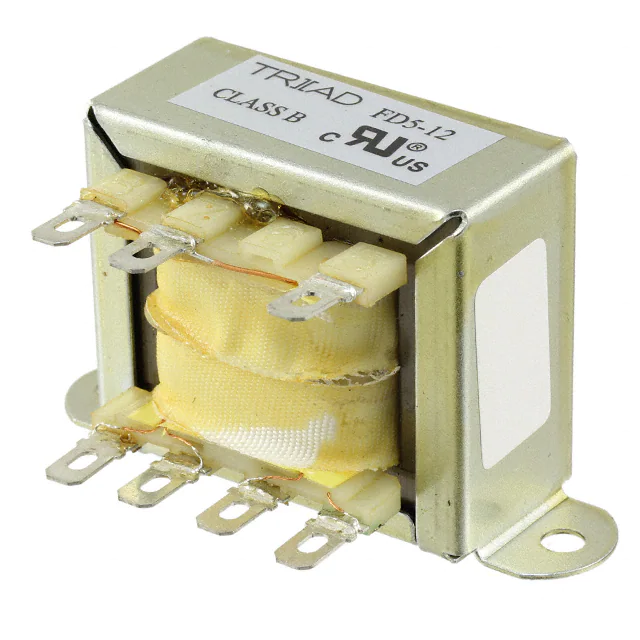

FD5-12PWR XFMR LAMINATED 12VA CHAS MT |
3,372 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 12.6V | 1A | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F-3117XPWR XFMR LAMINATED 9.6VA CHAS MT |
3,589 |
|
Datasheet | Single Secondary | Bulk | Active | Laminated Core | 115V, 230V | 24V | 400mA | Dual | Single | Yes | 9.6VA | Chassis Mount | Wire Leads | 71.42mm L x 38.10mm W | 41.28mm | 1500Vrms | 0.75 lb (340.19 g) |
|
VPL2-4000PWR XFMR LAMINATED 10.0VA CHAS |
1,040 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 2.5V | 4A | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|
VPL20-500PWR XFMR LAMINATED 10.0VA CHAS |
1,285 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 20V | 500mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|
|
VPL16-600PWR XFMR LAMINATED 10.0VA CHAS |
3,729 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 16V | 630mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|
VPL24-400PWR XFMR LAMINATED 10.0VA CHAS |
1,859 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 24V | 410mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|
VPL12-800PWR XFMR LAMINATED 10.0VA CHAS |
1,126 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 12.6V | 790mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|
F20-1000PWR XFMR LAMINATED 20VA TH |
4,272 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms | 0.8 lb (362.87 g) |
|
F28-1300-C2-BPWR XFMR LAMINATED 36VA TH |
4,562 |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
VPP10-2000PWR XFMR LAMINATED 20VA TH |
3,517 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms | 0.9 lb (408.23 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
