Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A41-25-36PWR XFMR LAMINATED 25VA CHAS MT |
447 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 54.40mm W | 58.70mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
DP-241-5-16PWR XFMR LAMINATED 12VA CHAS MT |
437 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 16V | 800mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 36.30mm W | 42.80mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
DP-241-5-36PWR XFMR LAMINATED 12VA CHAS MT |
101 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 36V | 350mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 36.30mm W | 42.80mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
DP-241-4-12PWR XFMR LAMINATED 6VA CHAS MT |
205 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 12.6V | 500mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.30mm L x 33.30mm W | 36.20mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
A41-25-28PWR XFMR LAMINATED 25VA CHAS MT |
295 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.86A, Series 900mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 54.40mm W | 58.70mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
LP-16-350PWR XFMR SEMI-TORO 6VA TH |
140 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 700mA, Series 350mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms | 0.438 lb (198.67 g) |
|
LP-30-200PWR XFMR SEMI-TORO 6VA TH |
275 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms | 0.438 lb (198.67 g) |
|
MPC-X-15PWR XFMR LAMINATED 10VA TH |
205 |
|
Datasheet | MPC | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 15V | Parallel 360mA, Series 50mA | Single | Dual | Yes | 10VA | Through Hole | PC Pin | 47.60mm L x 36.50mm W | 41.70mm | 1500Vrms | 0.56 lb (254.01 g) |
|

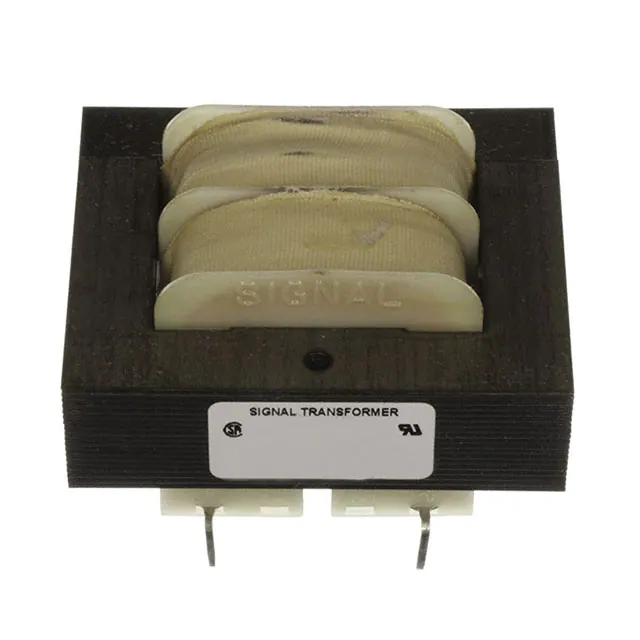

ST-6-20PWR XFMR LAMINATED 20VA TH |
286 |
|
Datasheet | ST | Box | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 36.90mm | 2500Vrms | 0.8 lb (362.87 g) |
|
14A-20-515PWR XFMR LAMINATED 20VA TH |
369 |
|
Datasheet | One-4-All™ | Bulk | Active | Laminated Core | 115V, 230V | 5V, ±15V | 750mA, 175mA | Dual | Dual | Yes | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.30mm | 4000Vrms | 0.9 lb (408.23 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
