Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
14A-2.5R-28PWR XFMR LAMINATED 2.5VA TH |
647 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 180mA, Series 90mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.30mm L x 36.50mm W | 28.60mm | 4000Vrms | 0.25 lb (113.4 g) |
|

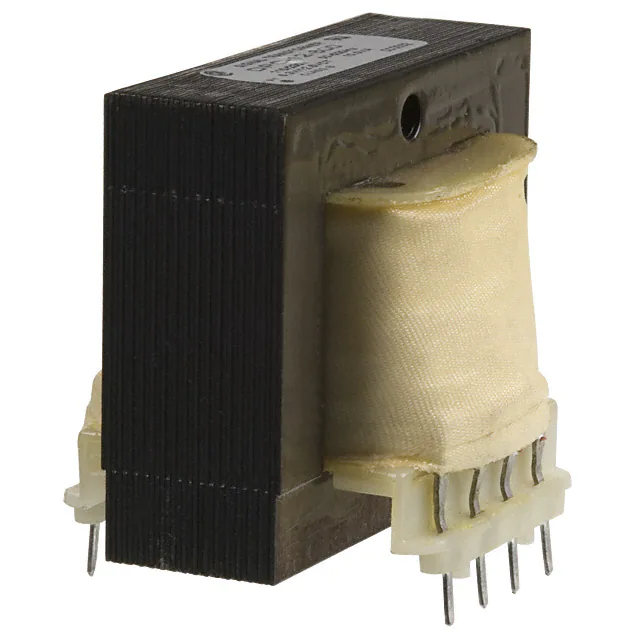

DPC-24-450PWR XFMR LAMINATED 10VA TH |
176 |
|
Datasheet | DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 900mA, Series 450mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 36.50mm W | 41.27mm | 1500Vrms | 0.563 lb (255.37 g) |
|
DST-3-16PWR XFMR LAMINATED 2.4VA TH |
1,177 |
|
Datasheet | DST | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.80mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
14A-5.0R-20PWR XFMR LAMINATED 5VA TH |
2,303 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 500mA, Series 250mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.30mm L x 36.50mm W | 34.90mm | 4000Vrms | 0.37 lb (167.83 g) |
|
ST-2-16PWR XFMR LAMINATED 1.1VA TH |
555 |
|
Datasheet | ST | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 24.60mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
ST-2-28PWR XFMR LAMINATED 1.1VA TH |
209 |
|
Datasheet | ST | Box | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 24.60mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
ST-3-36PWR XFMR LAMINATED 2.4VA TH |
700 |
|
Datasheet | ST | Box | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.80mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
ST-3-10PWR XFMR LAMINATED 2.4VA TH |
188 |
|
Datasheet | ST | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.80mm | 2500Vrms | 0.25 lb (113.4 g) |
|
DPC-34-35PWR XFMR LAMINATED 1.2VA TH |
227 |
|
Datasheet | DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 70mA, Series 35mA | Dual | Dual | No | 1.2VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.15mm | 1500Vrms | 0.188 lb (85.28 g) |
|
|
DPC-24-50PWR XFMR LAMINATED 1.2VA TH |
181 |
|
Datasheet | DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 100mA, Series 50mA | Dual | Dual | No | 1.2VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.15mm | 1500Vrms | 0.188 lb (85.28 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
