Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

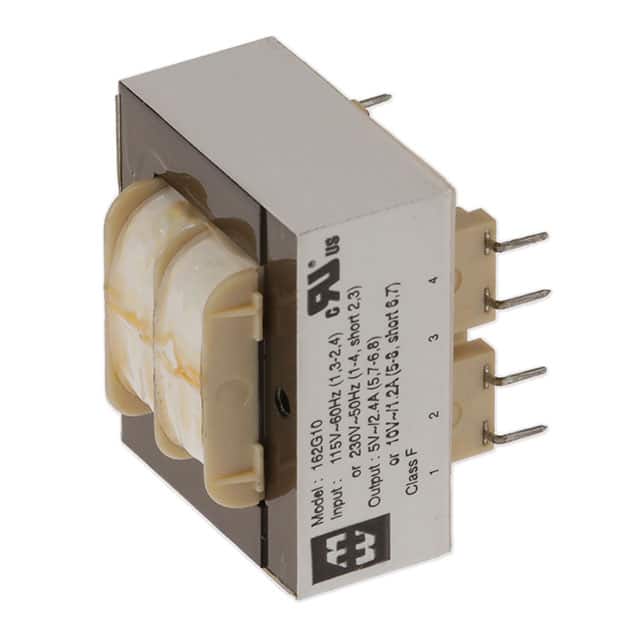

162G10PWR XFMR LAMINATED 12VA TH |
4,416 |
|
Datasheet | 162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms | 0.7 lb (317.51 g) |
|
162J20PWR XFMR LAMINATED 36VA TH |
4,535 |
|
Datasheet | 162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
186E20PWR XFMR LAMINATED 56VA CHAS MT |
2,030 |
|
Datasheet | 186 | Box | Active | Laminated Core | 115V, 230V | 20V | 2.8A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms | 1.8 lbs (816.5 g) |
|
229D34PWR XFMR SEMI-TORO 48VA TH |
1,037 |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 2.8A, Series 1.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.3 lbs (589.7 g) |
|
164J20PWR XFMR LAMINATED 36VA TH |
3,429 |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
166E20PWR XFMR LAMINATED 3VA CHAS MT |
3,130 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 20V | 150mA | Single | Single | Yes | 3VA | Chassis Mount | Wire Leads | 52.32mm L x 35.05mm W | 30.23mm | 2000Vrms | 0.3 lb (136.08 g) |
|
185D28PWR XFMR LAMINATED 43VA CHAS MT |
3,558 |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 3A, Series 1.5A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 56.39mm W | 68.07mm | 4000Vrms | 1.8 lbs (816.5 g) |
|
167Q6PWR XFMR LAMINATED 37.8VA CHAS |
3,607 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 6.3V | 6A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | 55.63mm L x 60.45mm W | 59.94mm | 2000Vrms | 1.4 lbs (635 g) |
|
266PA14PWR XFMR LAMINATED 84VA CHAS MT |
1,374 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 7V, Series 14V | Parallel 12A, Series 6A | Dual | Dual | No | 84VA | Chassis Mount | Wire Leads | 71.37mm L x 72.39mm W | 87.38mm | 2000Vrms | 4 lbs (1.8 kg) |
|
165U11PWR XFMR LAMINATED 165VA CHAS MT |
4,609 |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 11V | 15A | Single | Single | Yes | 165VA | Chassis Mount | Wire Leads | 95.25mm L x 82.55mm W | 79.50mm | 2000Vrms | 5.5 lbs (2.5 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
