Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
167P50PWR XFMR LAMINATED 250VA CHAS MT |
2,956 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 50V | 5A | Single | Single | Yes | 250VA | Chassis Mount | Wire Leads | 95.25mm L x 114.30mm W | 115.82mm | 2000Vrms | 8.5 lbs (3.9 kg) |
|
291BXPWR XFMR LAMINATED CHAS MT |
1,851 |
|
Datasheet | 291 | Box | Active | Laminated Core | 120V | 660V, 6V, 5V | 138mA, 3A, 3A | Single | Triple | Yes | - | Chassis Mount | Wire Leads | 71.45mm L x 103.20mm W | 87.33mm | - | 5.4 lbs (2.4 kg) |
|
|
167N70PWR XFMR LAMINATED 280VA CHAS MT |
3,258 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 70V | 4A | Single | Single | Yes | 280VA | Chassis Mount | Wire Leads | 95.25mm L x 114.30mm W | 115.82mm | 2000Vrms | 8.4 lbs (3.8 kg) |
|
226TPWR XFMR SEMI-TORO 20VA TH |
1,774 |
|
Datasheet | 226 | Bulk | Active | Semi-Toroidal | 115V | Parallel 20V, Series 40V | Parallel 1A, Series 500mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 43.94mm L x 34.29mm W | 20.32mm | - | 0.22 lb (99.79 g) |
|
|
226PPWR XFMR SEMI-TORO 20VA TH |
2,207 |
|
Datasheet | 226 | Bulk | Active | Semi-Toroidal | 115V | Parallel 26V, Series 13V | Parallel 1.54A, Series 770mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 43.94mm L x 34.29mm W | 20.32mm | - | 0.22 lb (99.79 g) |
|

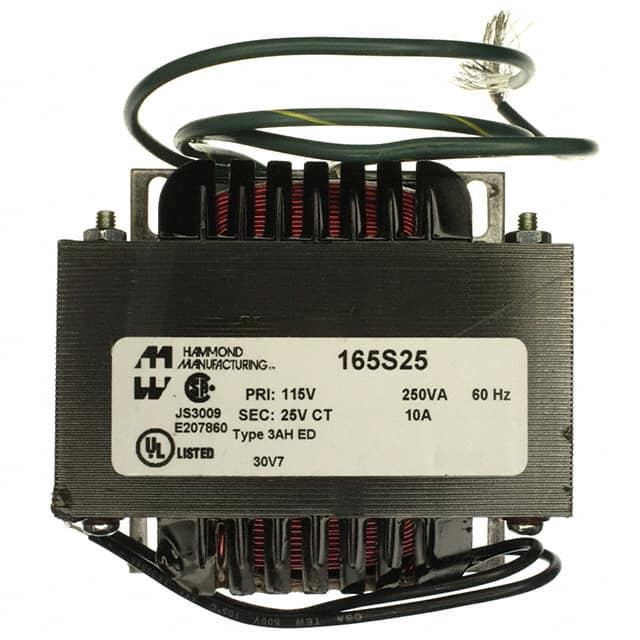

165S25PWR XFMR LAMINATED 250VA CHAS MT |
3,475 |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 25V | 10A | Single | Single | Yes | 250VA | Chassis Mount | Wire Leads | 95.25mm L x 101.60mm W | 79.50mm | 2000Vrms | 5.5 lbs (2.5 kg) |
|
165P60PWR XFMR LAMINATED 300VA CHAS MT |
4,258 |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 60V | 5A | Single | Single | Yes | 300VA | Chassis Mount | Wire Leads | 114.30mm L x 88.90mm W | 95.25mm | 2000Vrms | 9 lbs (4.1 kg) |
|
370CAXPWR XFMR LAMINATED 66VA CHAS MT |
1,670 |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 500V, 6.3V, 5V | 81mA, 2.5A, 2A | Dual, Multiple Taps | Four | Yes | 66VA | Chassis Mount | Wire Leads | 84.07mm L x 71.37mm W | 86.89mm | 2000Vrms | 2.5 lbs (1.1 kg) |
|
|
167N80PWR XFMR LAMINATED 320VA CHAS MT |
2,575 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 80V | 4A | Single | Single | Yes | 320VA | Chassis Mount | Wire Leads | 95.25mm L x 114.30mm W | 115.82mm | 2000Vrms | 12 lbs (5.4 kg) |
|
274BXPWR XFMR LAMINATED 198VA CHAS MT |
2,075 |
|
Datasheet | 274 | Bulk | Active | Laminated Core | 115V | 750V, 6.3V, 5V | 201mA, 6A, 3A | Single | Triple | Yes | 198VA | Chassis Mount | Wire Leads | 79.50mm L x 101.60mm W | 96.77mm | 2000Vrms | 6.8 lbs (3.1 kg) |
