Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K40P332RELAY GEN PURPOSE SPST 35A 26.5V |
3,757 |
|
Datasheet | K40, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPST-NO (1 Form A) | 35 A | 5000VDC - Nom | - | 331.3 mA | Latching, Dual Coil | - | Wire Leads | - | - | 16 VDC | - | 1 ms | - | -55°C ~ 125°C | - | General Purpose | - | - |
|

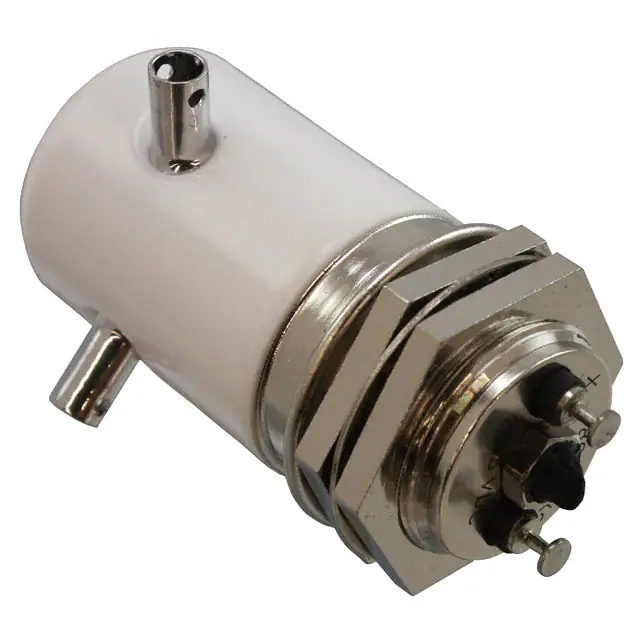

KC-16RELAY GEN PURPOSE SPDT 12A 26.5V |
2,457 |
|
Datasheet | KC, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 12 A | - | - | 147.2 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 16 VDC | 1 VDC | 15 ms | 9 ms | -55°C ~ 125°C | - | General Purpose | - | - |
|
FC-335-SY4RELAY GEN PURPOSE 3PST 35A 28V |
4,353 |
|
Datasheet | FC-335, CII | Bulk | Active | Chassis Mount | 28VDC | 3PST-NO (DM) (3 Form X) | 35 A | 115VAC, 28VDC - Nom | - | 750 mA | Non Latching | - | Screw Terminal | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 20 ms | 10 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|
FCA-410-1524MRELAY GEN PURPOSE 4PDT 10A 28V |
4,094 |
|
Datasheet | FCA-410, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | 96.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
HC-4RELAY GEN PURPOSE SPDT 15A 26.5V |
3,962 |
|
Datasheet | HC, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 15 A | - | - | 79.1 mA | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | General Purpose | - | - |
|

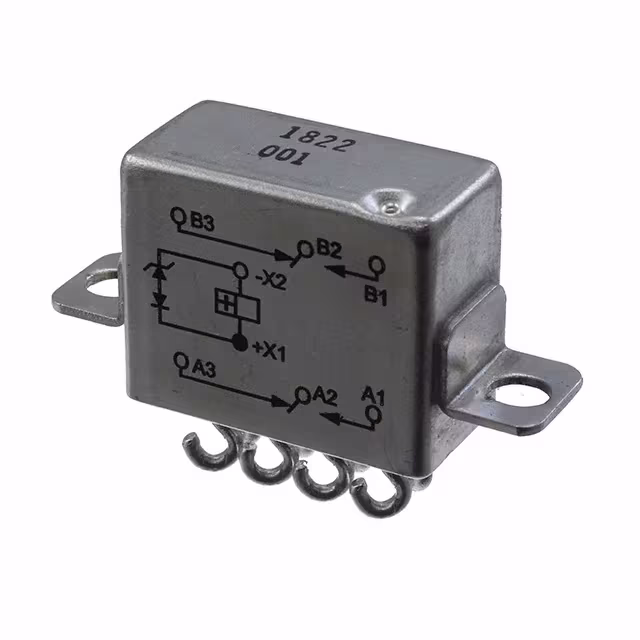

FCB-205-0223MRELAY GEN PURPOSE DPDT 5A 28V |
4,253 |
|
Datasheet | FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | MIL-R-83536/2 |
|

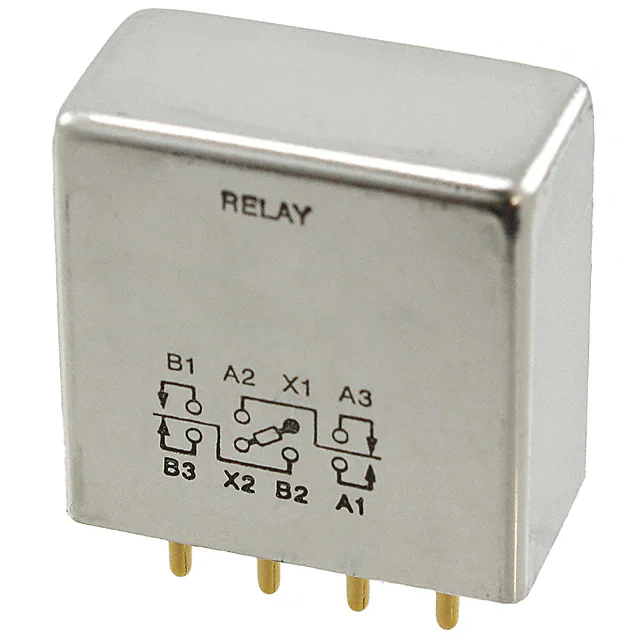

B07D034BB2-0120RELAY GEN PURPOSE DPDT 10A 12V |
4,269 |
|
Datasheet | 07, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 160 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.5 VDC | 0.8 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | MIL-R-5757/23 |
|

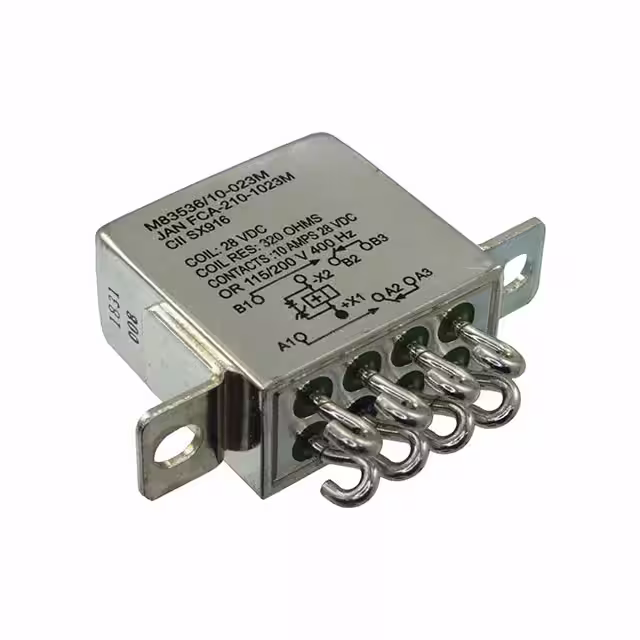

FCA-210-1023MRELAY DPDT 10A 28V |
1,717 |
|
Datasheet | FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | - | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

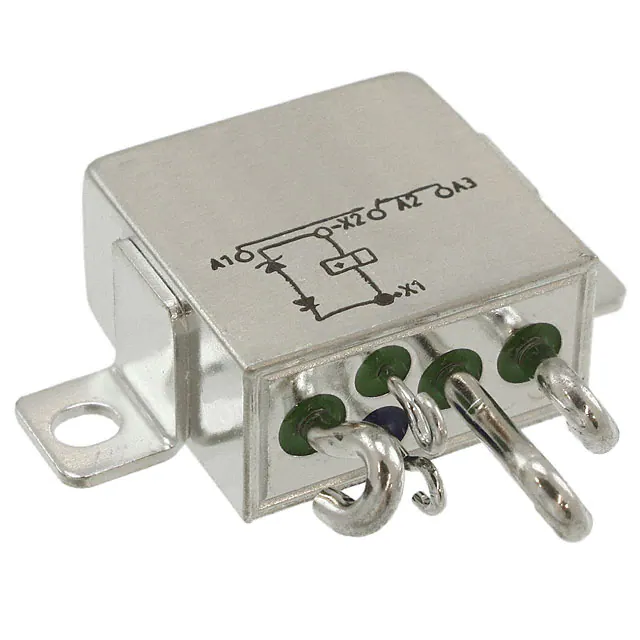

FCA-125-24RELAY GEN PURPOSE SPDT 25A 28V |
1,529 |
|
Datasheet | FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 875 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | MIL-R-6106/19 |
|
K81B335RELAY GEN PURPOSE SPST 5A 26.5V |
2,374 |
|
Datasheet | K81B, KILOVAC | Bulk | Active | Through Hole | 26.5VDC | SPST-NC (1 Form B) | 5 A | 10000VDC - Nom | - | 91.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
