Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K41C334RELAY GEN PURPOSE SPDT 30A 26.5V |
3,739 |
|
Datasheet | K41, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | 91.4 mA | Non Latching | - | Wire Leads | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | General Purpose | - | - |
|
K81C245RELAY GEN PURPOSE SPDT 5A 12V |
2,882 |
|
Datasheet | K81C, KILOVAC | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 10000VDC - Max | - | 171.4 mA | Non Latching | - | PC Pin, Wire Leads | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | General Purpose | - | - |
|
HC-3RELAY GEN PURPOSE SPDT 18A 26.5V |
1,867 |
|
Datasheet | HC, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 18 A | 3500VDC - Max | - | 79.1 mA | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | General Purpose | - | - |
|

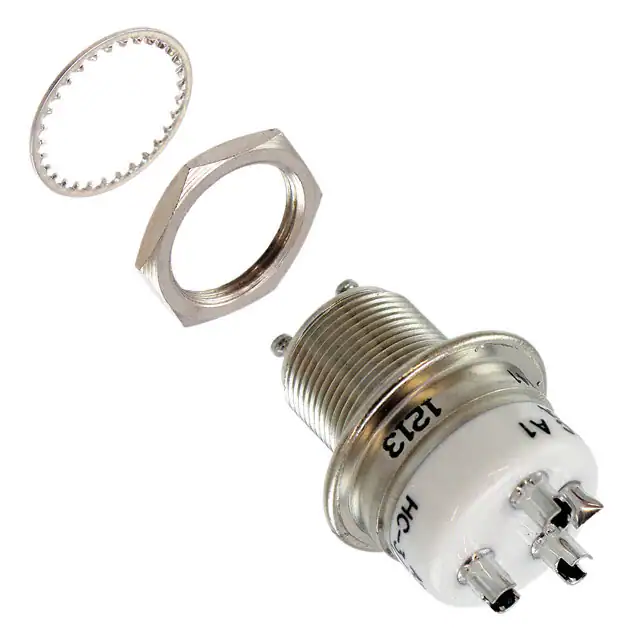

HC-3/12VDCRELAY GEN PURPOSE SPDT 18A 12V |
128 |
|
Datasheet | HC, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPDT (1 Form C) | 18 A | 3500VDC - Max | - | 150 mA | Non Latching | - | Solder Turret | - | - | 8 VDC | 0.5 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | General Purpose | - | - |
|
FCB-405-0620MRELAY GEN PURPOSE 4PDT 5A 28V |
4,835 |
|
Datasheet | FCB-405, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | 70 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 6 ms | 6 ms | -70°C ~ 125°C | - | General Purpose | Military | MIL-R-83536/6 |
|
FCB-205-0224LFCB-205-0224L=M83536/2-024L |
3,562 |
|
Datasheet | FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
FCA-210-0926MRELAY GEN PURPOSE DPDT 10A 28V |
1,690 |
|
Datasheet | FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | MIL-R-83536/9 |
|
FCA-125-HX3RELAY GEN PURPOSE SPDT 25A 28V |
2,207 |
|
Datasheet | FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 875 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
FCA-210-1026MRELAY GEN PURPOSE DPDT 10A 28V |
2,423 |
|
Datasheet | FCA-210, CII | Tray | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
FCA-210-0923MRELAY GEN PURPOSE DPDT 10A 28V |
4,181 |
|
Datasheet | FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | MIL-R-83536/9 |
