Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

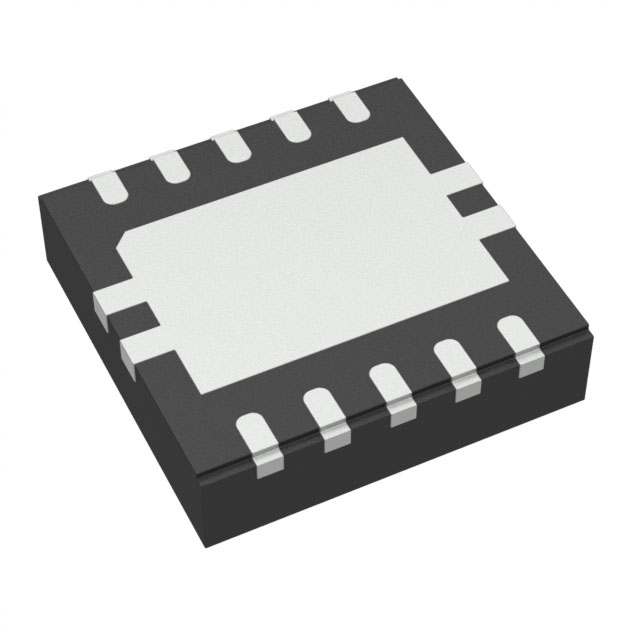

NCV8535ML300R2GIC REG LINEAR 3V 500MA 10DFNW |
3,000 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3V | - | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 10-DFNW (3x3) |
|
|
NCV8535ML330R2GIC REG LINEAR 3.3V 500MA 10DFNW |
2,930 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 10-DFNW (3x3) |
|
|
NCV8535MLADJR2GIC REG LIN POS ADJ 500MA 10DFNW |
2,300 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 12V | 1.25V | 10V | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 10-DFNW (3x3) |
|
XRP29302ETBTR-LIC REG LINEAR POS ADJ 3A TO263-5 |
940 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 16V | 1.25V | 16V | 0.8V @ 3A | 3A | - | - | - | Enable | Over Current, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
MAX1792EUA18/V+IC REG LIN POS ADJ 500MA 8UMAX |
3,934 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (1.8V) | 5V | - | 500mA | 250 µA | - | - | Enable, Reset | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-uMAX-EP|8-uSOP-EP |
|
LDL40PURY200 MA LOW DROPOUT LDO |
2,835 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 12V | 1V @ 200mA | 200mA | 5 µA | 500 µA | 65dB (1kHz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
BD15GC0VEFJ-ME21A 1.5V, FIXED OUTPUT, HIGH-ACCU |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 1.5V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD25GC0VEFJ-ME21A 2.5V, FIXED OUTPUT, HIGH-ACCU |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 2.5V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD30GC0VEFJ-ME21A 3V, FIXED OUTPUT, HIGH-ACCURA |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 3V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD60GC0VEFJ-ME21A 6V, FIXED OUTPUT, HIGH-ACCURA |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 6V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD90GC0VEFJ-ME21A 9V, FIXED OUTPUT, HIGH-ACCURA |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 9V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD18GC0VEFJ-ME21A 1.8V, FIXED OUTPUT, HIGH-ACCU |
2,498 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 1.8V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD80GC0VEFJ-ME21A 8V, FIXED OUTPUT, HIGH-ACCURA |
2,495 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 8V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD70GC0VEFJ-ME21A 7V, FIXED OUTPUT, HIGH-ACCURA |
2,494 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 7V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD00GC0VEFJ-ME21A VARIABLE OUTPUT, HIGH-ACCURAC |
2,490 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 14V | 1.5V | 13V | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BDJ0GC0VEFJ-ME21A 10V, FIXED OUTPUT, HIGH-ACCUR |
2,470 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 10V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD33GC0VEFJ-ME21A 3.3V, FIXED OUTPUT, HIGH-ACCU |
2,460 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 3.3V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BDJ2GC0VEFJ-ME21A 12V, FIXED OUTPUT, HIGH-ACCUR |
2,400 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 12V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD50GC0VEFJ-ME21A 5V, FIXED OUTPUT, HIGH-ACCURA |
1,934 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 5V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
RTQ2527CGQW(2)IC ULTRA-LOW-DROPOUT LDO ADJ 3A |
1,500 |
|
Datasheet | - | 20-WQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.18V @ 3A | 3A | 2 mA | - | 60dB ~ 30dB (1kHz ~ 300kHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-WQFN (5x5) |
