Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BDJ0GA5VEFJ-ME2500MA 10V, FIXED OUTPUT, HIGH-AC |
2,485 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 10V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
MAX8866TEUA+IC REG LIN POS ADJ 100MA 8UMAX |
3,472 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Adjustable (Fixed) | 2 | 5.5V | 1.25V (3.15V) | 5.5V | 0.12V @ 50mA, 0.12V @ 50mA | 100mA | 270 µA | - | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
NCP171AMX100080TCGIC REG LINEAR 1V 80MA 4XDFN |
6,000 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1V | - | - | 80mA | 95 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1.2x1.2) |
|
NCV8570BMN280R2GIC REG LINEAR 2.8V 200MA 6DFN |
3,000 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.205V @ 200mA | 200mA | 110 µA | 130 µA | 82dB ~ 63dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2.2) |
|
|
NCV8570BMN250R2GIC REG LINEAR 2.5V 200MA 6DFN |
2,935 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.23V @ 200mA | 200mA | 110 µA | 130 µA | 82dB ~ 63dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2.2) |
|
BD30GC0JEFJ-E21A 3V, FIXED OUTPUT, HIGH-ACCURA |
2,500 |
|
Datasheet | BDxxGC0JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 3V | - | 0.92V @ 1A | 1A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
MIC37101-1.5YM-TRIC REG LINEAR 1.5V 1A 8SOIC |
2,239 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.5V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
AP2115R5A-3.3TRG1IC REG LINEAR 3.3V 1A SOT89-5 |
990 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.75V @ 1A | 1A | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
TPS74801QWDRCRQ1TPS74801QWDRCRQ1 |
2,999 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.165V @ 1.5A | 1.5A | 50 µA | - | 60dB ~ 30dB (1kHz ~ 300kHz) | Current Limit | Over Temperature | -40°C ~ 105°C | - | - | Surface Mount | 10-VSON (3x3) |
|
RT9078-10GJ5IC REG LDO 0.3A LOW IQ TSOT-23-5 |
2,958 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.96V @ 300mA | 300mA | 4 µA | - | - | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
|
RT9078-30GJ5IC REG LDO 0.3A LOW IQ TSOT-23-5 |
2,943 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 300mA | 300mA | 4 µA | - | - | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|

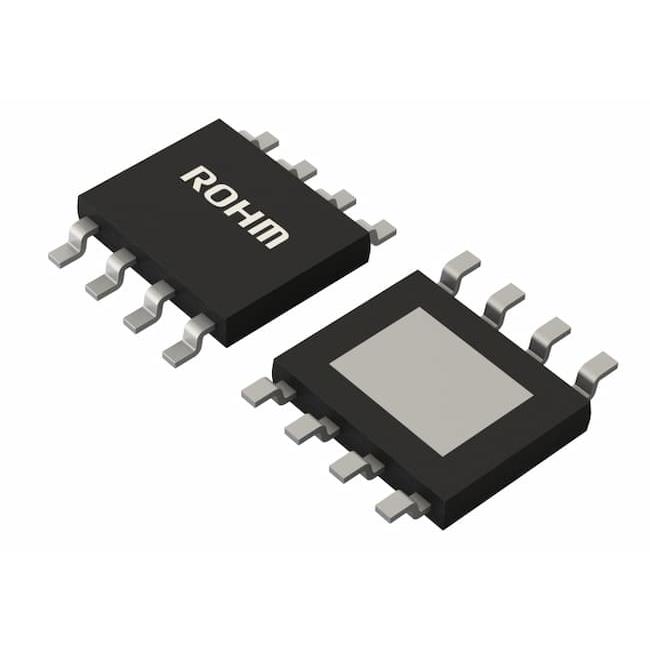

BD900N1WEFJ-CE2NANO CAP, QUICUR, |
950 |
|
Datasheet | BD9xxN1-C | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | 1V | 18V | 1.8V @ 150mA | 150mA | 60 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
LM2936QMPX-5.0/NOPBIC REG LINEAR 5V 50MA SOT223-4 |
2,000 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 9 µA | 2.5 mA | 60dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223-4 |
|
MCP1827T-1802E/ETIC REG LINEAR 1.8V 1.5A 5DDPAK |
545 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.6V @ 1.5A | 1.5A | 220 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
TLE46782ELXUMA1IC REG LINEAR 5V 200MA SSOP-14-2 |
5,000 |
|
Datasheet | OPTIREG™ | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.3V @ 150mA | 200mA | 80 µA | 6 mA | 65dB (100Hz) | Reset, Watchdog | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SSOP-14-2 |
|
TPS76425DBVRIC REG LINEAR 2.5V 150MA SOT23-5 |
2,815 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.5V | - | 0.6V @ 150mA | 150mA | 100 µA | 140 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
BD15HC0VEFJ-ME21A 1.5V, FIXED OUTPUT, HIGH-ACCU |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.5V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD25HC0VEFJ-ME21A 2.5V, FIXED OUTPUT, HIGH-ACCU |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 2.5V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD30HC0VEFJ-ME21A 3V, FIXED OUTPUT, HIGH-ACCURA |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD33HC0VEFJ-ME21A 3.3V, FIXED OUTPUT, HIGH-ACCU |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3.3V | - | 1.2V @ 1A | 1A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
