Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS70918QDBVRQ1IC REG LINEAR 1.8V 150MA SOT23-5 |
972 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 1.8V | - | - | 150mA | 2.05 µA | 350 µA | 80dB ~ 52dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
MAX16999AUA09+IC REG LINEAR 0.9V 100MA 8UMAX |
1,084 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 5.5V | 0.9V | - | - | 100mA | 20 µA | - | 70dB ~ 40dB (100Hz ~ 100kHz) | Enable, Power On Reset, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-uMax-EP |
|
XC6220B10BMR-GIC REG LINEAR 1.05V 700MA SOT25 |
3,000 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.05V | - | 0.405V @ 300mA | 700mA | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6220B11BMR-GIC REG LINEAR 1.15V 700MA SOT25 |
3,000 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.15V | - | 0.305V @ 300mA | 700mA | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
NCV8705MW28TCGIC REG LINEAR 2.8V 500MA 8DFN |
3,000 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.35V @ 500mA | 500mA | 25 µA | - | 73dB ~ 56dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-DFN (3x3) |
|
|
XC6220D331MR-GIC REG LINEAR 3.3V 1A SOT25 |
2,965 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.655V @ 1A | 1A | 28.75 µA | 118.75 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
NCV8705MW18TCGIC REG LINEAR 1.8V 500MA 8DFN |
2,940 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 500mA | 25 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-DFN (3x3) |
|
BD00HC5JEFJ-E21.5A VARIABLE OUTPUT, HIGH-ACCUR |
2,500 |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 8V | 1.5V | 7V | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
NCV662SQ50T1GIC REG LINEAR 5V 100MA SC82AB |
3,000 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.3V @ 100mA | 100mA | 1 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-82AB |
|
|
NCV662SQ30T1GIC REG LINEAR 3V 100MA SC82AB |
2,800 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.42V @ 100mA | 100mA | 1 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-82AB |
|
LP2950ACZ-3.0RAGIC REG LINEAR 3V 100MA TO92-3 |
2,000 |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|

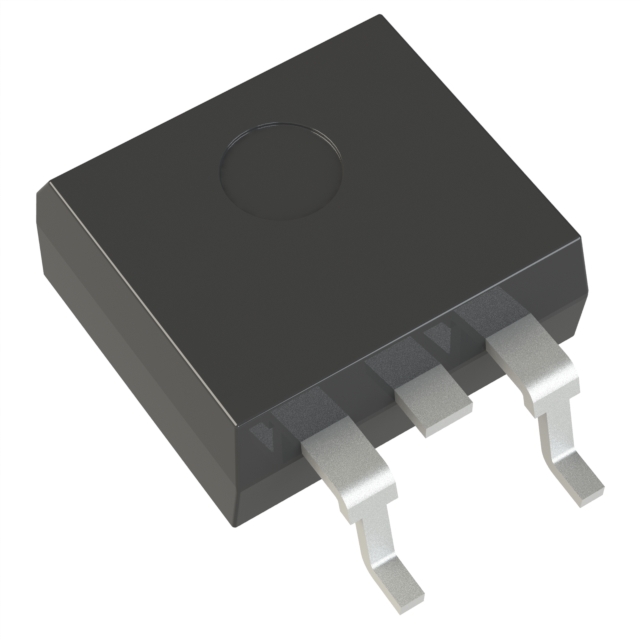

MC7915ACD2TR4GANA 1A 15V NEGATIVE VREG |
1,348 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A | 1A | 8 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | D2PAK-3 |
|
AP7583AQ-FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
5,018 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | 1.2V | 5V | 0.7V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
TPL905212-S5TR-SLINEAR VOLTAGE REGULATOR IC POSI |
3,000 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-5 |
|
|
TPL905215-S5TR-SLINEAR VOLTAGE REGULATOR IC POSI |
3,000 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-5 |
|
|
TPL905236-S5TR-SLINEAR VOLTAGE REGULATOR IC FIXE |
3,000 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-5 |
|
|
TPL905230-S5TR-SLINEAR VOLTAGE REGULATOR IC POSI |
3,000 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-5 |
|
NCP3334AMTADJTBGIC REG LIN POS ADJ 500MA 8WDFN |
2,992 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 12V | 1.178V | 10V | 0.34V @ 500mA | 500mA | 180 µA | 10 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | - | - | Surface Mount | 8-WDFN (3x3) |
|
|
XC6220B321MR-GIC REG LINEAR 3.2V 1A SOT25 |
2,990 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.2V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
AP7583AQ-33FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
2,977 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.7V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
