Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS72215DBVTIC REG LINEAR 1.5V 50MA SOT23-5 |
608 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.1V @ 50mA | 50mA | 120 µA | 550 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
NCV8135AMT120TBGIC REG LINEAR 1.2V 500MA 6WDFN |
2,607 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.1V @ 500mA | 500mA | 55 µA | - | 73dB ~ 90dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
|
NCV8135BMT040TBGIC REG LINEAR 0.4V 500MA 6WDFN |
2,950 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.4V | - | 0.1V @ 500mA | 500mA | 55 µA | - | 73dB ~ 90dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
|
NCV8135AMT040TBGIC REG LINEAR 0.4V 500MA 6WDFN |
2,949 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.4V | - | 0.1V @ 500mA | 500mA | 55 µA | - | 73dB ~ 90dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
TPL905218-DF1RLINEAR VOLTAGE REGULATOR IC FIXE |
10,540 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.3V @ 500mA | 500mA | - | - | 88dB (10kHz), 82dB ~ 45dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
LM1117LD-2.5/NOPBIC REG LINEAR 2.5V 800MA 8WSON |
748 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 2.5V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
XC6901D301MR-GIC REG LINEAR -3V 200MA SOT25 |
6,413 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -12.4V | -3V | - | 0.151V @ 20mA | 200mA | 200 µA | - | 45dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|

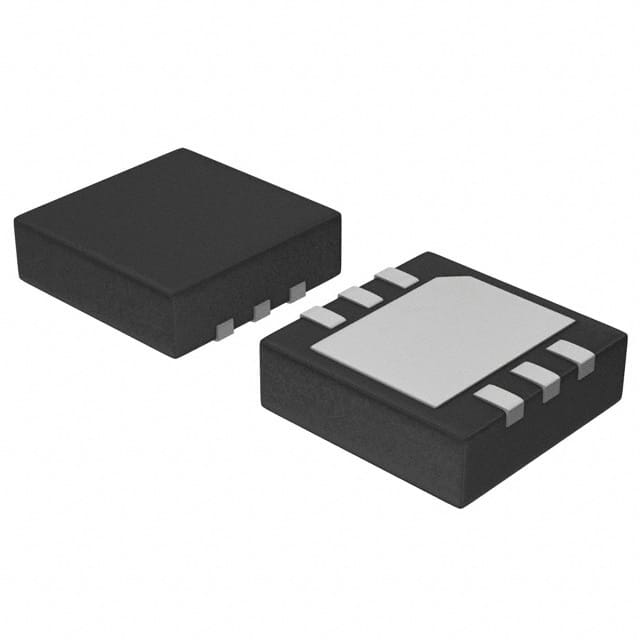

NCP623MN-40R2GIC REG LINEAR 4V 150MA 6DFN |
3,000 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 4V | - | 0.26V @ 150mA | 150mA | 200 µA | - | 70dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (3x3) |
|
NCP623MN-25R2GIC REG LINEAR 2.5V 150MA 6DFN |
3,000 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 2.5V | - | 0.26V @ 150mA | 150mA | 200 µA | - | 70dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (3x3) |
|
|
NCP623MN-28R2GIC REG LINEAR 2.8V 150MA 6DFN |
3,000 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 2.8V | - | 0.26V @ 150mA | 150mA | 200 µA | - | 70dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (3x3) |
|
LP38690SDX-ADJ/NOPBIC REG LINEAR POS ADJ 1A 6WSON |
2,895 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1.25V | 9V | 1.6V @ 1A | 1A | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (3x3) |
|
|
LP38691SDX-3.3/NOPBIC REG LINEAR 3.3V 500MA 6WSON |
3,968 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.55V @ 500mA | 500mA | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-WSON (3x3) |
|
NCV8560SN280T1GIC REG LINEAR 2.8V 150MA 5TSOP |
3,000 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | - | 150mA | 175 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
NCV8560SN130T1GIC REG LINEAR 1.3V 150MA 5TSOP |
2,992 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.3V | - | - | 150mA | 150 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
NCV8560SN350T1GIC REG LINEAR 3.5V 150MA 5TSOP |
2,767 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.5V | - | - | 150mA | 180 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
LP8340ILDX-ADJ/NOPBIC REG LINEAR POS ADJ 1A 6WSON |
4,375 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1.25V | 9.3V | - | 1A | 100 µA | 170 µA | 55dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2.92x3.29) |
|
AP7583Q-FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
2,796 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | 1.2V | 5V | 0.7V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
|
AP7583Q-33FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
2,669 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.7V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
AP130-25YRG-13IC REG LIN 2.5V 300MA SOT89R-3 |
2,500 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.5V @ 300mA | 300mA | 100 µA | - | 58dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89R-3 |
|
|
AP130-33YRG-13IC REG LIN 3.3V 300MA SOT89R-3 |
2,490 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.5V @ 300mA | 300mA | 100 µA | - | 58dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89R-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
