Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP130-18SAG-7IC REG LINEAR 1.8V 300MA SOT23-3 |
2,996 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.5V @ 300mA | 300mA | 100 µA | - | 58dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
NCV8135AMTW040TBGIC REG LINEAR 0.4V 500MA 6WDFN |
2,980 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.4V | - | 0.1V @ 500mA | 500mA | 55 µA | - | 73dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
NCV8135BMTW040TBGIC REG LINEAR 0.4V 500MA 6WDFN |
2,919 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.4V | - | 0.1V @ 500mA | 500mA | 55 µA | - | 73dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
RT9077-80GJ5IC REG LDO 200MA 5TSOT |
2,767 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 8V | - | 1.5V @ 100mA | 200mA | 100 µA | - | - | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
AP130-33WG-7IC REG LINEAR 3.3V 300MA SC59 |
1,680 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.5V @ 300mA | 300mA | 100 µA | - | 58dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-59-3 |
|
RT9059-15GQWIC LDO 3A LOW DROPOUT WDFN-10 |
1,483 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.45V @ 3A | 3A | 1.2 mA | - | - | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WDFN (3x3) |
|
NCV4295CSN33T1GIC REG LINEAR 3.3V 30MA 5TSOP |
8,880 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.25V @ 20mA | 30mA | 170 µA | 4 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
NCP152MX280120TCGIC REG LINEAR 1.2V/2.8V 6XDFN |
4,990 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.25V | 1.2V, 2.8V | - | -, 0.26V @ 150mA | 150mA, 150mA | 100 µA | 200 µA | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
|
XC6203E332MR-GIC REG LINEAR 3.3V 400MA SOT23 |
3,030 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3.3V | - | 0.42V @ 200mA | 400mA | 16 µA | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23 |
|
NCV8164AMTW120TAGLDO 300 MA AD 1.2V ULTRA-LOW NOI |
3,000 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 300mA | 40 µA | - | - | Enable, Power Good | Over Current, Over Temperature | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|
LDQ40PU50RY250 MA LOW DROPOUT LDO |
3,000 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 1V @ 250mA | 250mA | 5 µA | 500 µA | 55dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
LDQ40PU25RY250 MA LOW DROPOUT LDO |
3,000 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 2.5V | - | 1V @ 250mA | 250mA | 5 µA | 500 µA | 55dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|

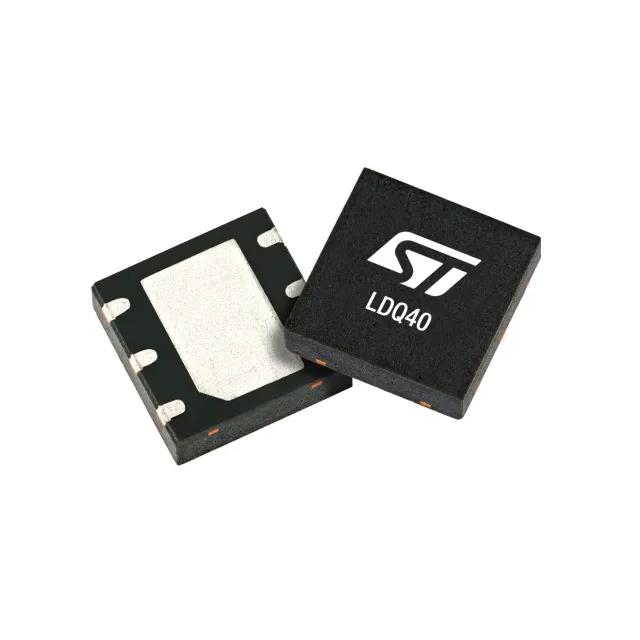

LDQ40PU18RY250 MA LOW DROPOUT LDO |
2,990 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 1.8V | - | 1V @ 250mA | 250mA | 5 µA | 500 µA | 55dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|

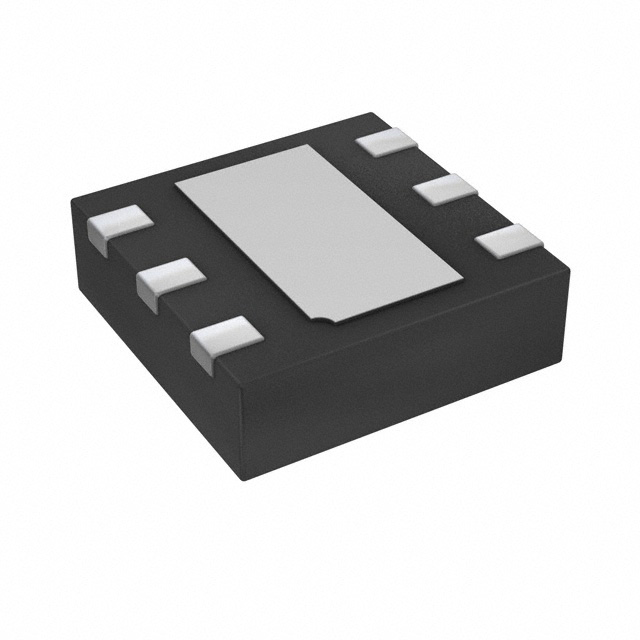

LDQ40PURYLinear IC's |
2,920 |
|
Datasheet | - | 6-WDFN Exposed Pad | Bulk | Active | Positive | Adjustable | 1 | 40V | 1.2V | 12V | 1V @ 250mA | 250mA | 5 µA | 500 µA | 60dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
LP5912Q0.9DRVRQ1IC REG LINEAR 0.9V 500MA 6WSON |
2,760 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 0.9V | - | - | 500mA | 55 µA | 600 µA | 65dB ~ 40dB (100Hz ~ 100kHz) | Enable, Power Good, Soft Start | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (2x2) |
|
|
NCV8164AMTW290TAGLDO 300 MA AD 2.9V ULTRA-LOW NOI |
2,690 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.9V | - | - | 300mA | 40 µA | - | - | Enable, Power Good | Over Current, Over Temperature | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|
RT9069-33GQUIC REG LINEAR 3.3V 200MA 6UDFN |
2,499 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.36V @ 10mA | 200mA | 3.5 µA | 5 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UDFN (1.6x1.6) |
|
|
NCV8164AMTW180TAGLDO 300 MA AD 1.8V ULTRA-LOW NOI |
2,495 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.255V @ 300mA | 300mA | 40 µA | - | - | Enable, Power Good | Over Current, Over Temperature | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|
LDL40PU50RYDFN 6L 2X2X 0.75 PITCH0.65 AG |
300 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 1V @ 200mA | 200mA | 5 µA | 500 µA | 70dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LDQ40PU33RY250 MA LOW DROPOUT LDO |
300 |
|
Datasheet | ECOPACK® | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 1V @ 250mA | 250mA | 5 µA | 500 µA | 55dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
