Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV8164CSN180T1GIC REG LINEAR 1.8V 300MA 5TSOP |
2,815 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5V | 1.8V | - | 0.255V @ 300mA | 300mA | 40 µA | - | 83dB ~ 61dB (100Hz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
BD00IA5JEFJ-E2500MA VARIABLE OUTPUT, HIGH-ACCU |
2,500 |
|
Datasheet | BDxxIA5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 4.5V | 0.6V @ 500mA | 500mA | 500 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
TCR15AG12,LFIC REG LINEAR 1.2V 1.5A 6WCSPF |
5,017 |
|
Datasheet | TCR15AG | 6-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.257V @ 1.5A | 1.5A | 40 µA | - | 95dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 6-WCSPF (0.80x1.2) |
|
BU25TA2WHFV-TRIC REG LINEAR 2.5V 200MA HVSOF5 |
2,990 |
|
Datasheet | - | SOT-665 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.8V @ 200mA | 200mA | 95 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-HVSOF |
|
|
BU31TA2WHFV-TRIC REG LINEAR 3.1V 200MA HVSOF5 |
2,875 |
|
Datasheet | - | SOT-665 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.1V | - | 0.66V @ 200mA | 200mA | 95 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-HVSOF |
|
TPS74801QDRCRM3Q1TPS74801QDRCRM3Q1 |
2,565 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.165V @ 1.5A | 1.5A | 50 µA | - | 60dB ~ 30dB (1kHz ~ 300kHz) | Current Limit | Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | 10-VSON (3x3) |
|
MC78L15ABPRPGIC REG LINEAR 15V 100MA TO92-3 |
1,998 |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body, Formed Leads | Cut Tape (CT) | Active | Positive | Fixed | 1 | 35V | 15V | - | - | 100mA | 6.5 mA | - | 39dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
RTQ2551AGQW(2)IC ULTRA-LOW-DROPOUT LDO ADJ 1A |
1,500 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCV8164CSN280T1GIC REG LINEAR 2.8V 300MA 5TSOP |
6,000 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5V | 2.8V | - | 0.185V @ 300mA | 300mA | 40 µA | - | 83dB ~ 61dB (100Hz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
BD15HC0MEFJ-ME2IC REG LINEAR 1.5V 1A 8HTSOP-J |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.5V | - | 1.2V @ 1A | 1A | 0.6 mA | 1.2 mA | - | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
NCV8752AMX18TCGIC REG LINEAR 1.8V 200MA 6XDFN |
4,870 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 200mA | 25 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
|
NCV8752BMX33TCGIC REG LINEAR 3.3V 200MA 6XDFN |
4,865 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 200mA | 25 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
|
NCV8752BMX18TCGIC REG LINEAR 1.8V 200MA 6XDFN |
4,850 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 200mA | 25 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
|
NCV8752BMX28TCGIC REG LINEAR 2.8V 200MA 6XDFN |
4,004 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | - | 200mA | 25 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
NCP663SQ28T1GIC REG LINEAR 2.8V 100MA SC82AB |
3,190 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.5V @ 100mA | 100mA | 1 µA | 6 µA | - | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-82AB |
|
|
NCV8752AMX28TCGIC REG LINEAR 2.8V 200MA 6XDFN |
3,000 |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | - | 200mA | 25 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
|
NCP663SQ27T1GIC REG LINEAR 2.7V 100MA SC82AB |
2,995 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.7V | - | 0.5V @ 100mA | 100mA | 1 µA | 6 µA | - | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-82AB |
|

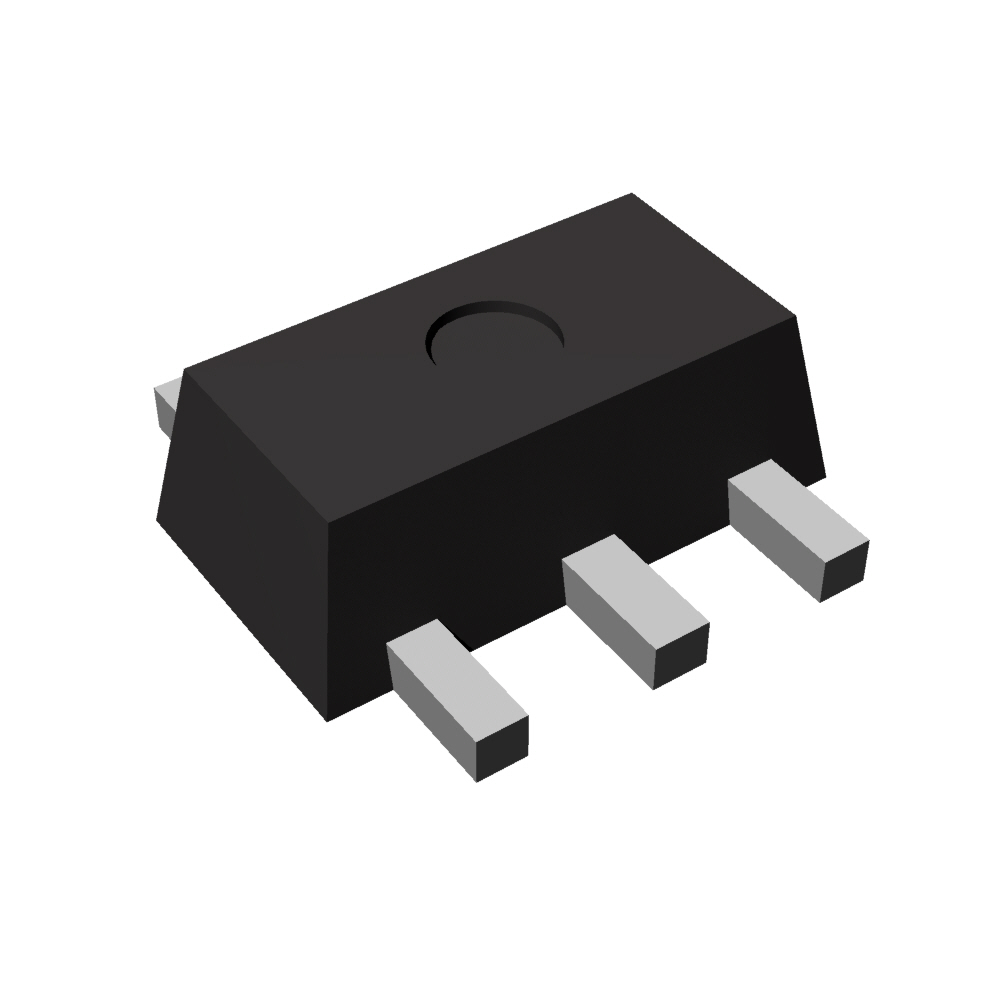

NJW4104U2-05AT1-TE145V IO=200MA ULTRA LOW QUIESCENT |
840 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.46V @ 100mA | 200mA | 13.5 µA | - | 36dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
AP130-33SAG-7IC REG LINEAR 3.3V 300MA SOT23-3 |
3,020 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.5V @ 300mA | 300mA | 100 µA | - | 58dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
NCV8135AMTW120TBGIC REG LINEAR 1.2V 500MA 6WDFN |
3,000 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.1V @ 500mA | 500mA | 55 µA | - | 73dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
