Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV78L05ABPRAGIC REG LINEAR 5V 100MA TO92-3 |
3,997 |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 6 mA | - | 49dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Through Hole | TO-92 (TO-226) |
|
XC6201P222MR-GIC REG LINEAR 2.2V 250MA SOT25 |
3,010 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.2V | - | 0.4V @ 200mA | 250mA | - | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25-5 |
|
TPL710F18-3TRLOW QUIESCENT CURRENT LINEAR REG |
2,995 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.17V @ 200mA | 200mA | 30 µA | - | 55dB ~ 53dB (100Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
TPL710F25-3TRLOW QUIESCENT CURRENT LINEAR REG |
2,974 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.17V @ 200mA | 200mA | 30 µA | - | 55dB ~ 53dB (100Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
TPS7B91018DBVR150MA 40V 1.5A IQ LOW-DROPOUT LI |
2,895 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 1.8V | - | 1.8V @ 150mA | 150mA | 3 µA | 150 µA | 55dB ~ 43dB (10kHz ~ 100kHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
AP7353D-45FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
15,000 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.117V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
AP7353D-18FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
15,000 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.24V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
NCP163AFCT285T2GIC REG LINEAR 2.85V 250MA 4WLCSP |
10,000 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | - | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
|
NCP163AFCT250T2GIC REG LINEAR 2.5V 250MA 4WLCSP |
10,000 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.175V @ 250mA | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
AP7353D-25FS4-7IC REG LIN 2.5V 250MA X2-DFN1010 |
10,000 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.168V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | X2-DFN1010-4 (Type B) |
|
|
AP7353D-28FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
9,980 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.155V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
|
NCP163AFCT180T2GIC REG LINEAR 1.8V 250MA 4WLCSP |
9,731 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.25V @ 250mA | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
LP5910-0.9YKARIC REG LINEAR 0.9V 300MA 4DSBGA |
5,975 |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 0.9V | - | - | 300mA | 25 µA | 350 µA | 80dB ~ 25dB (100Hz ~ 2MHz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA |
|
|
LP5910-1.825YKARIC REG LINEAR 1.8V 300MA 4DSBGA |
5,918 |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 1.8V | - | 0.37V @ 300mA | 300mA | 25 µA | 350 µA | 80dB ~ 25dB (100Hz ~ 2MHz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA |
|
AP7341-33FS4-7IC REG LINEAR 3.3V 300MA 4DFN |
5,000 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.65V @ 300mA | 300mA | 50 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1010-4 |
|
|
AP7353D-285FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
5,000 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.155V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
|
AP7353D-33FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
4,940 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.142V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
NCP110AFCT085T2GIC REG LINEAR 0.85V 200MA 4WLCSP |
3,900 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.85V | - | - | 200mA | 25 µA | - | 90dB ~ 55dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|

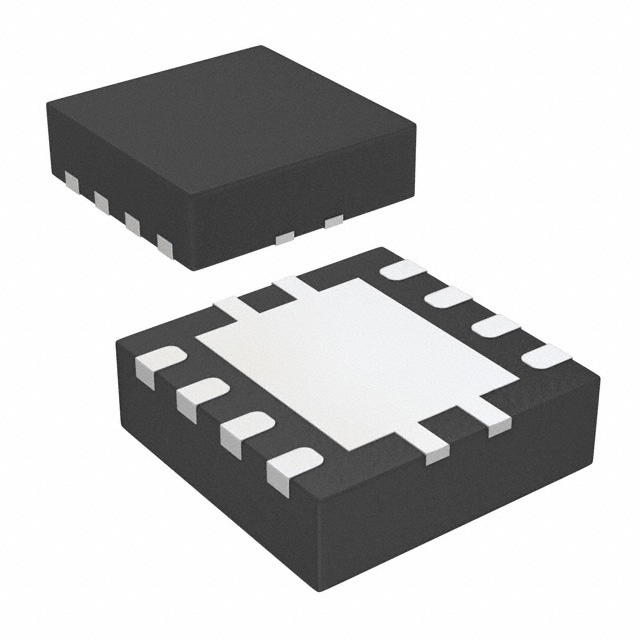

TPS73730DRBRM31A ultra-low-dropout voltage re |
3,000 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.25V @ 1A | 1A | - | 880 µA | 58dB ~ 37dB (100Hz ~ 1kHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
|
|
TPS73718DRBRM31A ultra-low-dropout voltage reg |
3,000 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.25V @ 1A | 1A | - | 880 µA | 58dB ~ 37dB (100Hz ~ 1kHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
