Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPL740F30-5TRLINEAR VOLTAGE REGULATOR IC FIXE |
3,000 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.4V @ 500mA | 500mA | 200 µA | - | 60dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPL740F33-5TRLINEAR VOLTAGE REGULATOR IC FIXE |
2,990 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.4V @ 500mA | 500mA | 200 µA | - | 60dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
TPL720F33-3TRLOW QUIESCENT CURRENT LINEAR REG |
2,809 |
|
Datasheet | TPL720 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 400mA | 400mA | - | - | 55dB ~ 53dB (100Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
AP7370-15Y-13IC REG LINEAR 1.5V 300MA SOT89-3 |
2,490 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 18V | 1.5V | - | - | 300mA | 2.5 µA | 300 µA | - | - | Over Current, Over Temperature, Reverse Current, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
AP7370-18Y-13IC REG LINEAR 1.8V 300MA SOT89-3 |
2,460 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 18V | 1.8V | - | - | 300mA | 2.5 µA | 300 µA | - | - | Over Current, Over Temperature, Reverse Current, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
RT9078-18GQZIC REG LINEAR 1.8V 300MA 4ZQFN |
1,125 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.42V @ 300mA | 300mA | 4 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-ZQFN (1x1) |
|
TPS72010QDRVRQ1IC REG LINEAR 1V 350MA 6WSON |
3,000 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 4.5V | 1V | - | 0.2V @ 350mA | 350mA | 38 µA | 80 µA | 85dB ~ 50dB (10Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (2x2) |
|
TCR3DG10,LFIC REG LINEAR 1V 300MA 4WCSPE |
5,000 |
|
Datasheet | TCR3DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.75V @ 300mA | 300mA | 65 µA | 78 µA | 70dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
|
TCR3DG12,LFIC REG LINEAR 1.2V 300MA 4WCSPE |
5,000 |
|
Datasheet | TCR3DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.6V @ 300mA | 300mA | 65 µA | 78 µA | 70dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
|
TCR3DG32,LFIC REG LINEAR 3.2V 300MA 4WCSPE |
5,000 |
|
Datasheet | TCR3DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.2V | - | 0.215V @ 300mA | 300mA | 65 µA | 78 µA | 70dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
NCP145CMX120TCGIC REG LINEAR 1.2V 500MA 4XDFN |
5,000 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.25V @ 500mA | 500mA | - | 110 µA | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1.2x1.2) |
|

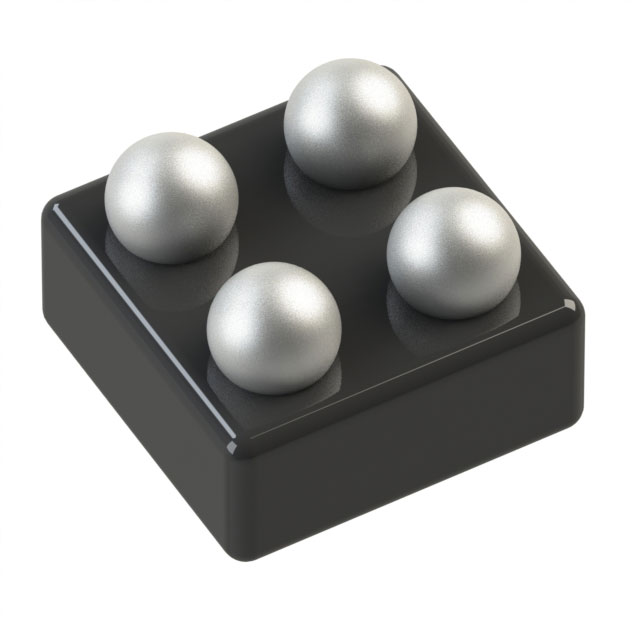

TCR3DG25,LFPB-F CMOS POINT DDRULATOR (SINGL |
5,000 |
|
Datasheet | TCR3DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.275V @ 300mA | 300mA | - | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
|
TCR3DG285,LFPB-F CMOS POINT DDRULATOR (SINGL |
5,000 |
|
Datasheet | TCR3DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.235V @ 300mA | 300mA | - | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
|
TCR3DG28,LFPB-F CMOS POINT DDRULATOR (SINGL |
5,000 |
|
Datasheet | TCR3DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.235V @ 300mA | 300mA | - | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
|
TCR3DG30,LFPB-F CMOS POINT DDRULATOR (SINGL |
5,000 |
|
Datasheet | TCR3DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.235V @ 300mA | 300mA | - | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
|
TCR3DG33,LFIC REG LINEAR 3.3V 300MA 4WCSPE |
4,967 |
|
Datasheet | TCR3DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.215V @ 300mA | 300mA | 65 µA | 78 µA | 70dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
|
TCR3DG36,LFPB-F CMOS POINT DDRULATOR (SINGL |
4,950 |
|
Datasheet | TCR3DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.185V @ 300mA | 300mA | - | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
LDI812C-3.3SFAVR SOT-23-5 16V 3.234V 3.366V 85 |
2,998 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.41V @ 10mA | 50mA | 1.8 µA | - | - | - | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
AP7366EA-28W5-7LDO CMOS HICURR SOT25 T&R 3K |
2,965 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.35V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
AP7366EA-10W5-7LDO CMOS HICURR SOT25 T&R 3K |
2,955 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1V | - | 1.2V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
