Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP5907UVX1.825-SPROTOTYPE |
4,142 |
|
Datasheet | - | 4-XFBGA, DSBGA | Bulk | Active | Positive | Fixed | 1 | 5.5V | 1.825V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 4-DSBGA |
|
|
LM2931CMX/SL162913PROTOTYPE |
4,062 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Adjustable | 1 | 26V | 3V | 24V | 0.6V @ 100mA | 100mA | 1 mA | 15 mA | - | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LM117GW-QMLPROTOTYPE |
2,884 |
|
Datasheet | - | 16-CSOIC (0.241", 6.12mm Width) | Bulk | Active | Positive | Adjustable | 1 | 41.25V | 1.2V | 37V | - | 500mA | 3 mA | - | 65dB ~ 60dB (2.4kHz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-CFP |
|
|
LM2931AMX-5.0/SL162905PROTOTYPE |
1,233 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 30 mA | 80dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LM2936MX-5.0/S7002394PROTOTYPE |
4,513 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

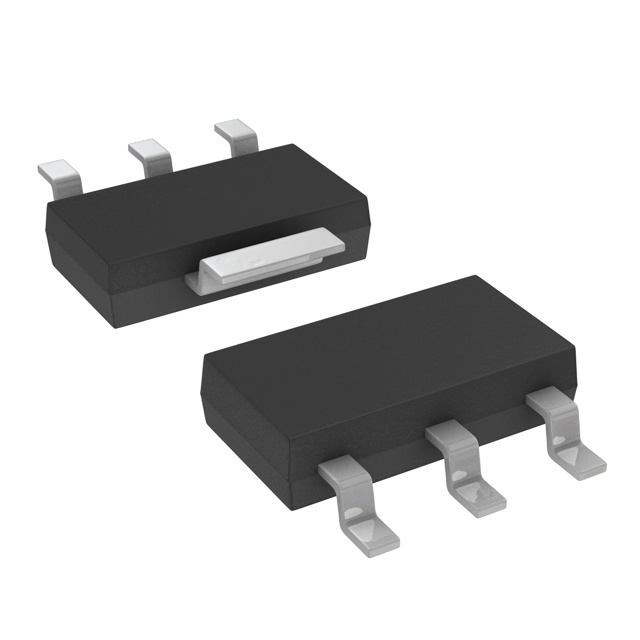

LM1117IMP-ADJ/S1PROTOTYPE |
1,866 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Adjustable | 1 | 15V | 1.25V | 13.8V | 1.4V @ 800mA | 800mA | 5 mA | - | - | Current Limit | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
|
LP2951ACMX/E7001866PROTOTYPE |
2,794 |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LP2951ACMX-3.3/E7001834PROTOTYPE |
3,370 |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LM117HVK-QMLPROTOTYPE |
3,471 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Adjustable | 1 | 60V | 1.2V | 57V | 1.5V @ 1.5A | 1.5A | 8.2 mA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Through Hole | TO-3-2 |
|
|
LM1117IDTX-ADJ/J7002947PROTOTYPE |
2,245 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Positive | Fixed | 1 | 15V | 1.25V | 13.8V | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252 |
|
|
LM117H/883/MABIPROTOTYPE |
3,811 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Adjustable | 1 | 41.25V | 1.2V | 37V | - | 500mA | 100 µA | - | - | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-3 |
|
|
LP3965ES-18-AUPROTOTYPE |
3,323 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Obsolete | Positive | Fixed | 1 | 7V | 1.8V | - | 0.55V @ 1.5A | 1.5A | 10 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|

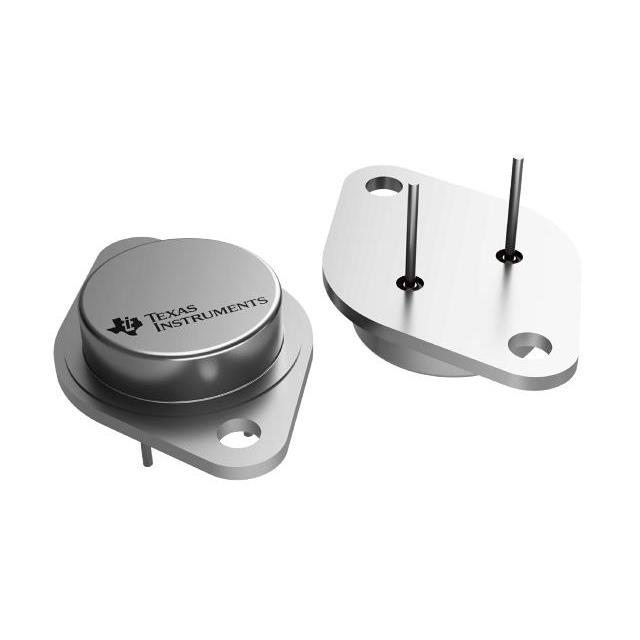

M38510/11804SYASPACE GRADE -4.2-V TO -40-V, 1.5 |
4,180 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | 5 mA | - | 48dB (2.4kkHz) | Current Limit | Over Current, Over Temperature | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3-2 |
|
M38510/10201SCASPACE-GRADE, 9.5-V TO 40-V, 150- |
1,932 |
|
Datasheet | - | 14-CDIP (0.300", 7.62mm) | Tube | Active | Positive | Adjustable | 1 | 40V | 2V | 37V | - | 150mA | - | - | 64dB ~ 74dB (10kHz) | Current Limit | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
|

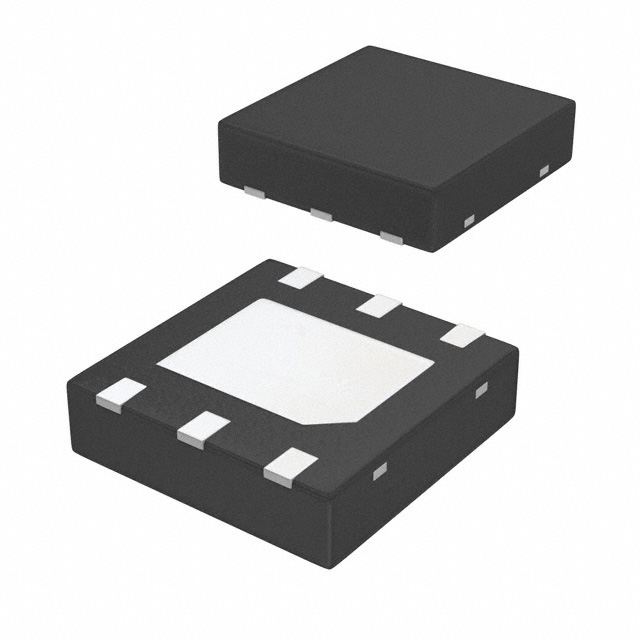

LP38690SD-ADJ/J7002355PROTOTYPE |
4,120 |
|
Datasheet | - | 6-WDFN Exposed Pad | Bulk | Active | Positive | Adjustable | 1 | 10V | 1.8V | 5V | 1.3V @ 1A | 1A | 100 µA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (3x3) |
|
|
LP3878SD-ADJ/J7002766PROTOTYPE |
1,805 |
|
Datasheet | - | 8-WDFN Exposed Pad | Bulk | Active | Positive | Programmable | 1 | 6V | 1V | 1.2V | - | 800mA | 225 µA | 10 mA | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WSON (4x4) |
|
LP2985IM5X-3.3/S5001421PROTOTYPE |
3,665 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.18V @ 150mA | 150mA | 125 µA | - | 78dB ~ 45dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM2937-80KTTRPROTOTYPE |
3,912 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Bulk | Active | Positive | Fixed | 1 | 26V | 8V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | Current Limit | Mirror-Image Insertion, Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 85°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LM1086ISX-5.0PROTOTYPE |
3,566 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Bulk | Obsolete | Positive | Fixed | 1 | 25V | 5V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | 68dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|

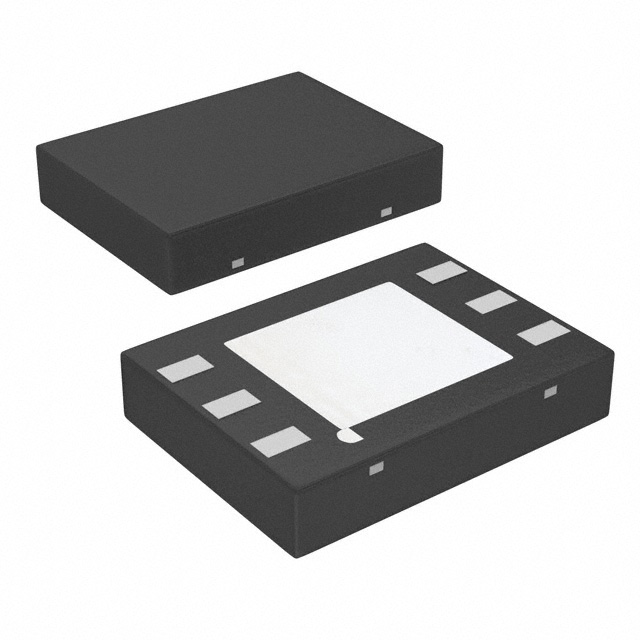

LP8340ILDX-ADJ/AULFPROTOTYPE |
1,093 |
|
Datasheet | - | 6-WDFN Exposed Pad | Bulk | Active | Positive | Adjustable | 1 | 10V | 1.25V | 9.3V | 1V @ 1A | 1A | 50 µA | 170 µA | 55dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2.92x3.29) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
