Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM317AT/E7001847PROTOTYPE |
1,037 |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LM317MQDCYRBOPROTOTYPE |
3,586 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 500mA | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
|
LM2937-80DCYRPROTOTYPE |
1,816 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 26V | 8V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | Current Limit | Mirror-Image Insertion, Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
|
LM117K/883/MABIPROTOTYPE |
1,325 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Adjustable | 1 | 41.25V | 1.2V | 37V | - | 1.5A | 100 µA | - | - | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-3-2 |
|
|
LM137HVK MD81.5A -50V INPUT CAPABLE ADJUSTAB |
4,176 |
|
Datasheet | - | Die | Tube | Active | Negative | Adjustable | 1 | 50V | -1.2V | -37V | - | 1.5A | 5 mA | - | 77dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
LM2941SX/S4000103PROTOTYPE |
3,906 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Obsolete | Positive | Adjustable | 1 | 26V | 5V | 20V | 1V @ 1A | 1A | 20 mA | 60 mA | - | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP5907UVE-2.7/NOPBPROTOTYPE |
2,004 |
|
Datasheet | - | 4-XFBGA, DSBGA | Bulk | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 4-DSBGA |
|
LM2936MX-5.0/ELDB1758PROTOTYPE |
1,300 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 2.5 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
LM2936MX-5.0/NAK1PROTOTYPE |
3,487 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
LM1086CSX-3.3/J7001710PROTOTYPE |
4,539 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | Positive | Fixed | 1 | 29V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
LM2941SX/E7002441PROTOTYPE |
3,234 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Active | Positive | Adjustable | 1 | 26V | 5V | 20V | 0.2V @ 100mA | 1A | 20 mA | - | - | Enable | Mirror-Image Insertion, Over Current, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|

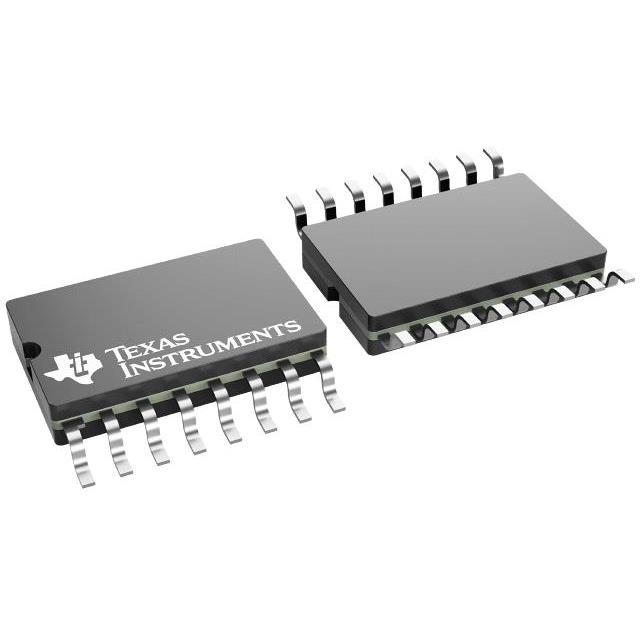

LM2941GW/8831A LOW DROPOUT ADJUSTABLE REGULA |
1,553 |
|
Datasheet | - | 16-CSOIC (0.241", 6.12mm Width) | Tray | Active | Positive | Adjustable | 1 | 26V | 5V | 20V | 1V @ 1A | 1A | - | 60 mA | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-CFP |
|
|
LM317T/E7001848PROTOTYPE |
1,065 |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM9071SX/S5000467PROTOTYPE |
3,666 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.8V @ 250mA | 250mA | 4 mA | 50 mA | - | Enable, Reset | Load Dump, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|

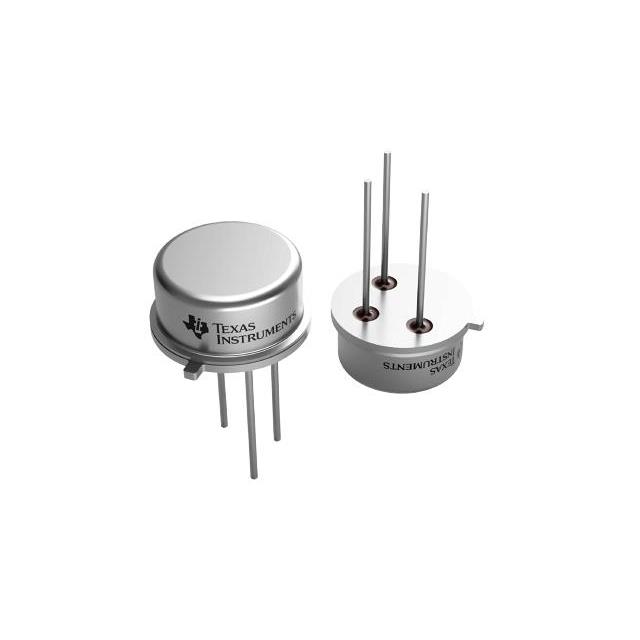

LM137HVH/8831.5A -50V INPUT CAPABLE ADJUSTAB |
2,134 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Adjustable | 1 | 50V | -1.2V | -37V | - | 1.5A | 5 mA | - | 77dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3 |
|
LP2951CMX/SL109753PROTOTYPE |
2,674 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Programmable | 1 | 30V | 1.24V | 29V | 0.6V @ 100mA | 100mA | 140 µA | 14 mA | - | Enable, Error Flag | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LP2953 MDSSPACE-GRADE QMLV, -20-V TO 30-V, |
1,969 |
|
Datasheet | - | Die | Tube | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.23V (5V) | 29V | 0.8V @ 250mA | 250mA | 28 mA | - | - | Current Limit, Enable, Error Flag | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
LM1086IT-ADJ/S5002151PROTOTYPE |
4,822 |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Adjustable | 1 | 29V | 1.25V | 27.5V | 1.5V @ 1.5A | 1.5A | 10 mA | - | - | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
LP3985IM5X-3.3/E5002286PROTOTYPE |
1,203 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.1V @ 150mA | 550mA | 150 µA | 200 µA | 50dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
JM38510/11804SYASPACE GRADE -4.2-V TO -40-V, 1.5 |
2,550 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | 5 mA | - | 48dB (2.4kkHz) | Current Limit | Over Current, Over Temperature | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3-2 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
